Radxa Cubie A5E

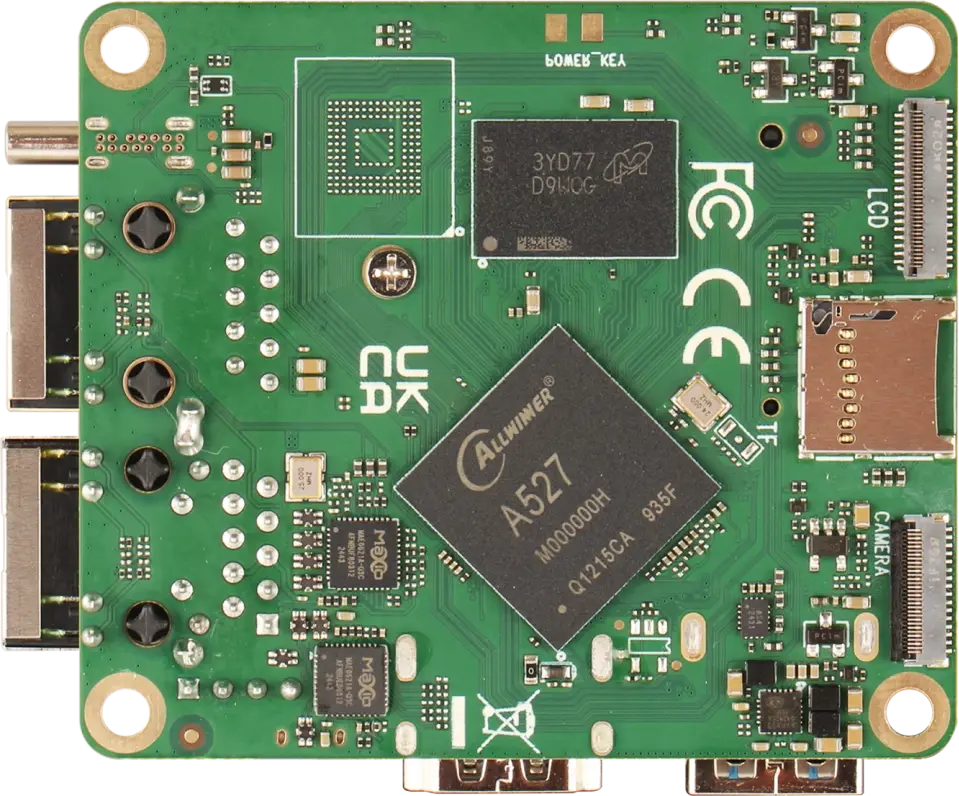

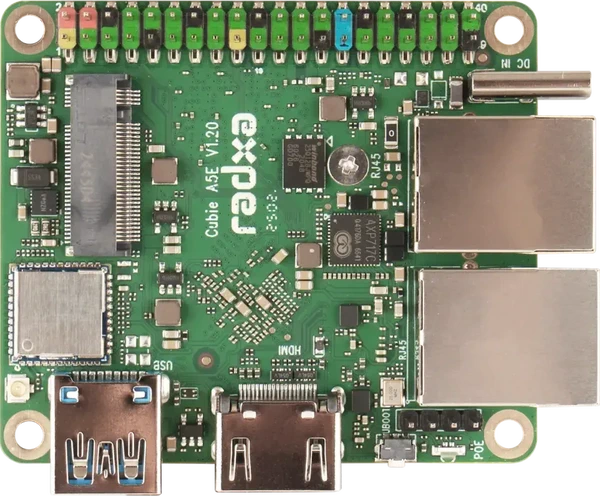

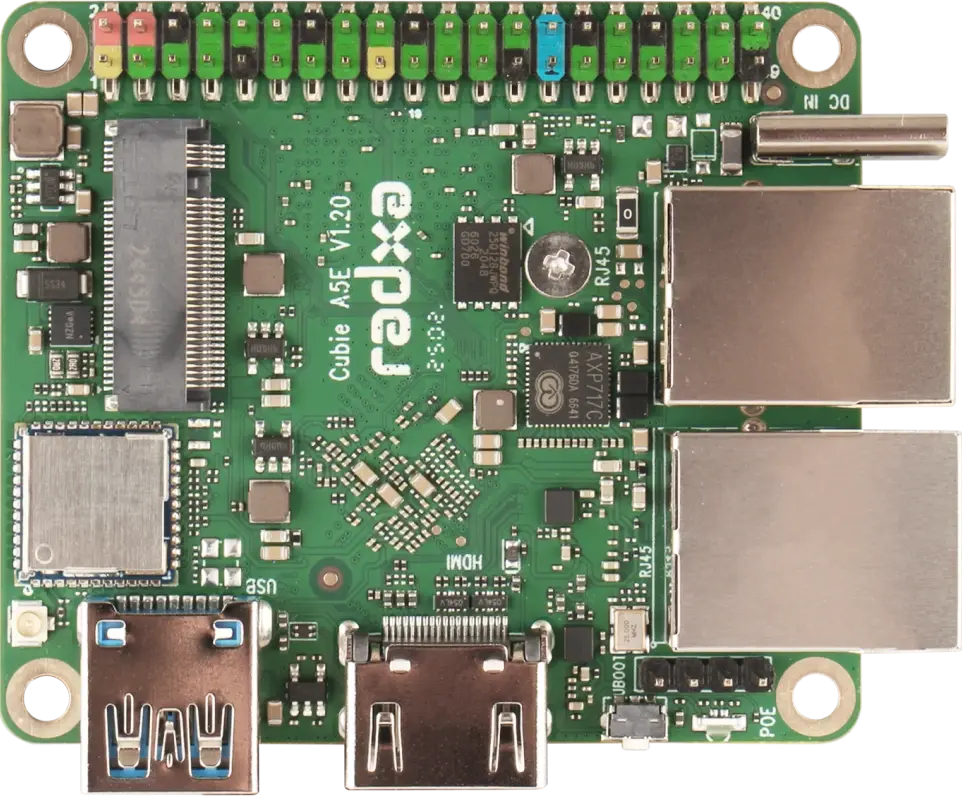

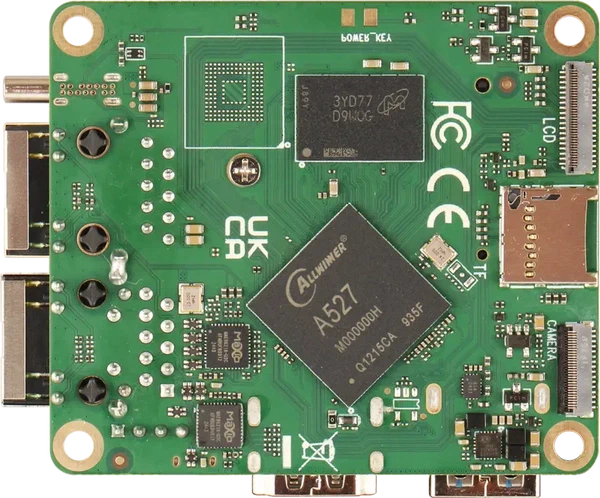

Board Pictures

Hardware

Specs
SoCAllwinner A527 / T527
CPU8× Cortex-A55 (Armv8.2-A) @ 2 GHz
MemoryLPDDR4 / LPDDR4X
GPUMali-G57
Vendor: OpenGL ES 3.2, Vulkan 1.1, OpenCL 2.0
Mesa: OpenGL 3.1, OpenGL ES 3.1, OpenCL 3.0 (Panfrost, Rusticl, Panfrost kernel)
NPU2 TOPS
Supports INT8 / INT16 / FP16
T527 variant only
VPUDecode: 4K@60fps H.264, H.265, VP9
Encode: 1080p@60fps H.264, H.265
SoC pageAllwinner A527 / T527

Interfaces

BoardRadxa Cubie A5E
MemoryLPDDR4 / LPDDR4X
1 / 2 / 4 GB
Camera1× 4-lane MIPI CSI, 2× 2-lane MIPI CSI
Display1× HDMI (4K@60), 1× 4-lane MIPI DSI
StorageSPI flash, microSD, Optional eMMC (0, 8, 16, or 32 GB), M.2 M-Key (2230) NVMe SSD
USB1× USB 3.0 Type-A (host)
1× USB 2.0 Type-C (OTG, 5V power input)
Ethernet2× 1 GbE (one PoE capable (requires external PoE HAT), other non-PoE)
Wi-FiWi-Fi 6
Bluetooth5.4
GPIO40-pin header (UART, SPI, I2C, …)
PowerUSB Type-C (5 V)
PoE (with PoE HAT)
5V via GPIO pins 2 and 4

Available OS images

Benchmarks

SBCwiki.com does not have any benchmark data for Radxa Cubie A5E yet. Check sbc.compare for results.

Guides

Articles
