Radxa Cubie A7A#

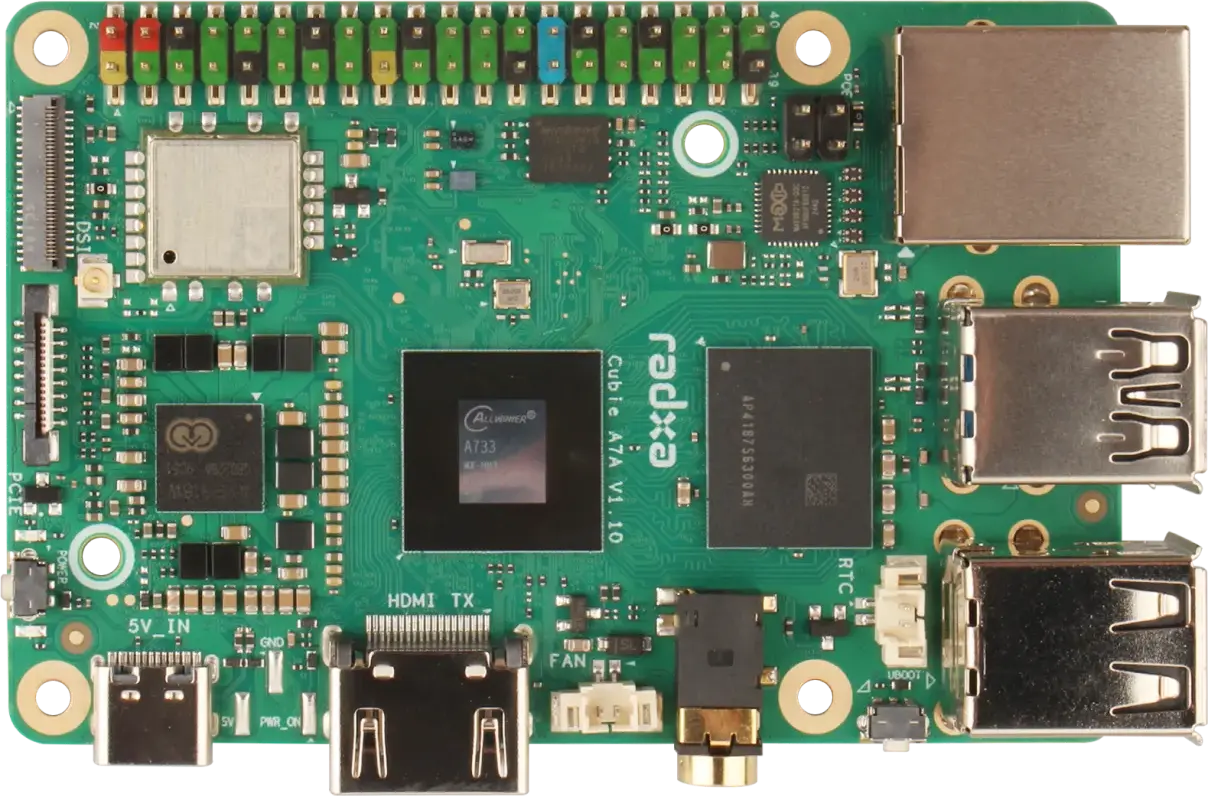

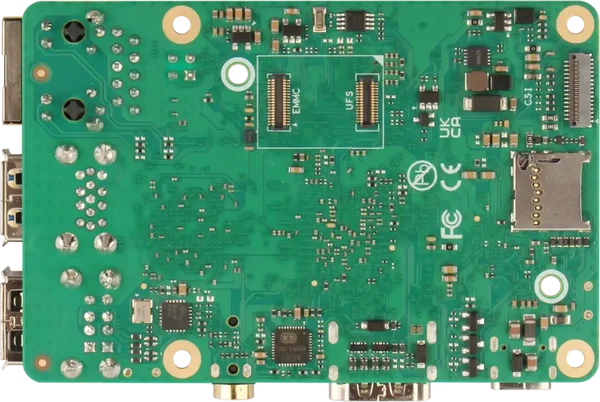

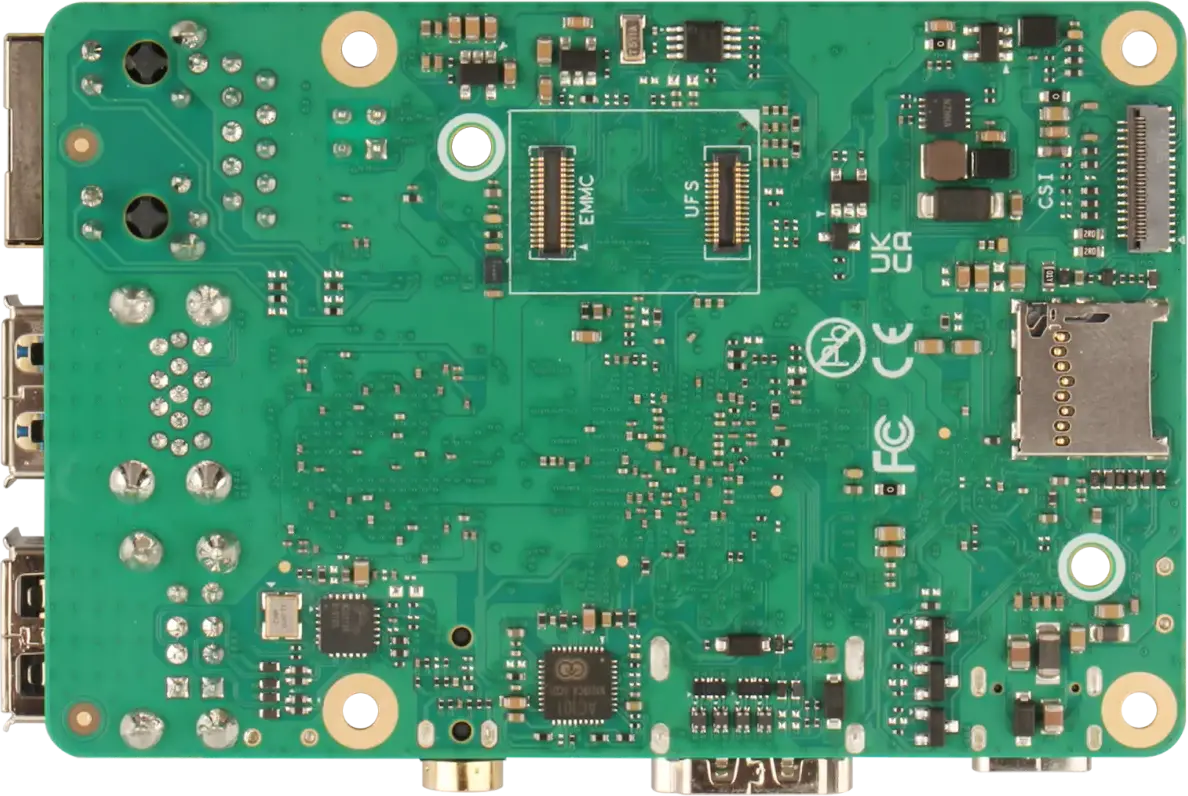

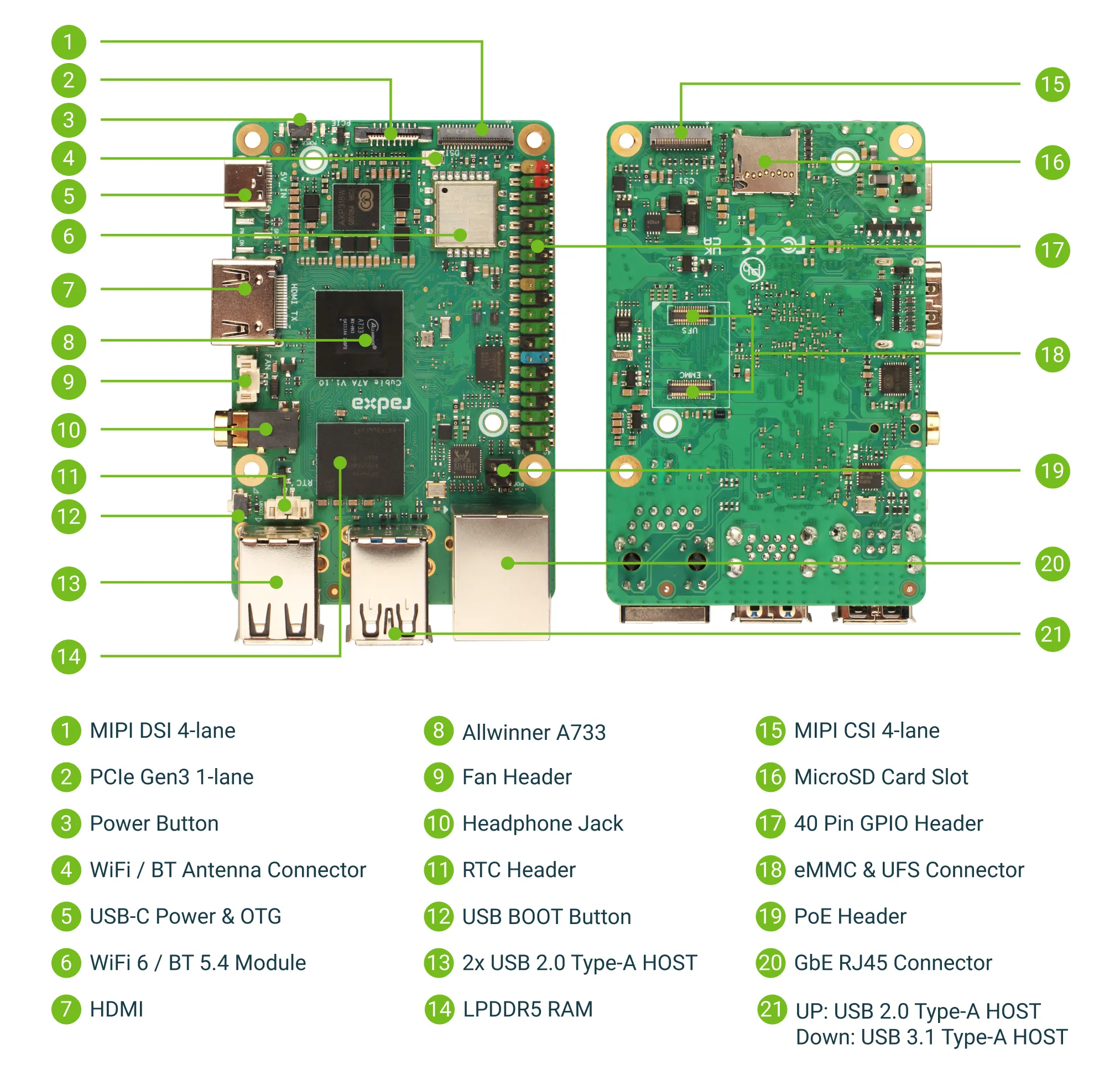

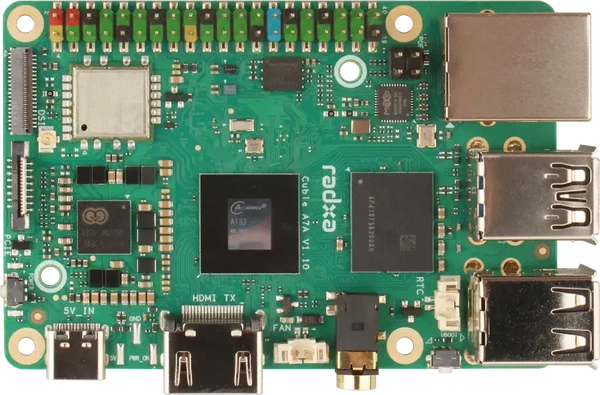

Board Pictures#
Hardware#
Specs
| SoC | Allwinner A733 |
|---|---|
| CPU | Octa-core hybrid: 2× ARM Cortex-A76 (up to 2.0GHz) 6× ARM Cortex-A55 (up to 1.8GHz) |
| RAM | LPDDR5 - Configurations: 2GB / 4GB / 8GB / 16GB |
| GPU | Imagination BXM-4-64 MC1 - OpenGL ES 3.2 - Vulkan 1.3 - OpenCL 3.0 |
| NPU | 3 TOPS AI acceleration engine - Supports INT8/INT16/FP16 |
Interfaces#
| I/O | Description |
|---|---|
| Wireless | Wi-Fi 6, Bluetooth 5.4 |
| Ethernet | 1x Gigabit Ethernet port (PoE capable) |
| USB | 1x USB 3.1 Type-A HOST USB 2.0 ports USB Type-C OTG |
| Video | 1x HDMI port (up to 4K@60Hz) 1× MIPI DSI |
| Camera | 1× 4-lane MIPI CSI 2× 2-lane MIPI CSI |
| Storage | 8MB SPI NOR Flash MicroSD card slot eMMC/UFS module support |
| Power | USB Type-C power input PoE power supply (with PoE HAT) |
| GPIO | 40-Pin GPIO Header (UART, SPI, I2C, etc.) |
| PCIe | PCIe 3.0 FPC connector |
