Radxa Cubie A7Z#

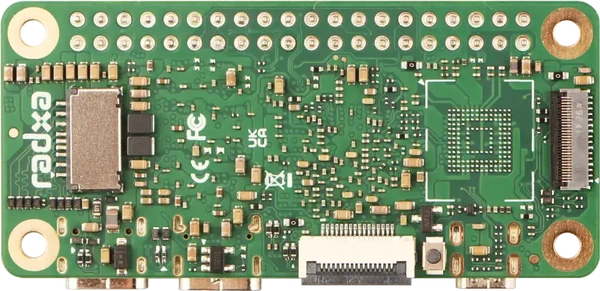

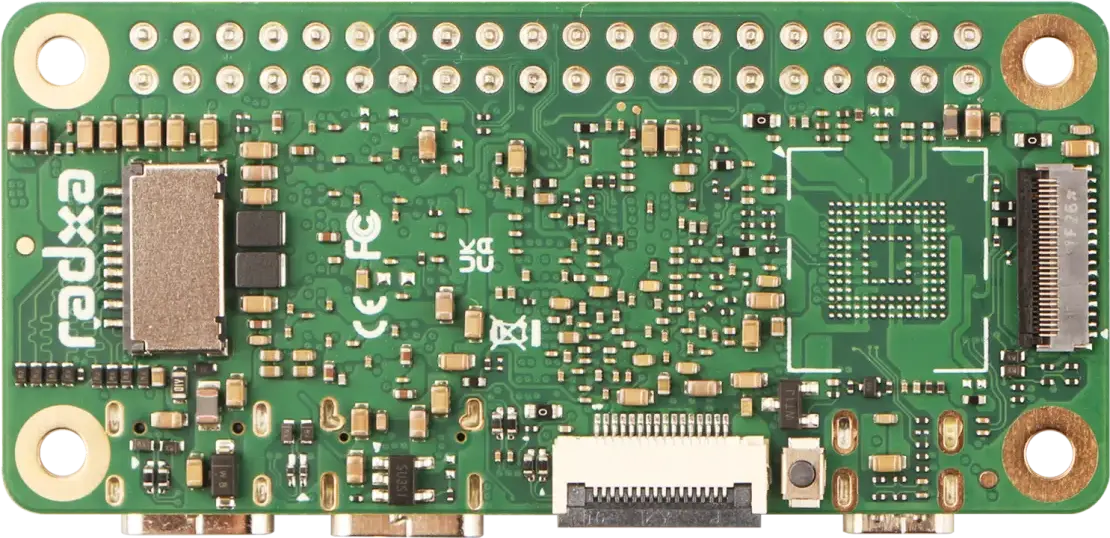

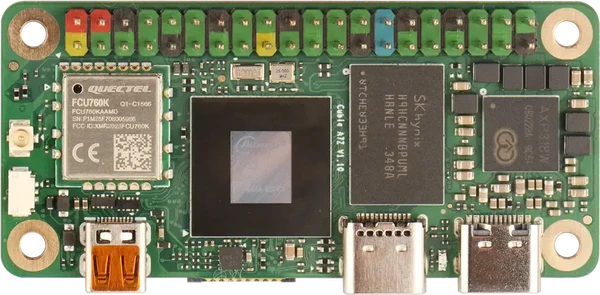

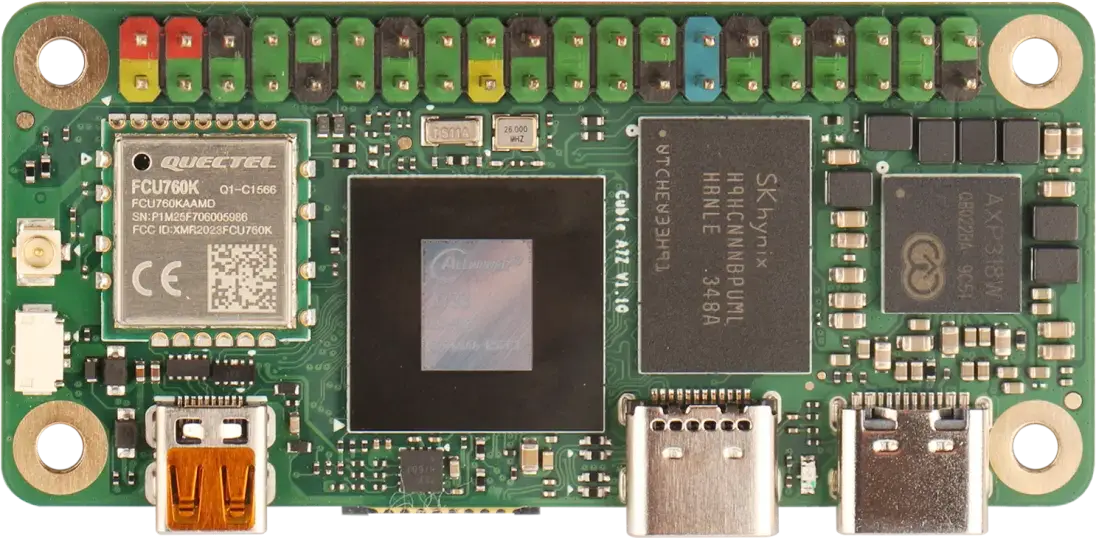

Board Pictures#
Hardware#
Specs
| SoC | Allwinner A733 |
|---|---|
| CPU | Octa-core hybrid: 2× ARM Cortex-A76 (up to 2.0GHz) 6× ARM Cortex-A55 (up to 1.8GHz) |
| RAM | LPDDR4/4X - Configurations: 1GB / 2GB / 4GB / 8GB / 16GB |
| GPU | Imagination BXM-4-64 MC1 - OpenGL ES 3.2 - Vulkan 1.3 - OpenCL 3.0 |
| NPU | 3 TOPS AI acceleration engine - Supports INT8/INT16/FP16 |

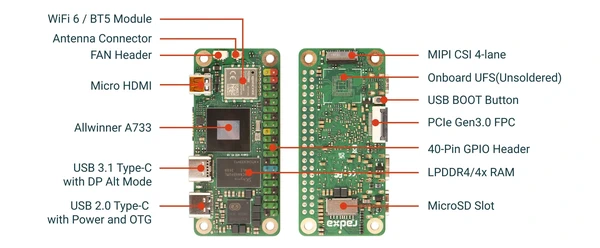

Interfaces#
| I/O | Description |
|---|---|
| Wireless | Onboard Wi-Fi 6, Bluetooth 5.4 |
| Ethernet | Gigabit Ethernet via optional HAT |
| USB | 1x USB-C 3.0 with DisplayPort Alt Mode USB 2.0 ports |
| Video | Micro HDMI (up to 4K@60Hz) USB-C DisplayPort Alt Mode |
| Camera | MIPI CSI interfaces |
| Storage | Optional onboard UFS (up to 1TB) MicroSD card slot |
| Power | USB Type-C power input |
| GPIO | GPIO Header |
| Other | Ultra-compact 65×30mm form factor |
