Amlogic A311D
General Specifications
Specs
| SoC | Amlogic A311D |
|---|---|
| Process | 12 nm |
| CPU | 4× Cortex-A73 @ 2.2 GHz (big) 2× Cortex-A53 @ 1.8 GHz (LITTLE) |
| Memory | LPDDR4 / LPDDR4X |
| GPU | Mali-G52 MP4 @ 800 MHz Vendor: OpenGL ES 1.1/2.0/3.2, Vulkan 1.1, OpenCL 2.0 Mesa: OpenGL 3.1, OpenGL ES 3.1, Vulkan 1.3, OpenCL 3.0 (Panfrost, PanVK, Rusticl, Panfrost kernel) |
| NPU | Amlogic NPU, 5 TOPS (INT8) |
| VPU | Decode: 4K@60fps H.265, VP9, AVS2 Encode: 1080p@60fps H.264, H.265 |
| ISP | up to 8 MP |
Linux Support
Mainline kernel
- Fully supported
- Works but not all features are implemented.

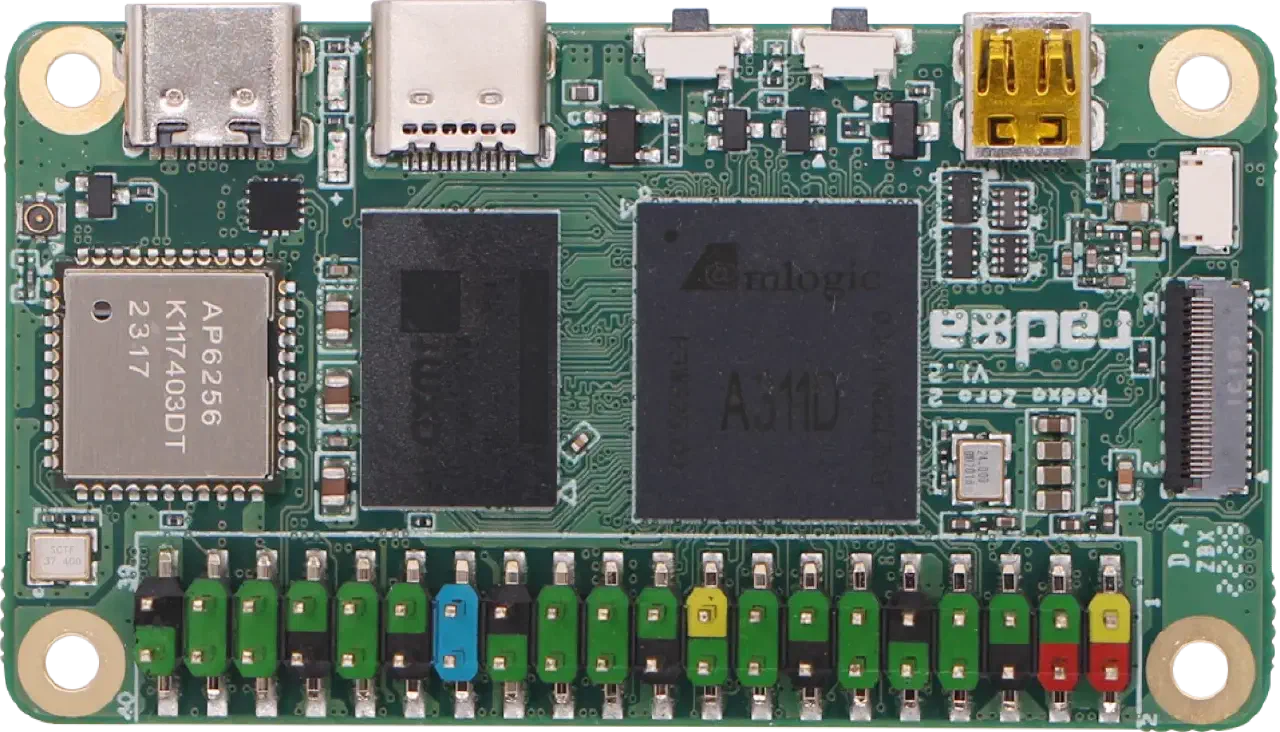

Boards with A311D
List of boards:
