Radxa ZERO 2 Pro

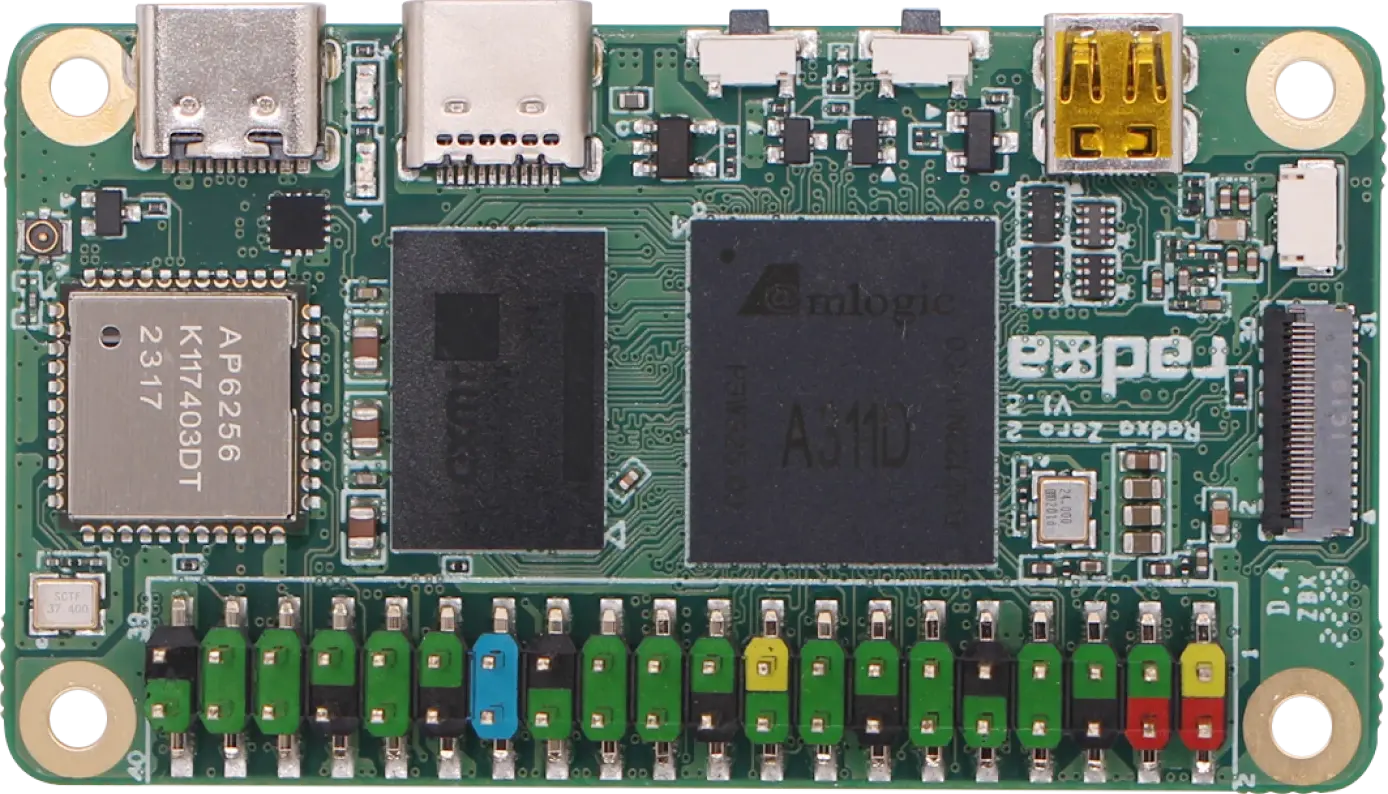

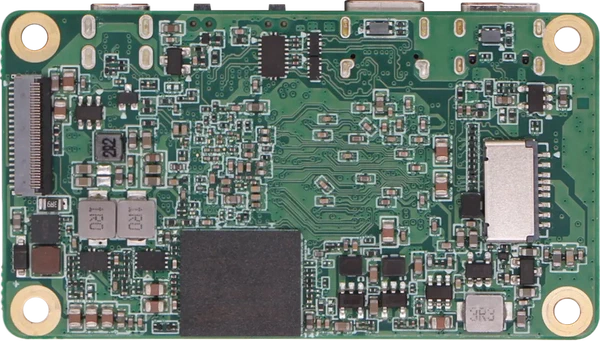

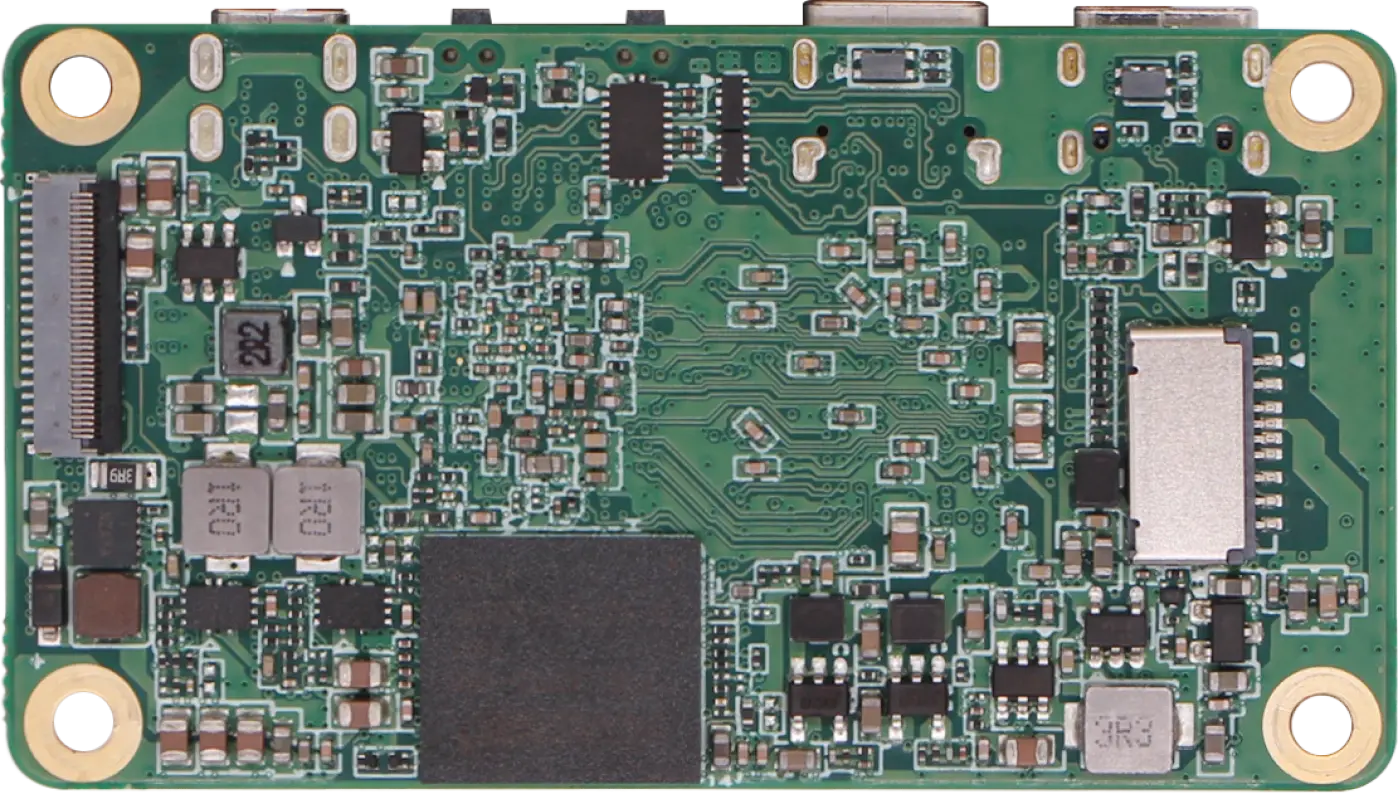

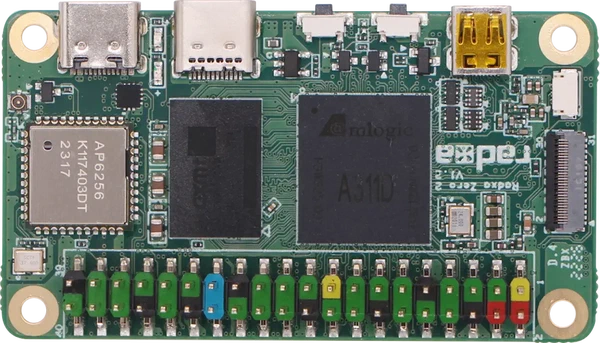

Board Pictures
Hardware
Specs
| SoC | Amlogic A311D |
|---|---|
| Process | 12 nm |
| CPU | 4× Cortex-A73 @ 2.2 GHz (big) 2× Cortex-A53 @ 1.8 GHz (LITTLE) |
| Memory | LPDDR4 / LPDDR4X |
| GPU | Mali-G52 MP4 @ 800 MHz Vendor: OpenGL ES 1.1/2.0/3.2, Vulkan 1.1, OpenCL 2.0 Mesa: OpenGL 3.1, OpenGL ES 3.1, Vulkan 1.3, OpenCL 3.0 (Panfrost, PanVK, Rusticl, Panfrost kernel) |
| NPU | Amlogic NPU, 5 TOPS (INT8) |
| VPU | Decode: 4K@60fps H.265, VP9, AVS2 Encode: 1080p@60fps H.264, H.265 |
| ISP | up to 8 MP |
| SoC page | Amlogic A311D |
Interfaces
| Board | Radxa ZERO 2 Pro |
|---|---|
| Memory | LPDDR4 4 GB |
| Camera | 1× MIPI CSI |
| Display | Micro HDMI (4K@60), 4-channel MIPI DSI |
| Storage | microSD card slot, Optional onboard eMMC module (16 / 32 / 64 GB) |
| USB | 1× USB 2.0 Type-C (OTG, power & data) 1× USB 3.0 Type-C (host) |
| Wi-Fi | Wi-Fi 5 (802.11 b/g/n/ac), external antenna |
| Bluetooth | 5.0 with BLE |
| GPIO | 40-pin header |
| Power | USB Type-C (5 V / 2 A) |
| Cooling | 3-pin fan header (5 V) |
| Dimensions | 65 × 37 mm |
