Radxa ZERO

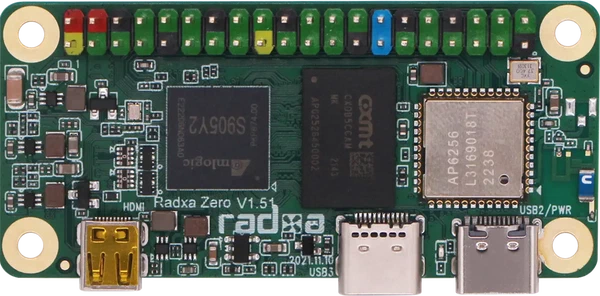

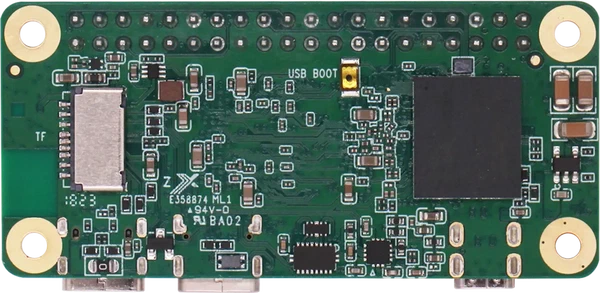

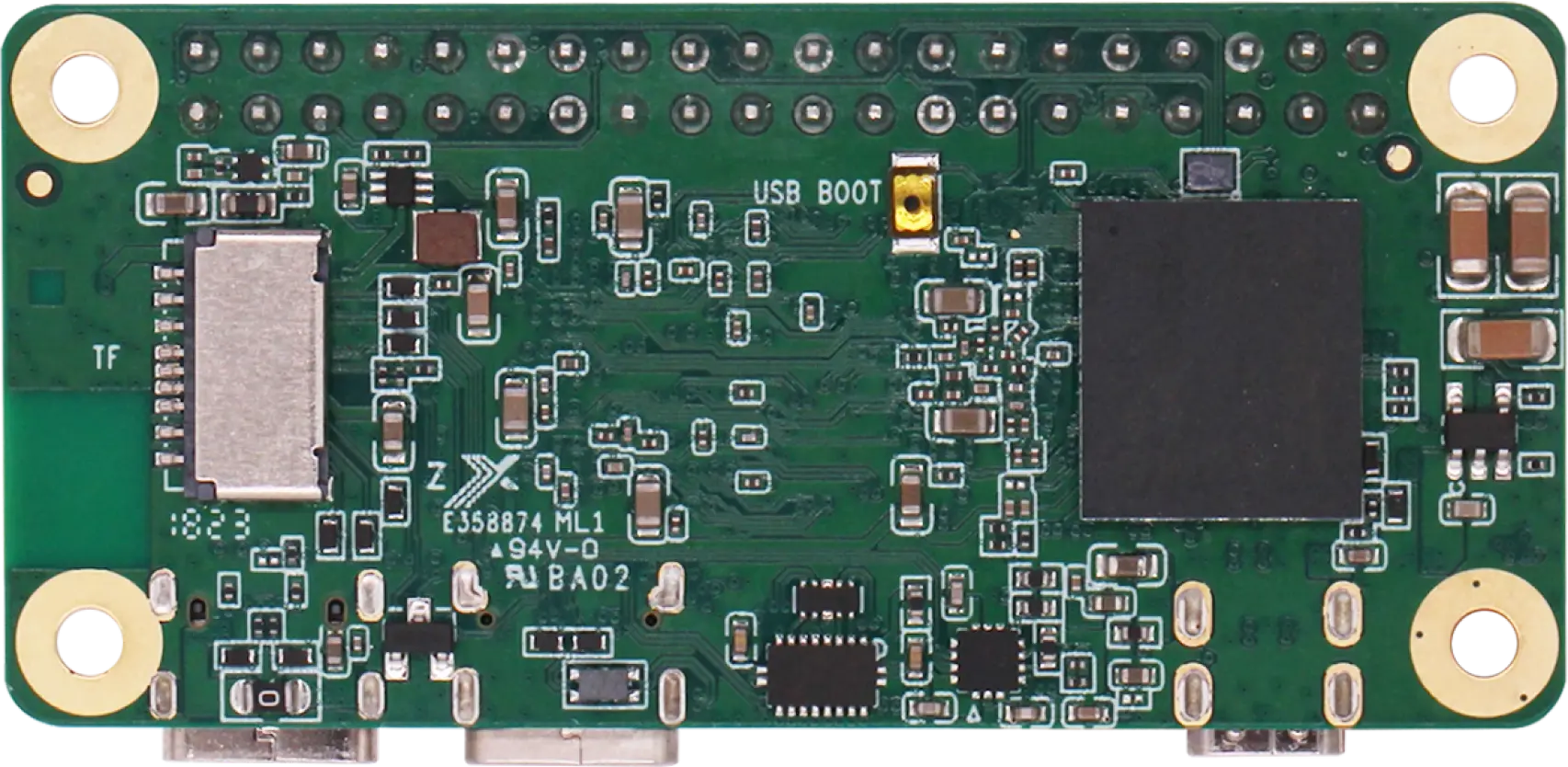

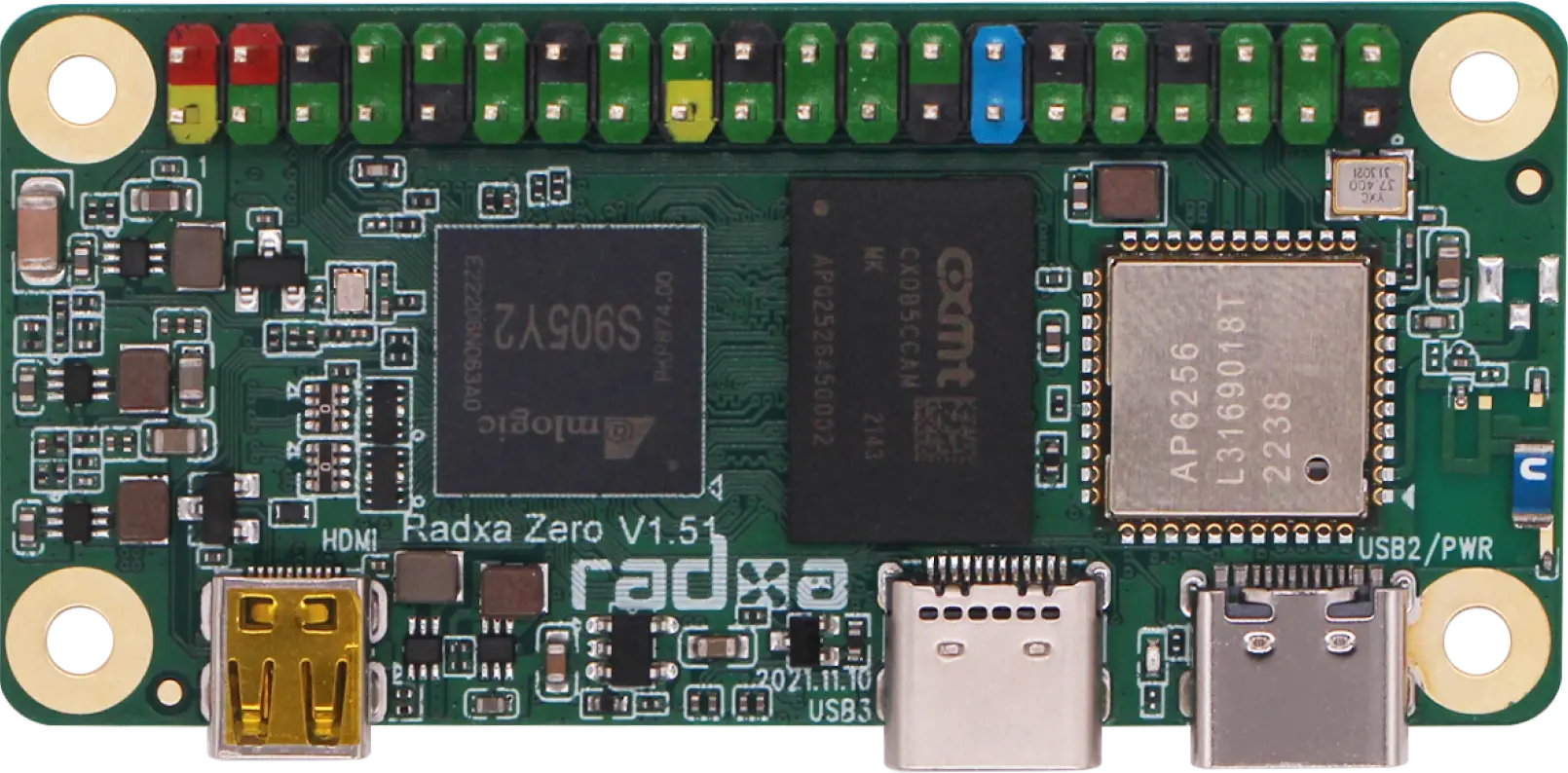

Board Pictures
Hardware
Specs
| SoC | Amlogic S905Y2 |
|---|---|
| Process | 12 nm |
| CPU | 4× Cortex-A53 @ 1.8 GHz |
| Memory | LPDDR4-3200 32-bit Up to 4 GB |
| GPU | Mali-G31 MP2 Vendor: OpenGL ES 3.2, Vulkan 1.0, OpenCL 2.0 Mesa: OpenGL 3.1, OpenGL ES 3.1, Vulkan 1.3, OpenCL 3.0 (Panfrost, PanVK, Rusticl, Panfrost kernel) |
| VPU | Decode: 4K@60fps H.265, VP9, AVS2 |
| SoC page | Amlogic S905Y2 |
Interfaces
| Board | Radxa ZERO |
|---|---|
| Memory | LPDDR4 1 / 2 / 4 GB |
| Display | Micro HDMI (4K@60) |
| Storage | microSD card slot, Onboard eMMC module (0 / 8 / 16 / 32 / 64 / 128 GB) |
| USB | 1× USB 2.0 Type-C (OTG, power & data) 1× USB 3.0 Type-C (host) |
| Wi-Fi | Onboard module varies by unit: ap6212 (Wi-Fi 4, 2.4 GHz only) / ap6256 (Wi-Fi 5, 2.4+5 GHz) / aw-cm256sm (Wi-Fi 5, 2.4+5 GHz) |
| Bluetooth | Onboard module varies by unit: ap6212 (BT 4.1) / ap6256 (BT 5.2) / aw-cm256sm (BT 4.2) |
| GPIO | 40-pin header |
| Power | USB Type-C (5 V / 2 A) |
| Dimensions | 65 × 30 mm |
