Broadcom BCM2712 | RaspberryPi 5

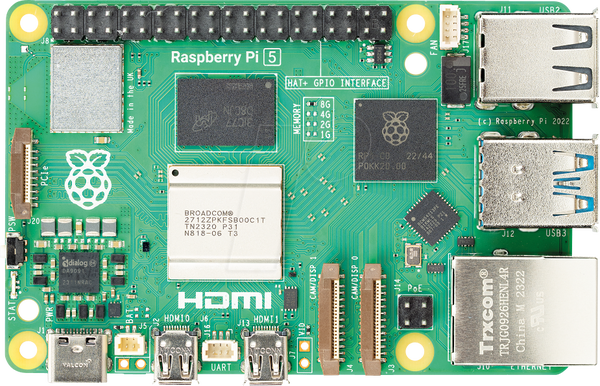

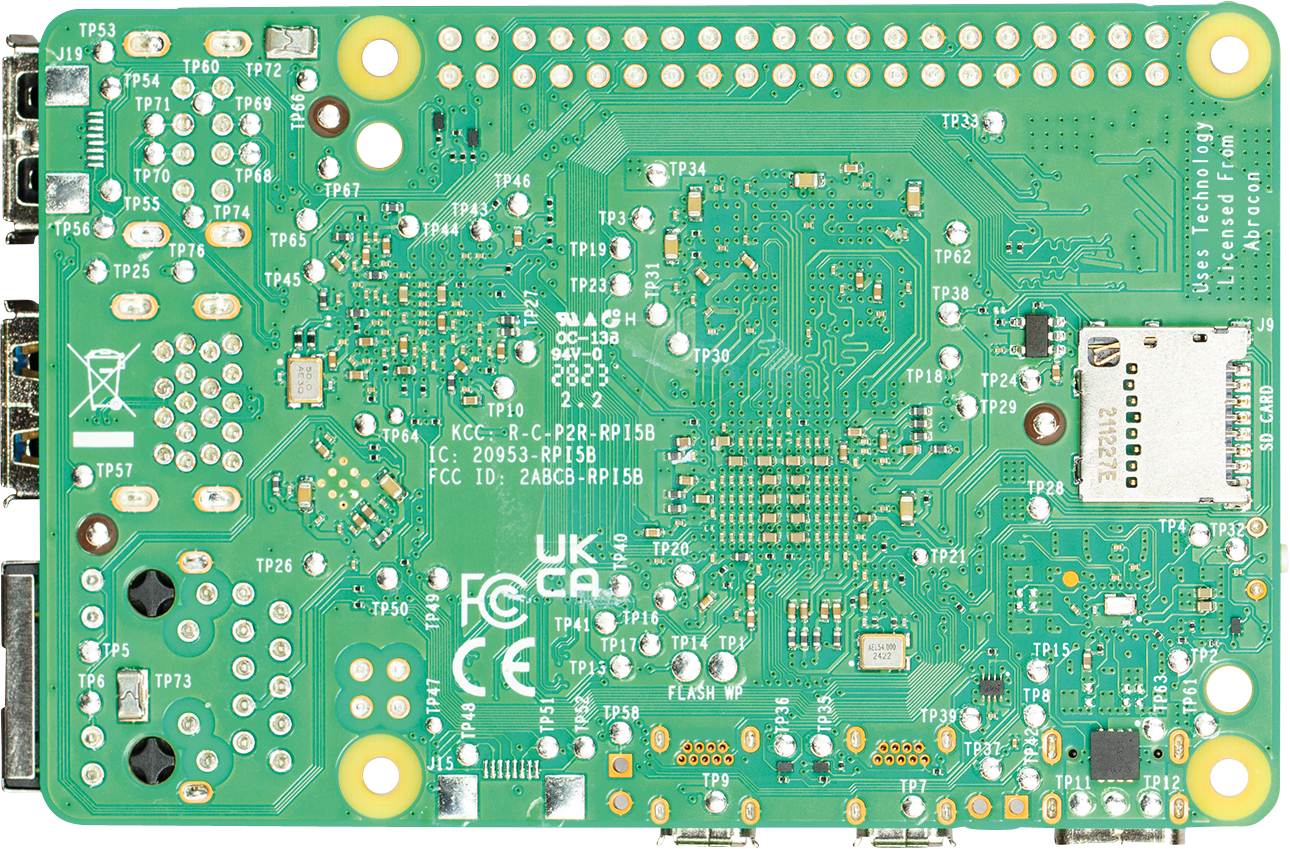

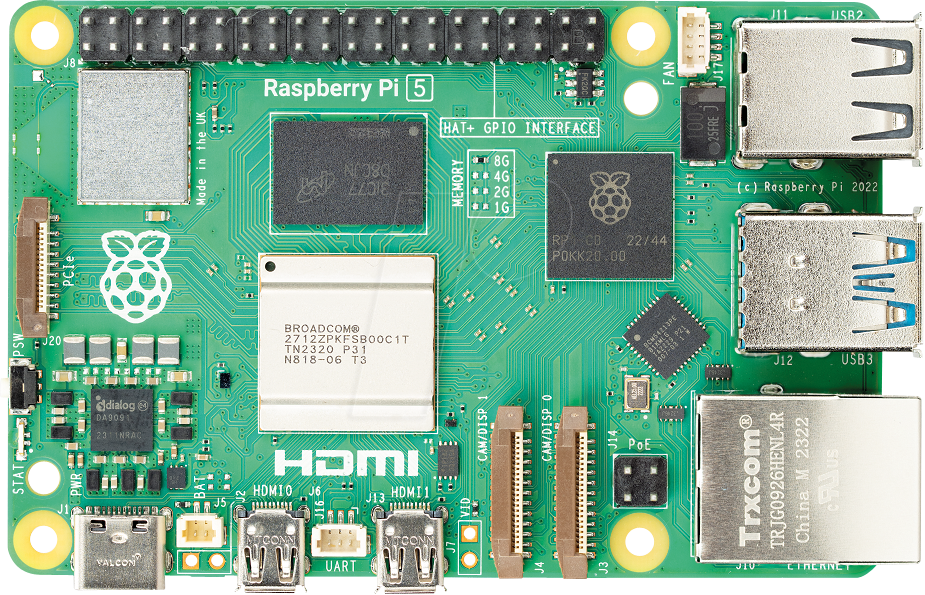

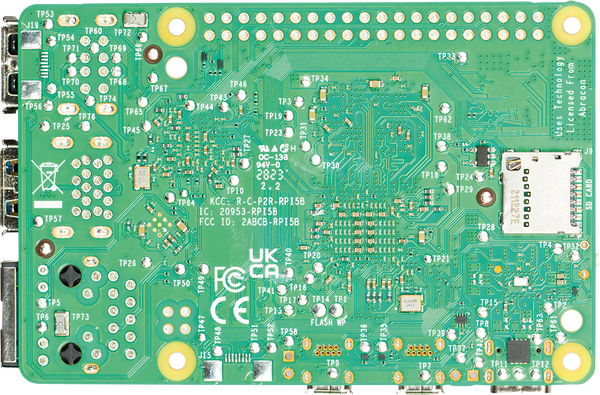

Board Pictures
Hardware
Specs
| SoC | Broadcom BCM2712 |
|---|---|
| CPU | 4× Cortex-A76 @ 2.4 GHz Cache: L2 0.5 MB/core · L3 2 MB Cryptography extensions |
| Memory | LPDDR4X |
| GPU | VideoCore VII Vendor: OpenGL ES 3.1, Vulkan 1.2 |
| VPU | Decode: 4K@60fps HEVC |
| SoC page | Broadcom BCM2712 |
Interfaces
| Board | Raspberry Pi 5 |
|---|---|
| Memory | LPDDR4X-4266 4 / 8 GB |
| Camera | 2× 4-lane MIPI camera/display transceivers |
| Display | 2× HDMI (4K@60, HDR) |
| Storage | microSD (SDR104) |
| PCIe | 1× PCIe Gen 2 x1 (Gen 3 mode possible; needs an M.2 HAT or other adapter) |
| USB | 2× USB 3.0 Type-A 2× USB 2.0 Type-A |
| Ethernet | 1× 1 GbE (PoE+ with separate PoE+ HAT) |
| Wi-Fi | Dual-band 802.11ac |
| Bluetooth | 5.0 / BLE |
| GPIO | Raspberry Pi 40-pin header |
| Power | 5 V / 5 A via USB-C with Power Delivery |
| RTC | Powered from external battery |
