Radxa NIO 12L#

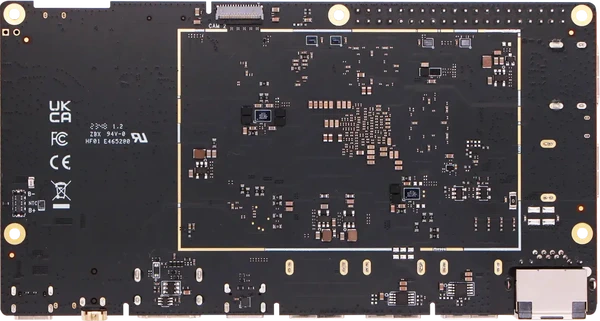

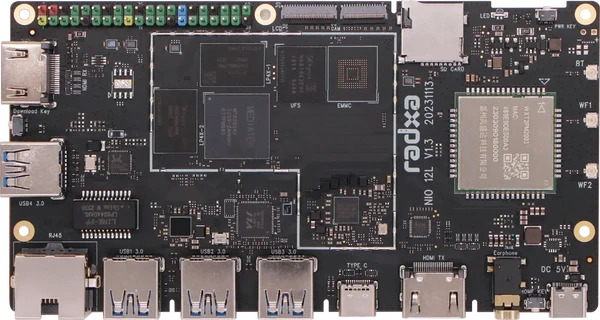

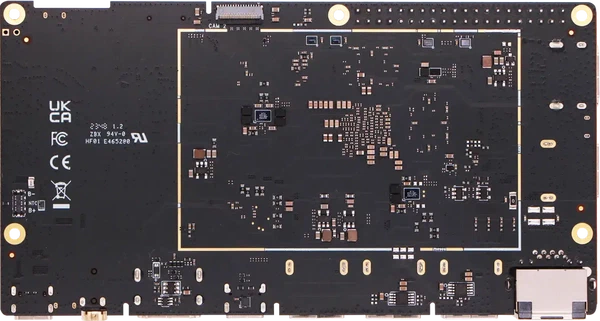

Board Pictures#
Hardware#
Specs
| SoC | MediaTek Genio-1200 / MT8395 (full spec) |
|---|---|
| CPU | Octa-core: 4× Cortex-A78 @ 2.2 GHz, 4× Cortex-A55 @ 2.0 GHz |
| RAM | x64 LPDDR4X-4266 - Configurations: 4GB / 8GB / 16GB |
| GPU | Mali-G57 MC5 @ 880 MHz - OpenGL ES 3.2, Vulkan 1.1, OpenCL 2.0 |
| VPU | Decode: H.264/H.265/AV1/VP9 (4K@90fps), MPEG4/VP8 (FHD@60fps) Encode: H.264/H.265 (4K@60fps) |
| NPU | MediaTek 3rd Gen NPU: 4.8 TOPS (2× MDLA2.0 + 2× Tensilica VP6) |
Interfaces#
| I/O | Description |
|---|---|
| Wireless | Wi-Fi 6, Bluetooth 5.4 |
| Ethernet | Gigabit Ethernet (PoE capable) |
| USB | USB 3.1 and USB 2.0 ports USB Type-C ports |
| Video | HDMI (up to 4K@60Hz) MIPI DSI support |
| Camera | MIPI CSI interfaces |
| Storage | MicroSD card slot eMMC/UFS module support M.2 NVMe support |
| Power | USB Type-C power input PoE power supply (with PoE HAT) |
| GPIO | GPIO Header |
| PCIe | PCIe connectors |
