NXP i.MX 8M Plus#
General Specifications#
Specs
| SoC | NXP i.MX 8M Plus |
|---|---|
| Process | 14nm LPC FinFET |
| CPU | Quad-core: 4× ARM Cortex-A53 (up to 1.8GHz commercial, 1.6GHz industrial) 1× ARM Cortex-M7 (800MHz) |
| RAM | LPDDR4 |
| GPU | Vivante GC7000UL, 1 GPixel/s, OpenGL ES 3.1, Vulkan, OpenCL 1.2 FP |
| NPU | 2.3 TOPS Neural Processing Unit for ML acceleration |
| VPU | 1080p60 H.265/H.264/VP9/VP8 decode 1080p60 H.265/H.264 encode |
| ISP | Dual Camera ISP, 375 MPixels/s |
| Display | MIPI-DSI (4-lane), HDMI 2.0, LVDS |
| Camera | 2× MIPI-CSI (4-lane each) |
| Storage | eMMC 5.1, SD 3.0, Quad SPI |
| Ethernet | 2× Gigabit Ethernet (1× with TSN) |
| PCIe | PCIe Gen 3.0 |
Linux Support#
Mainline kernel#
- Fully supported
- Works but not all features are implemented.
See i.MX device trees in mainline Linux kernel
Vendor BSP#
- NXP provides linux-imx kernel and Yocto-based BSP with Long Term Support
Documentation#

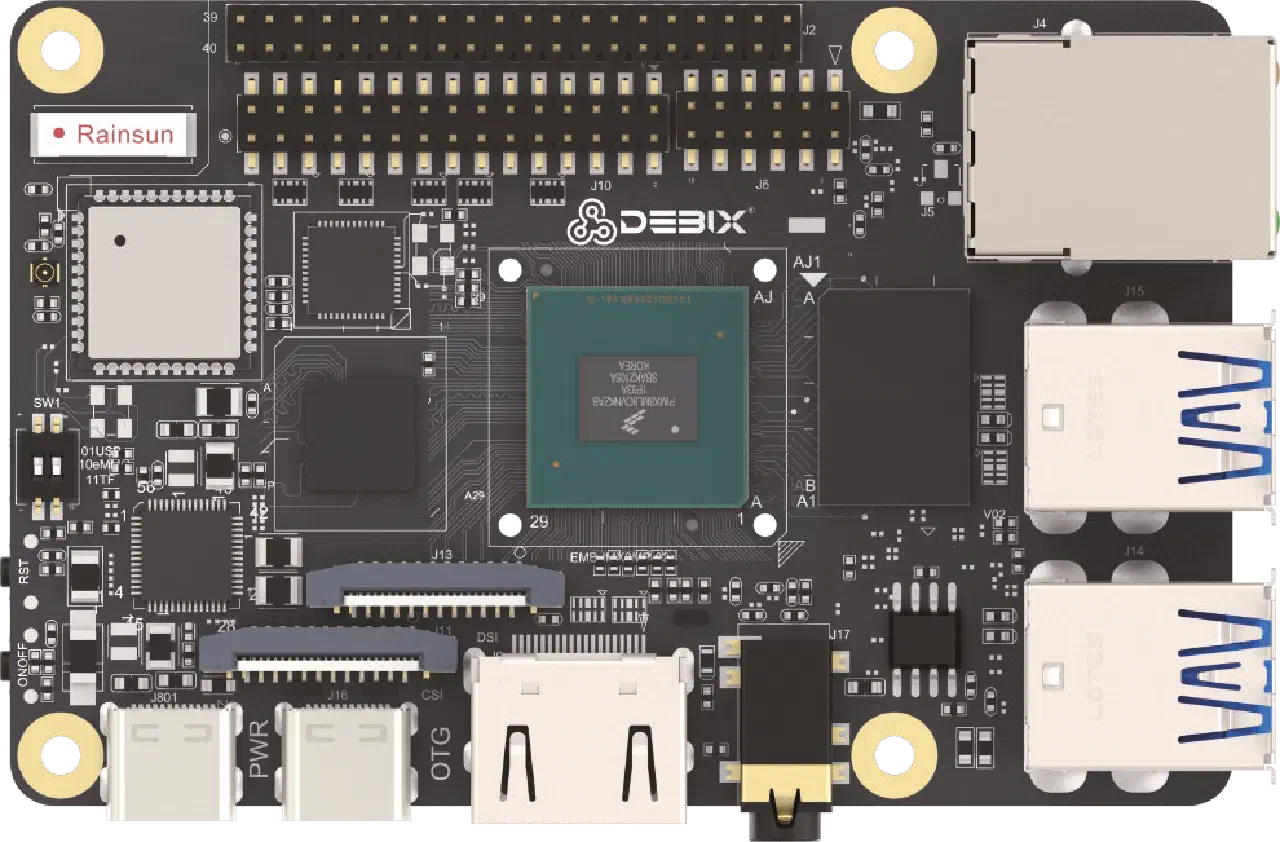

Boards with i.MX 8M Plus#
List of boards:
