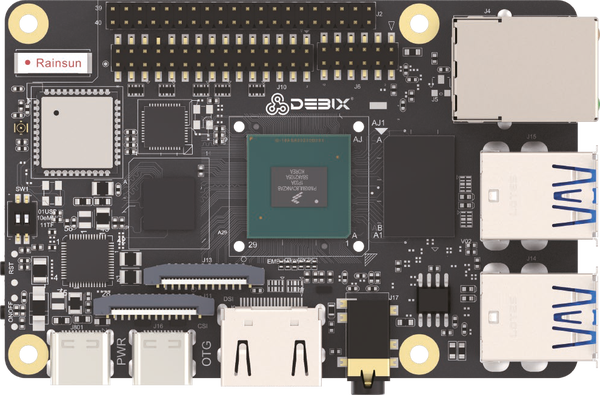

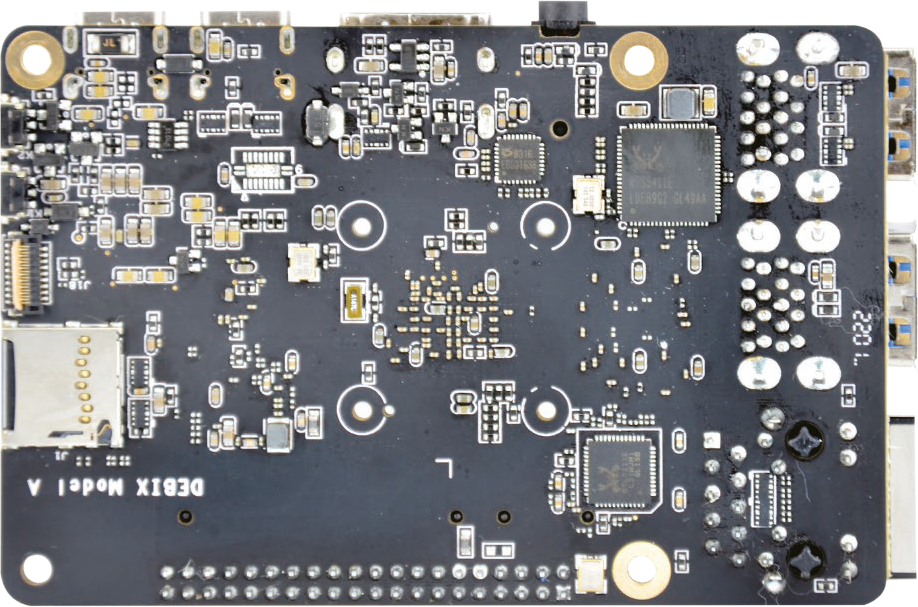

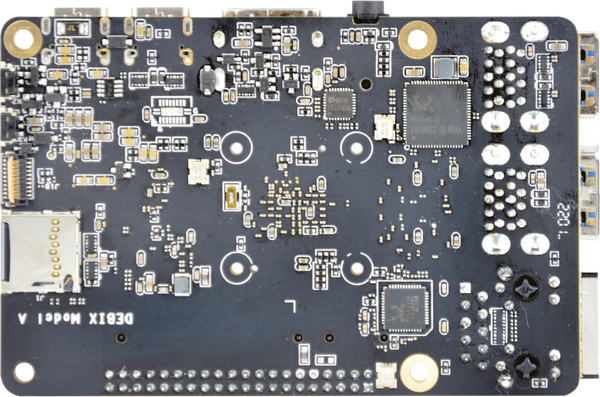

Debix Model A
Hardware Specifications
Specs
| SoC | NXP i.MX 8M Plus |
|---|---|
| Process | 14 nm (LPC FinFET) |
| CPU | 4× Cortex-A53 (Armv8-A) @ 1.8 GHz (commercial; 1.6 GHz industrial) |
| MCU | 1× Cortex-M7 @ 800 MHz |
| Memory | LPDDR4 |
| GPU | Vivante GC7000UL Vendor: OpenGL ES 3.1, Vulkan, OpenCL 1.2 FP 1 GPixel/s Plus a Vivante GC520L 2D GPU |
| NPU | 2.3 TOPS |
| VPU | Decode: 1080p@60fps H.265, H.264, VP9, VP8 Encode: 1080p@60fps H.265, H.264 |
| ISP | 2× ISP, 375 MPixel/s |
| Camera | 2× MIPI-CSI (4-lane each) |
| Display | MIPI-DSI (4-lane), HDMI 2.0, LVDS |
| Storage | eMMC 5.1, SD 3.0, Quad SPI |
| PCIe | PCIe Gen 3 |
| Ethernet | 2× 1 GbE (1× with TSN) |
| SoC page | NXP i.MX 8M Plus |
| On this board | Available with the i.MX 8M Plus Quad or QuadLite NPU on the standard (Quad) version only |
Interfaces
| Board | Debix Model A |
|---|---|
| Memory | LPDDR4 2 / 4 / 8 GB |
| Camera | 1× MIPI CSI (4-lane, up to 12MP@30fps or 4K@45fps) |
| Display | 1× HDMI (up to 1366×768), 1× MIPI DSI (4-lane, up to WQHD 2560×1440), 1× LVDS (single & dual channel 8-bit, up to 1080p60) |
| Storage | microSD, Optional onboard eMMC: 8 / 16 / 32 / 64 / 128 / 256 GB |
| PCIe | 1× FPC connector: PCIe Gen 3 x1 |
| USB | 4× USB 3.0 (host) 1× USB 2.0 Type-C (OTG) |
| Ethernet | 1× 1 GbE (TSN, optional PoE) 1× 1 GbE (via 12-pin header, without transformer) |
| Wi-Fi | Wi-Fi 5 (2.4 GHz & 5 GHz), external SMA antenna connector (IPEX-4) |
| Bluetooth | 5.0 |
| GPIO | 40-pin double-row header: 3× UART, 2× I2C, 2× SPI, 2× CAN, 6× GPIO (configurable as I2S, PWM, SPDIF), 5 V supply, system reset, ON/OFF |
| Audio | 3.5 mm headphone/mic combo |
| Security | EdgeLock Secure Enclave |
| Power | 5 V / 3 A via USB Type-C |
| Dimensions | 85 × 56 mm |
| Weight | 46 g |
| Temperature | -20°C to 70°C |
| Weight (gross) | 72 g |
Key Features
- Industrial Grade: Reliable operation from -20°C to 70°C with 10-15 year long-term availability
- AI Acceleration: Dedicated 2.3 TOPS NPU for edge AI applications
- Time-Sensitive Networking: TSN-capable Gigabit Ethernet for industrial IT/OT communication
- Multimedia: Advanced video encode/decode with 3D/2D graphics acceleration
- Flexible I/O: 40-pin header configurable for various industrial interfaces
- Secure Boot: EdgeLock® Secure Enclave for enhanced security
Product Variants
Standard vs Lite
| Feature | Standard | Lite |
|---|---|---|
| NPU | ✓ (2.3 TOPS) | ✗ |
| VPU | ✓ | ✗ |
| ISP | ✓ | ✗ |
| HiFi 4 DSP | ✓ | ✗ |
Benchmarks
higher is betterRankings
- Single-Core Score #11 of 11 boards · 10 % of Radxa Dragon Q8B171
- Multi-Core Score #11 of 11 boards · 8 % of Radxa Dragon Q8B515
Documentation
- Debix Model A Product Page
- Debix Model A Hardware Documentation
- Product Brief
- User Manual
- Schematics
- 3D Model (.stp)
- Mechanical Drawing
Certifications
CE, FCC, UKCA, RCM, MIC (TELEC), KC, RoHS
