NXP i.MX 93#
General Specifications#
Specs
| SoC | NXP i.MX 93 |
|---|---|
| CPU | Dual-core: 2× ARM Cortex-A55 (up to 1.7GHz) 1× ARM Cortex-M33 (up to 250MHz) |
| RAM | LPDDR4 with inline ECC |
| GPU | 2D GPU |
| NPU | ARM Ethos-U65 microNPU, 256 MACs @ 1.0GHz, 8-bit/16-bit integer |
| ISP | 1080p60 camera processing |
| Display | 1080p60 MIPI-DSI (4-lane), 720p60 LVDS (4-lane), 24-bit parallel RGB |
| Camera | 1080p60 MIPI-CSI (2-lane), 8-bit parallel YUV/RGB |
| Storage | 3× SD/SDIO 3.0/eMMC 5.1, 1× Octal SPI |
| Ethernet | 2× Gigabit Ethernet (1× with TSN support) |
| USB | 2× USB 2.0 |
| Audio | 7× I²S, SPDIF, PDM mic, MQS output |
| Security | EdgeLock secure enclave |
Linux Support#
Mainline kernel#
- Fully supported
- Works but not all features are implemented.
See i.MX device trees in mainline Linux kernel
Vendor BSP#
- NXP provides linux-imx kernel and Yocto-based BSP with Long Term Support
Documentation#

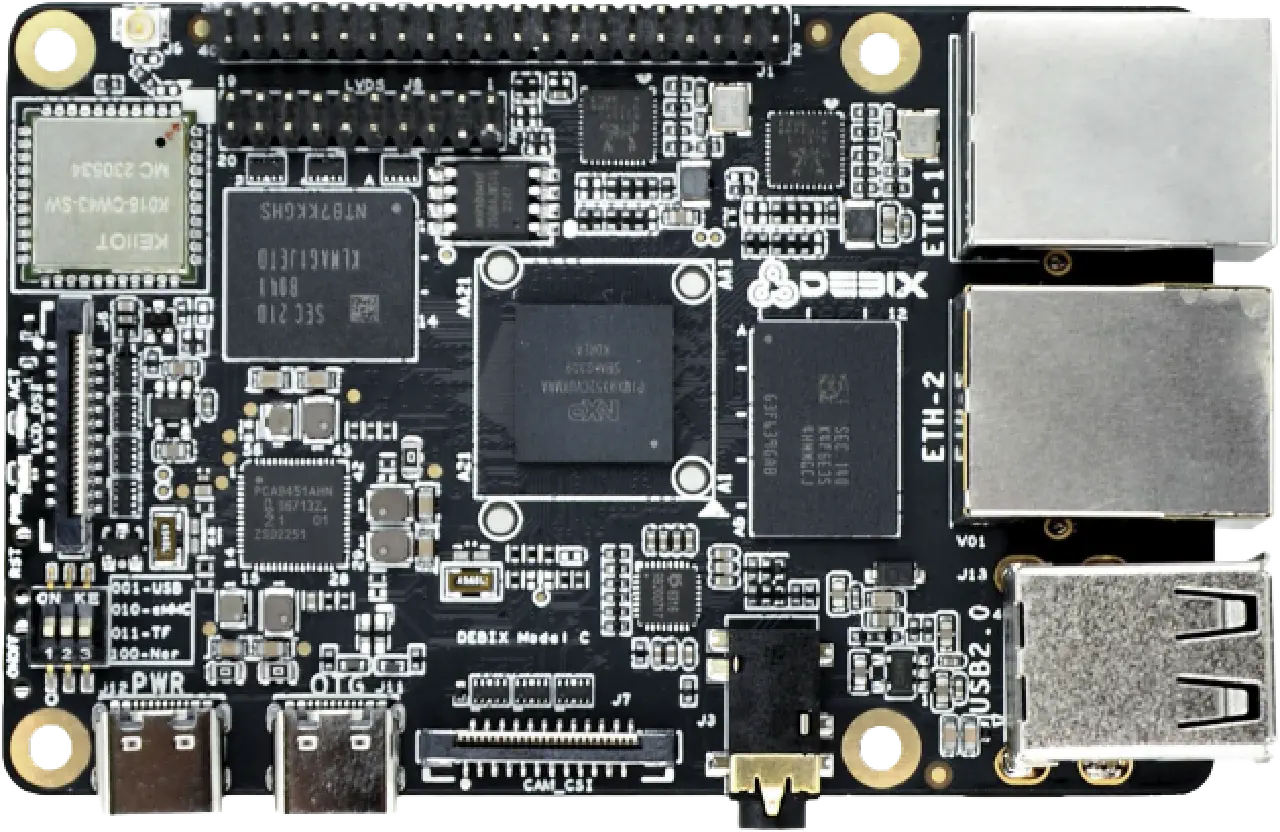

Boards with i.MX 93#
List of boards:
