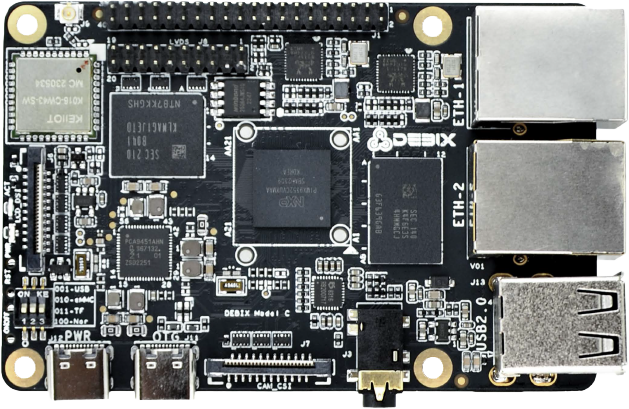

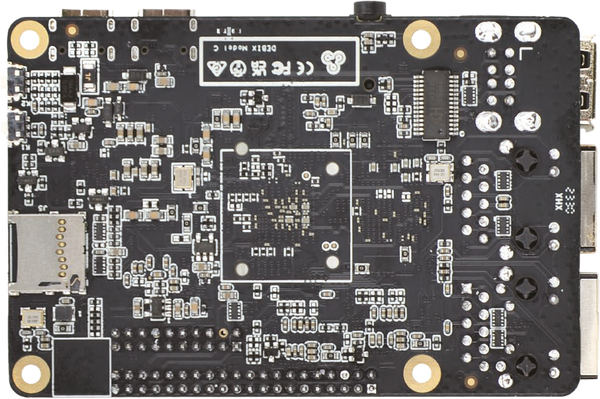

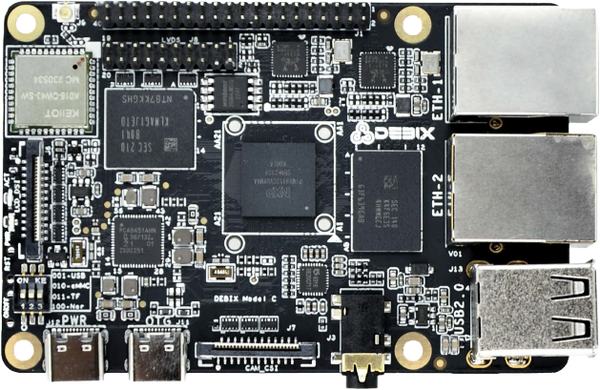

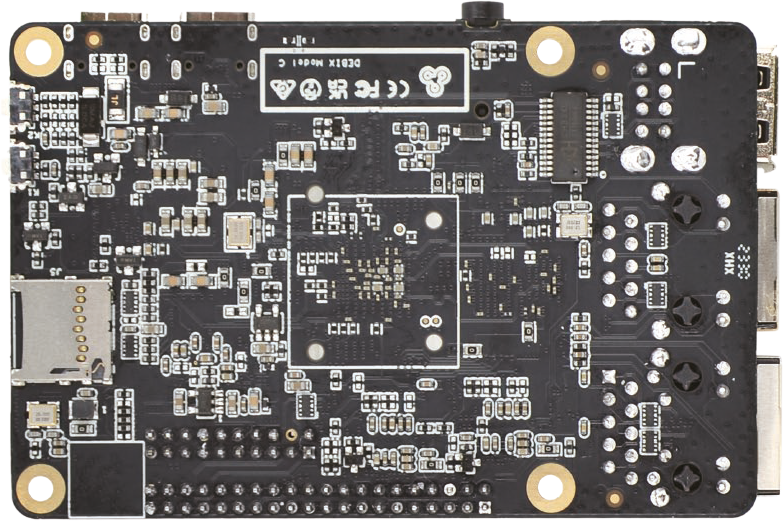

Debix Model C#
Hardware Specifications#
Specs
| SoC | NXP i.MX 93 (i.MX9352) |
|---|---|
| CPU | 2× ARM Cortex-A55 @ 1.7GHz 1× ARM Cortex-M33 @ 250MHz |
| RAM | 1GB LPDDR4X (2GB optional) |
| NPU | 0.5 TOPS ARM Ethos-U65 microNPU |
| GPU | 2D GPU |
Interfaces#
| I/O | Description |
|---|---|
| Storage | MicroSD card slot Onboard 8MB NOR Flash Optional onboard eMMC: 8GB/16GB/32GB/64GB/128GB/256GB |
| Ethernet | 2× Gigabit Ethernet • 1× with TSN support and optional PoE • 1× Gigabit (PoE not supported) |
| Wireless | WiFi 5 (2.4GHz & 5GHz) IEEE 802.11a/b/g/n Bluetooth 5.2 External SMA antenna connector (IPEX-1) |
| USB | 2× USB 2.0 Host 1× USB 2.0 OTG Type-C |
| Video | 1× MIPI DSI 1080p60 (4-lane) 1× LVDS 720p60 (single channel 8-bit) |
| Camera | 1× MIPI CSI 1080p60 (2-lane) |
| Audio | 3.5mm headphone/mic combo port |
| Expansion | 40-pin double-row GPIO header: • 1× I2C, 1× UART (system debug) • 2× USB 2.0 Host • 4× 12-bit ADC input • 6× GPIO (configurable as PWM, UART, SPI, I2C, CAN) • 5V power in/out, 1.8V/3.3V @ 300mA out • System reset, ON/OFF |
| Other | 1× 3-bit DIP switch |
| Power | DC 5V/2A via USB Type-C Maximum 1W power consumption |
| Security | EdgeLock® Secure Enclave |
| Operating Temp | -20°C to 70°C (standard) -40°C to 85°C (optional) |
| Dimensions | 85.0mm × 56.0mm (±0.5mm) |
| Weight | 43g net (±0.5g) |
Key Features#
- Ultra-Low Power: Maximum 1W power consumption at full load, ideal for power-conscious designs
- Industrial Grade: Reliable operation from -20°C to 70°C (or -40°C to 85°C) with 10-15 year long-term availability
- AI Acceleration: Dedicated 0.5 TOPS NPU for light edge AI applications
- Time-Sensitive Networking: TSN-capable Gigabit Ethernet for industrial IT/OT communication
- Cost-Effective: Designed for cost-sensitive industrial applications
- Secure Boot: EdgeLock® Secure Enclave for enhanced security
- Flexible Configuration: Configurable GPIO header for various industrial interfaces
Use Cases#
The Debix Model C is optimized for:
- Power-constrained embedded systems
- Industrial IoT gateways
- Light AI edge processing
- Industrial automation and control
- Smart building applications
- Battery-powered industrial devices
Documentation#
Certifications#
CE-EMC, C-Tick, FCC, PSE, RoHS, UKCA
Where to Buy#
- Debix Official Store - $61.99-$87.27
- Configuration-based pricing with options for temperature range, memory, storage, and operating system
