NXP Layerscape LS1046A#
General Specifications#
Specs
| SoC | NXP Layerscape LS1046A |
|---|---|
| CPU | Quad-core: 4× ARM Cortex-A72 (up to 1.8GHz) |
| RAM | DDR4 |
| Ethernet | 2× 10 Gigabit Ethernet + up to 5× Gigabit Ethernet |
| PCIe | 3× PCIe Gen 3.0 |
| SerDes | 8-10 GHz SerDes lanes |
| Storage | SD, SPI, I²C |
| SATA | 1× SATA 3.0 |
| Security | SEC security engine, 10 Gbit/s |
| USB | USB 2.0/3.0 |
Linux Support#
Mainline kernel#
- Fully supported
- Works but not all features are implemented.
See Layerscape device trees in mainline Linux kernel
Vendor BSP#
- NXP provides linux-qoriq kernel and Layerscape SDK with Yocto-based Linux distribution
Documentation#

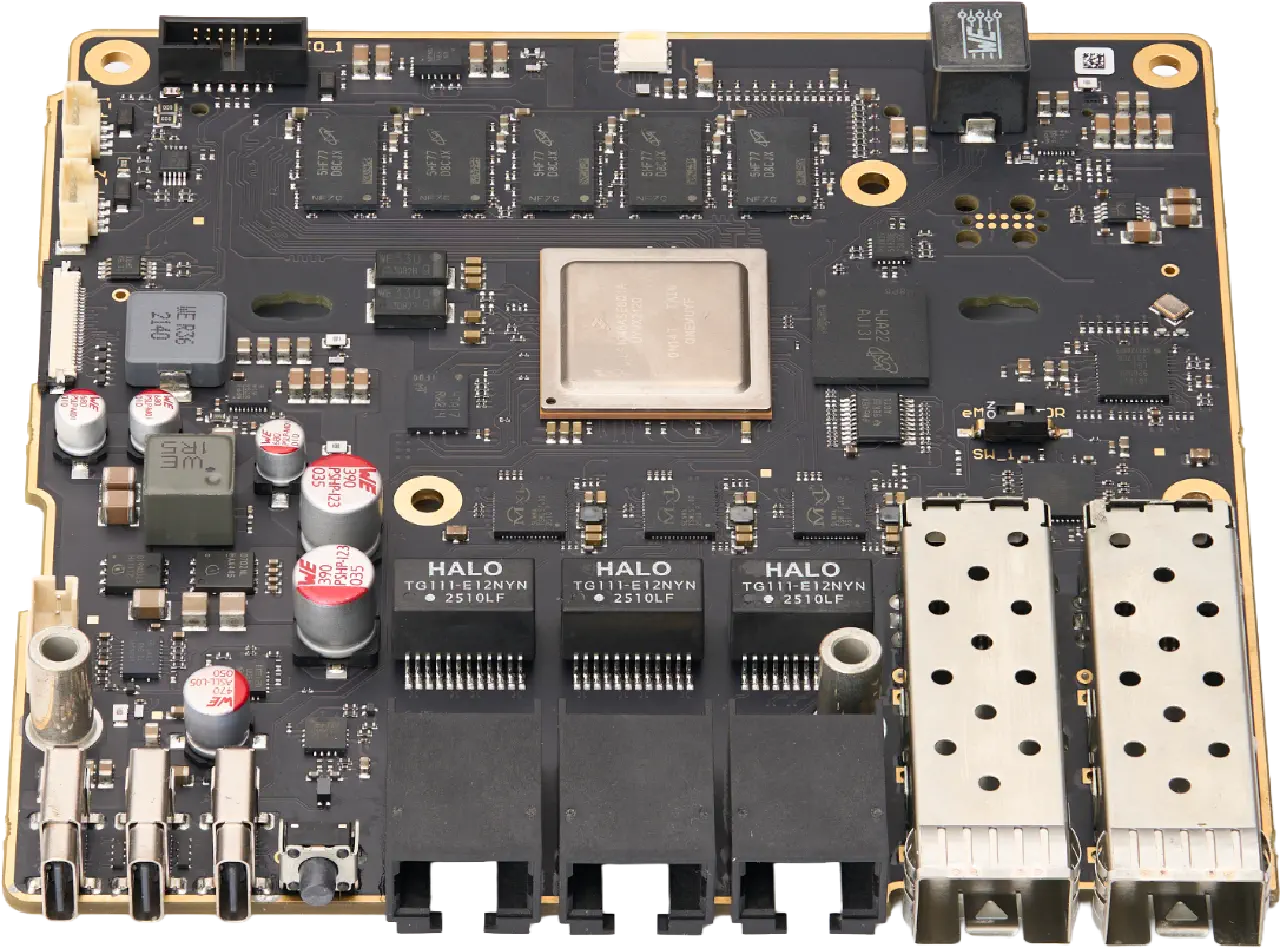

Boards with LS1046A#
List of boards:
