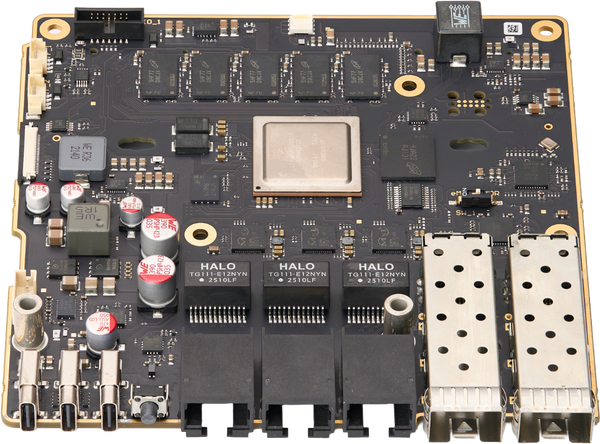

Gateway Development Kit
Hardware Specifications
Specs
| SoC | NXP Layerscape LS1046A |
|---|---|
| CPU | 4× Cortex-A72 (Armv8-A) @ 1.8 GHz |
| Memory | DDR4 |
| Storage | SD, SPI, I²C |
| PCIe | 3× PCIe Gen 3 |
| SATA | 1× SATA 3.0 |
| USB | USB 2.0/3.0 |
| Ethernet | 2× 10 GbE 5× 1 GbE (up to 5) |
| Security | SEC security engine, 10 Gbit/s |
| SerDes | 8-10 GHz SerDes lanes |
| SoC page | NXP Layerscape LS1046A |
| On this board | CPU clocked at 1.6 GHz on this board |
Interfaces
| Board | Gateway Development Kit |
|---|---|
| Memory | DDR4-2100 8 GB ECC |
| Storage | 32 GB eMMC (operating system), 64 MB NOR flash (bootloader) |
| PCIe | 2× M.2 E-Key: PCIe (1× Wi-Fi 6 2x2 MU-MIMO, 1× tri-radio (Wi-Fi 5 + Bluetooth + Thread)) |
| USB | 1× USB 3.0 Type-C 1× USB console/UART Type-C (debugging) |
| Ethernet | 2× 10 GbE (SFP+) 3× 1 GbE (RJ-45) |
| Wi-Fi | Via M.2 E-Key modules |
| Power | USB-C PD 3.0 (65 W charger included) |
| Cooling | Active cooling with 2× 2-pin PWM 5 V fan headers Heatsink included |
| Sensors | 8× power sensors for real-time monitoring 2× temperature sensors |
| Debugging | JTAG connector 100+ test points throughout the PCB UART USB-C port Status RGB LED |
| Enclosure | Polycarbonate enclosure (design TBD) |
| Form factor | Nano-ITX |
| Dimensions | 120 × 120 mm |
| Throughput | Up to 26 Gbps line-rate for VLANs, PPPoE and NAT |
Compare Gateway Development Kit with other boards and SoCs →
Key Features
- High-Performance Networking: Up to 26 Gbps line-rate throughput for enterprise networking
- 10 Gigabit Capable: Dual SFP+ ports for fiber connectivity
- Open Source: Built from the ground up with open-source software and transparency
- Developer-Friendly: 100+ test points, JTAG, and console access for full control
- Expandable WiFi: Dual M.2 slots support WiFi 6 and tri-radio configurations
- Precision Monitoring: Real-time power and temperature monitoring throughout the system
- Active Cooling: Professional-grade fan and heatsink for sustained performance
- ECC Memory: Enterprise-grade 8GB DDR4 with error correction
- Long-Term Availability: 10-15 year support commitment
Product Information
Development Kit vs Final Product
The Gateway development kit represents the unoptimized version used by the internal development team. It features the highest quality components and manufacturers without any cost optimizations. Two final variants are planned:
- Founders Edition: CNC-milled aluminum enclosure
- Rackmount Edition: Sheet metal enclosure
All development kit buyers will have the option to purchase a CNC-milled aluminum enclosure to upgrade from the polycarbonate case.
Operating System Support
- Pre-installed: OpenWRT (tested and verified)
- Tested: Various Linux distributions, VyOS, VPP + DPDK
- Compatible: Any ARM64 software that compiles for the architecture
Benchmarks
SBCwiki.com does not have any benchmark data for Gateway Development Kit yet. Check sbc.compare for results.
Documentation
Where to Buy
- Mono Official Store - $600 (development kit)
