Arduino Ventuno Q

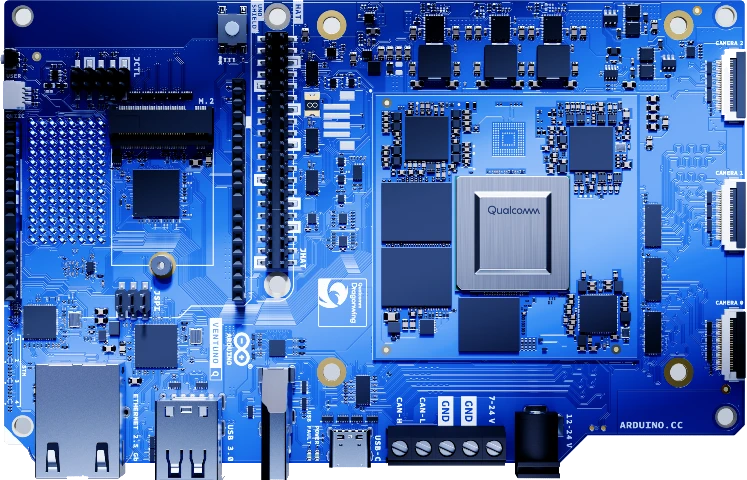

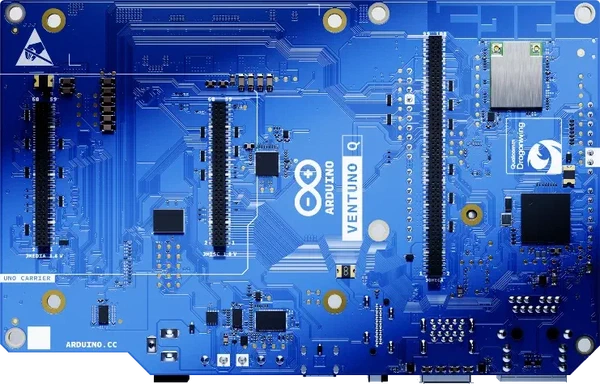

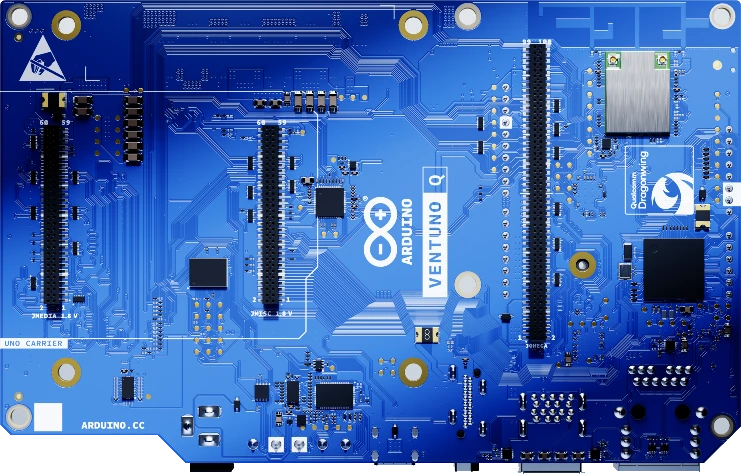

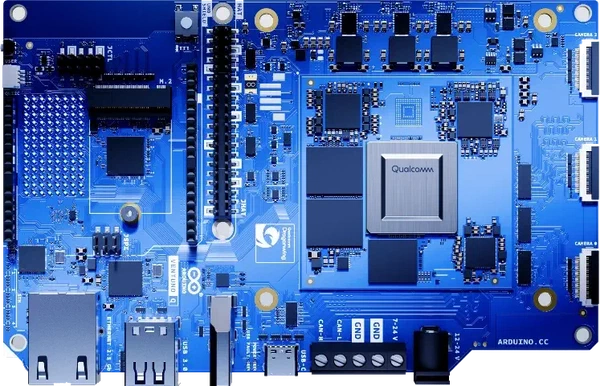

Board Pictures
Hardware
Specs
| SoC | Qualcomm Dragonwing IQ8 (IQ-8275) |
|---|---|
| Codename | Monaco |
| CPU | 2× Cortex-A78C @ 2.35 GHz 2× Cortex-A78C @ 2.1 GHz 4× Cortex-A55 @ 1.95 GHz Sold as Kryo Gen 6 |
| Memory | LPDDR5-6400 / LPDDR5X-6400 64-bit Up to 32 GB Inline ECC |
| GPU | Adreno 623 @ 877 MHz Mesa: OpenGL 4.6, OpenGL ES 3.2, Vulkan 1.3 (Freedreno, Turnip, drm/msm kernel) |
| NPU | Hexagon, 40 TOPS dense (INT8) Highest of a 20–40 TOPS range; can differ by binning |
| ISP | Qualcomm Spectra 692 |
| SoC page | Dragonwing Q8 / IQ8 |
Microcontroller
| Microcontroller (MCU) | STM32H5F5 |
|---|---|
| CPU | Cortex-M33 @ 250 MHz |
| Flash | 4 MB |
| RAM | 1.5 MB |
| OS | Arduino core on Zephyr |
Interfaces
| Board | Arduino Ventuno Q |
|---|---|
| Memory | LPDDR5 16 GB |
| Camera | USB camera support, 3× MIPI CSI connectors (muxed with 2× MIPI CSI on JMEDIA) |
| Display | 1× HDMI (muxed with MIPI DSI on JMEDIA), USB-C DP Alt Mode, MIPI DSI pins on JMEDIA header |
| Storage | 64 GB eMMC, M.2 connector for NVMe Gen 4 storage |
| USB | 1× USB 2× USB 3.0 Type-A 2× USB 3.0 (on JOMEGA header) |
| Ethernet | 1× 2.5 GbE (RJ45) |
| Wi-Fi | Wi-Fi 6, 2.4/5/6 GHz, onboard antenna |
| Bluetooth | 5.3, onboard antenna |
| CAN | 5× CAN-FD |
| GPIO | UNO Shield headers, 40-pin header (Raspberry Pi HAT compatible), Qwiic connector (3.3 V, I2C), JMEDIA, JMISC, JOMEGA carrier headers |
| Audio | 2× microphone in / headphone out / ear out / line out on JMISC header |
| Power | USB-C (5 V max @ 3 A) 5.5×2.1 mm power jack (12–24 V DC) Screw terminal (7–24 V DC) 7–24 V on JOMEGA |
| Debugging | JCTL MPU remote debug connector; JTAG on JOMEGA header |
| Dimensions | 160 × 100 × 25.8 mm |
| Weight | 490 g |
| Temperature | -10 °C to +60 °C (commercial range) |
| CAN detail | 1× CAN-FD PHY on screw terminal 3× CAN-FD (no PHY) on JOMEGA header 1× CAN-FD (no PHY) on UNO shield headers |
| Indicators | 4× RGB user LEDs 8×13 blue LED matrix |
| Buttons | User button, reset button |
Available OS images
- Ubuntu
- Debian (Upstream)
- Arduino core on Zephyr (for MCU)
Documentation / Links
Benchmarks
- Pre-release CPU and GPU benchmarks: Arduino Ventuno Q First Look: Benchmarks
