Arduino Uno Q

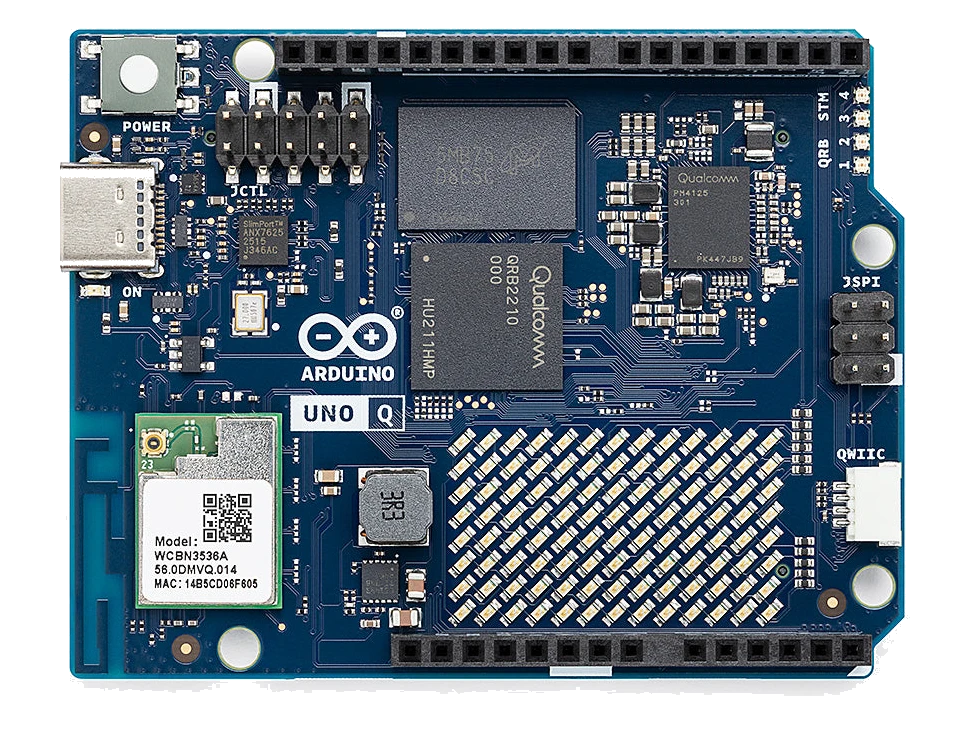

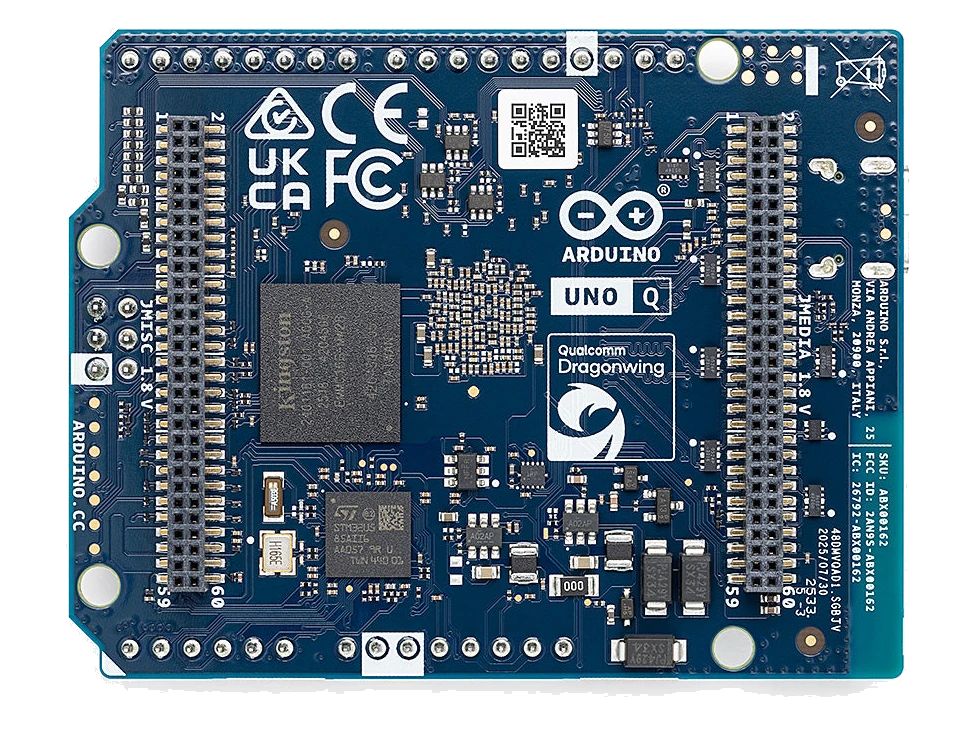

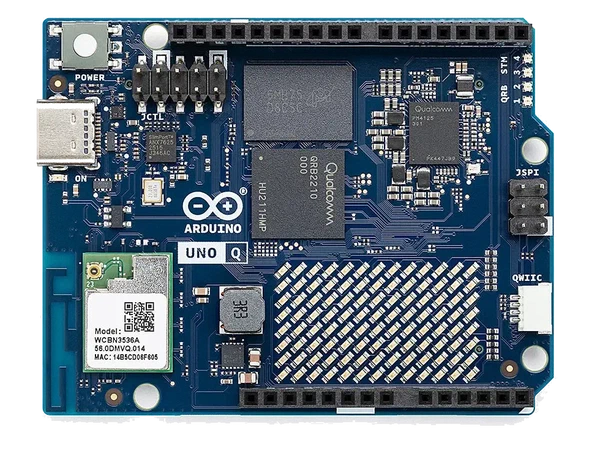

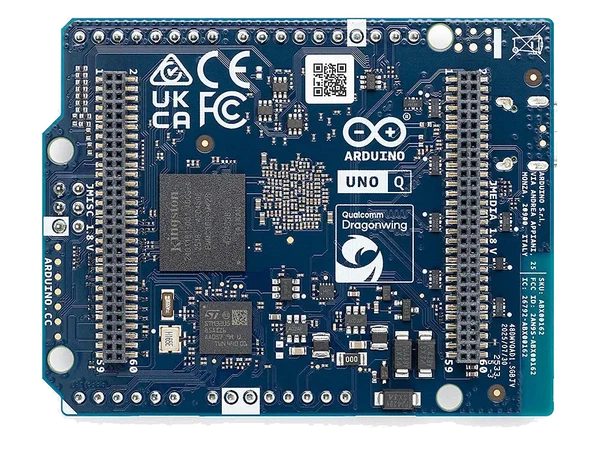

Board Pictures
Hardware
Specs
| SoC | Qualcomm Dragonwing Q2 (QRB2210) |
|---|---|
| CPU | 4x Arm Cortex-A53 @ 2.0 GHz |
| GPU | Qualcomm Adreno 702 @ 845 MHz |
| ISP | Dual ISP: 13 MP + 13 MP, or 25 MP @ 30 fps |
| RAM | LPDDR4X, 32-bit single-rank - 2GB (ABX00162) - 4GB (ABX00173) |
| Storage | eMMC 16GB (ABX00162) or 32GB (ABX00173) |
| Microcontroller (MCU) | STM32U585 |
|---|---|
| CPU | Arm Cortex-M33 up to 160 MHz |
| Flash | 2MB |
| RAM | 786kB SRAM |
| OS | Arduino Core on Zephyr |
Interfaces
| I/O | Description |
|---|---|
| Wireless | Wi-Fi 5 dual-band (802.11a/b/g/n/ac) and Bluetooth 5.1 Onboard antenna (WCBN3536A / Qualcomm WCN3980) |
| USB | 1x USB-C 3.1 with role switching DisplayPort Alt Mode through an ANX7625 MIPI DSI-to-DisplayPort bridge |
| Video | DisplayPort over USB-C 4-lane MIPI DSI on the JMEDIA connector |
| Camera | 4-lane MIPI CSI-2 on the JMEDIA connector |
| Power | USB-C Power Delivery, 5V / 3A only 7–24V DC on VIN 5V pin on the analog header |
| GPIO | Arduino UNO headers (JDIGITAL, JANALOG) at 3.3V JSPI header Qwiic connector JMEDIA 60-pin, 1.8V (MIPI CSI / DSI) JMISC mixed-voltage header (1.8V MPU, 3.3V MCU) |
| Other | 8×13 blue LED matrix driven by the STM32 RGB status LEDs Uno form factor |
Available OS images
- Debian, from Arduino, with upstream Linux support on the QRB2210
- Arduino App Lab, bridging Linux on the QRB2210 and sketches on the STM32U585
Documentation / Links
Benchmarks
- Geekbench 6, from sbc.compare:
Single Core 190, Multi Core 527
