Rockchip RK3528#
General Specifications#
Specs
| SoC | Rockchip RK3528 |
|---|---|
| CPU | Quad-core ARM Cortex-A53 with Neon and FPU, shared L2 Cache |
| RAM | 32-bit DDR3(L)/LPDDR3/DDR4/LPDDR4/LPDDR4X DDR3-2133/DDR3L-2133/LPDDR3-2133/DDR4-2400/LPDDR4(X)-2400, 4GB addressing |
| GPU | ARM Mali-450 GPU OpenGL® ES 1.1/2.0, OpenVG 1.1 |
| VPU | Decoder: H.264/AVC, H.265/HEVC, AVS2 up to 4Kx2K@60fps MPEG-1/2/4, VC-1, AVS/AVS+, H.263 Encoder: H.264 up to 1080p@60fps, H.265 up to 1080p@60fps, JPEG encoder |
| Display | HDMI 2.0b transmitter (4Kx2K@60fps, HDR, CEC, HDCP 2.2) CVBS (720x576@60Hz) |
| Security | ARM TrustZone, crypto, RNG, firewall |
| Storage | eMMC 5.1 (HS400, CMD Queue), SD/MMC 4.51, FSPI |
| Connectivity | USB 2.0 Host, USB 2.0 OTG, USB 3.0 DRD (shared with PCIe 2.1) PCIe 2.1 (1L RC), GbE MAC (RGMII/RMII) SDIO 3.0, 8× UART, 8× I2C, 2× SPI |
| Package | WBBGA401L (13.3×13.5 mm, 0.65/0.6 mm ball pitch) |
Linux Support#
Documentation#
- RK3528 Datasheet (FriendlyElec wiki)
- Technical Reference Manual

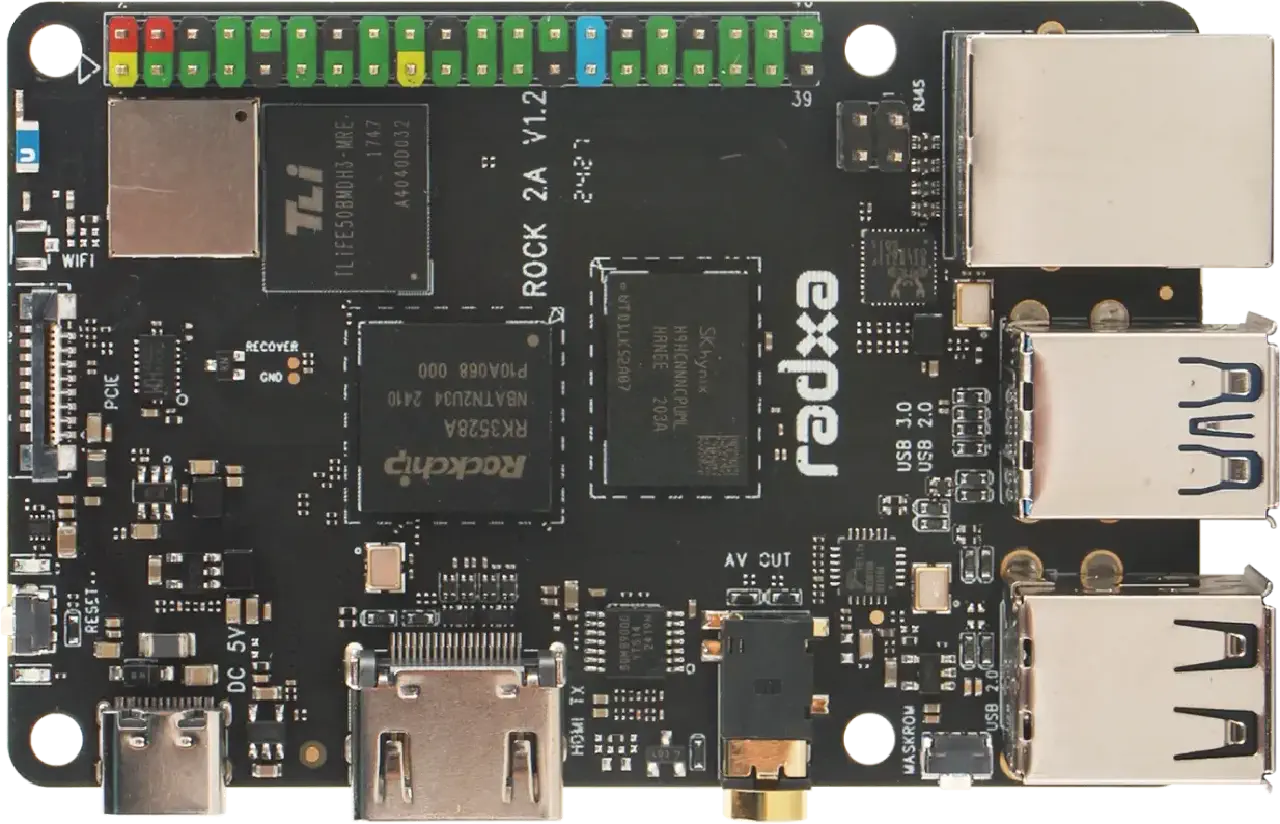

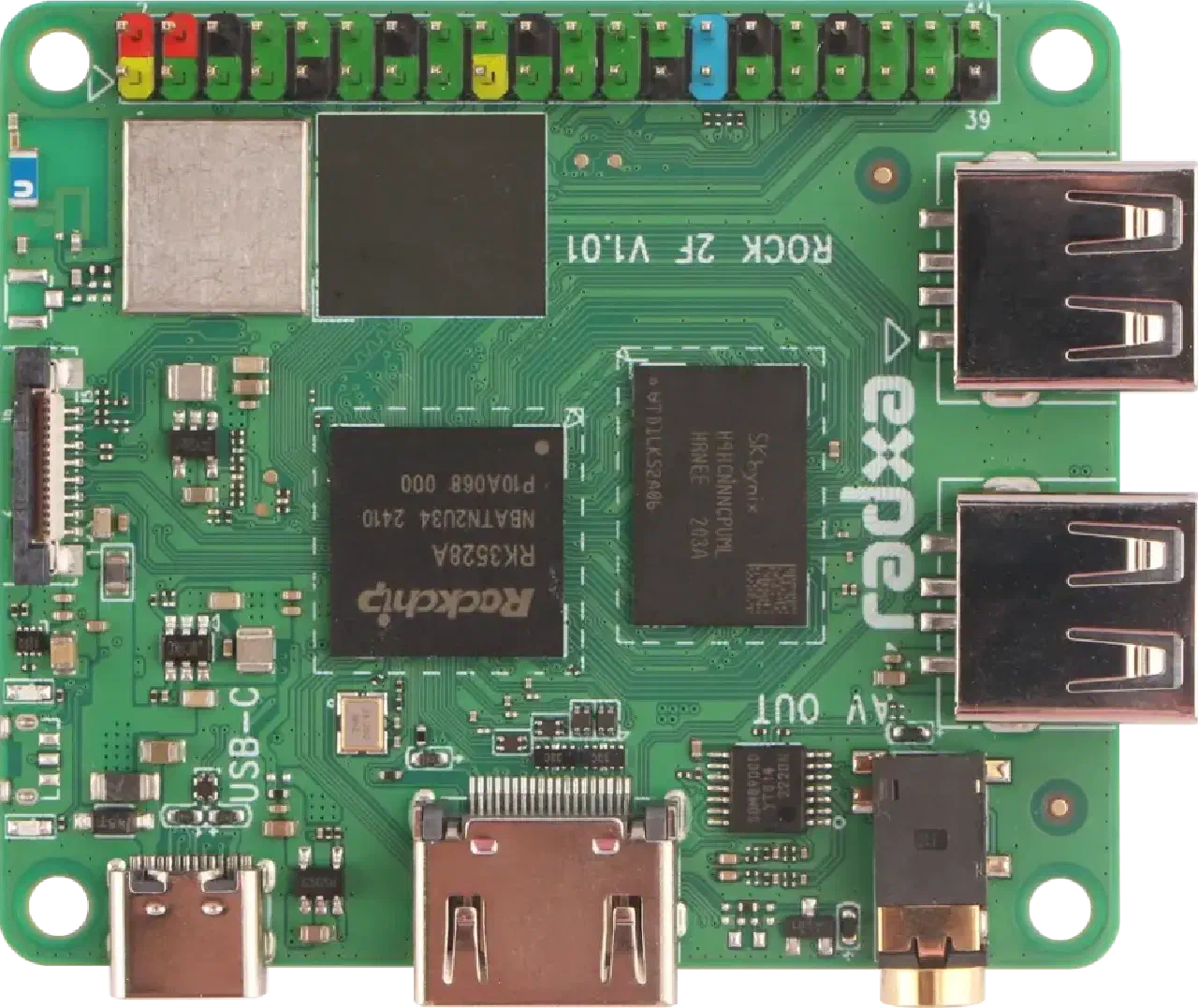

Boards with RK3528#
List of boards:
