Radxa Rock 2A#

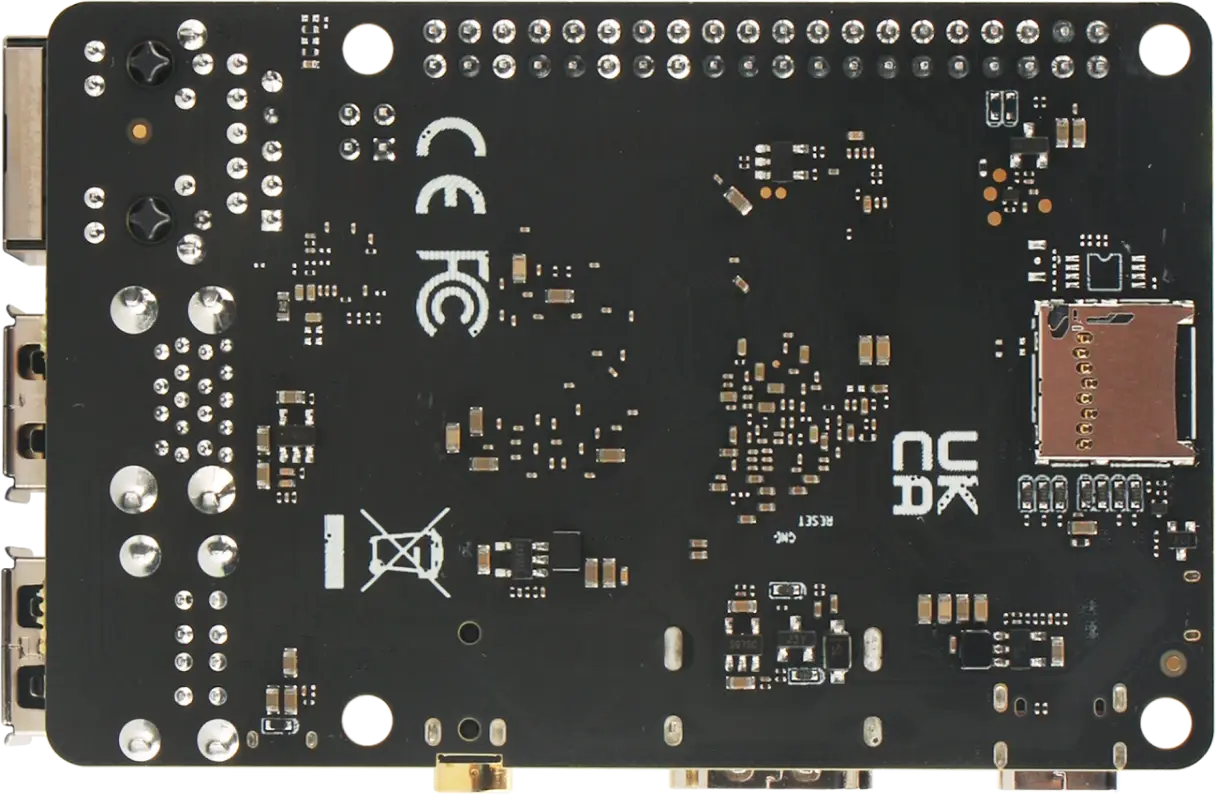

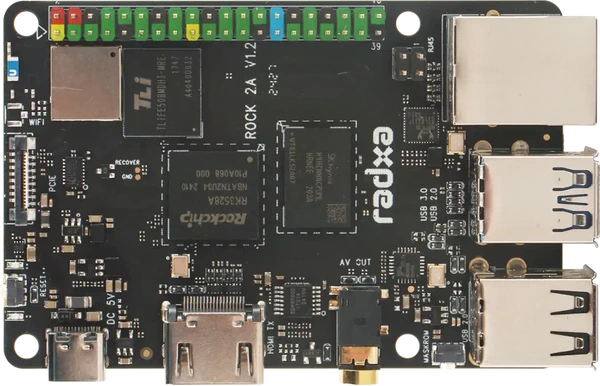

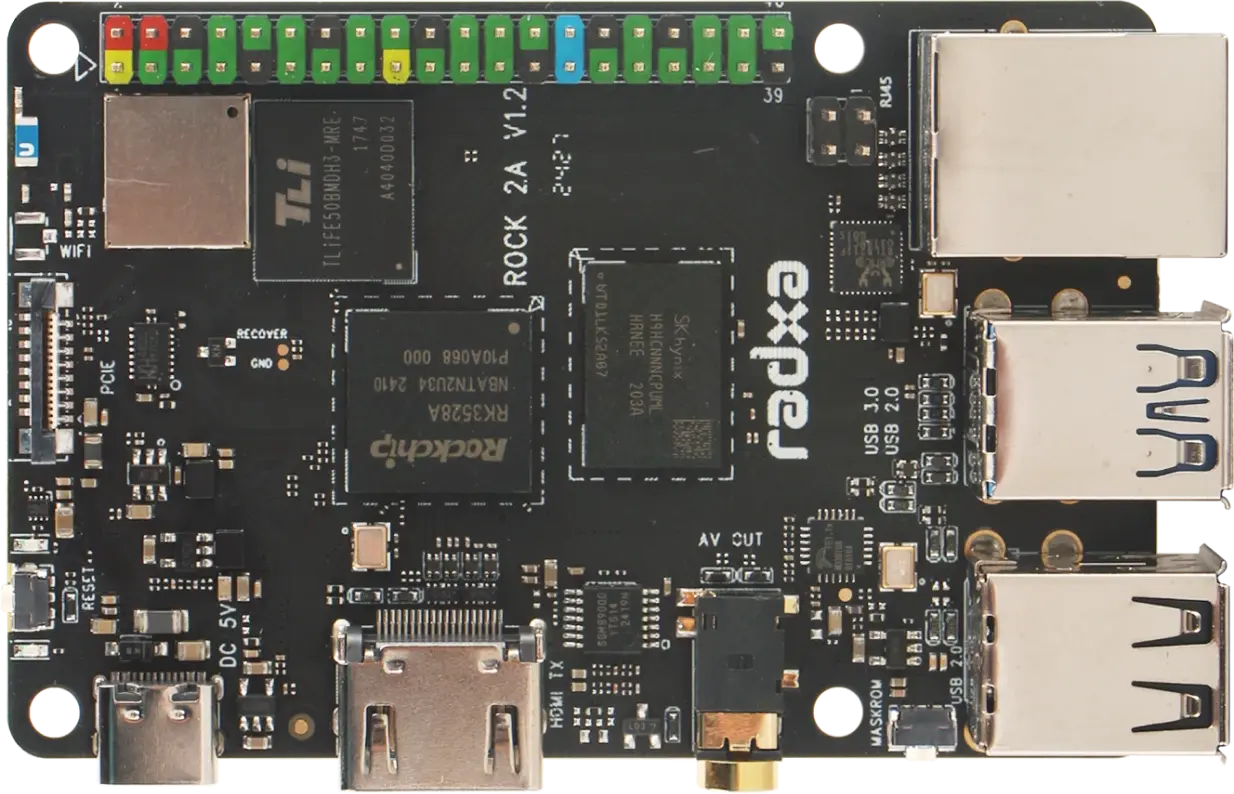

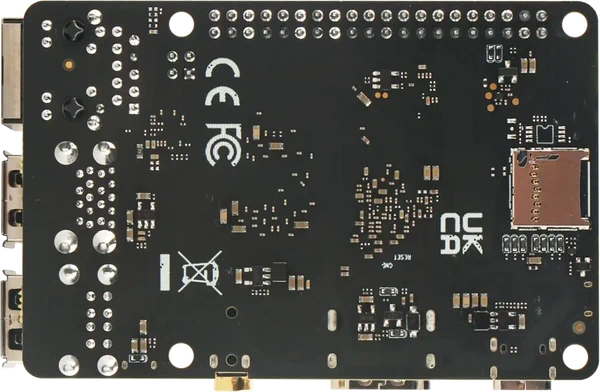

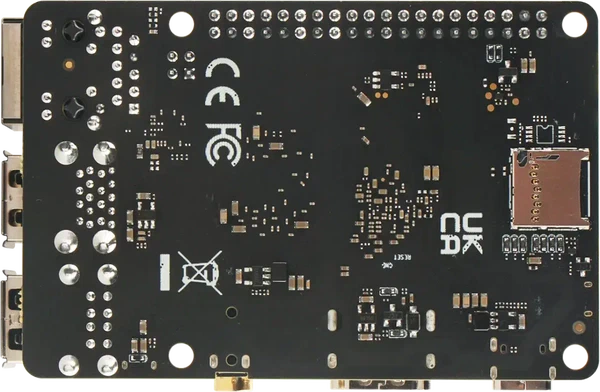

Board Pictures#
Hardware#
Specs
| SoC | Rockchip RK3528 (datasheet) |
|---|---|
| CPU | Quad-core ARM Cortex-A53 with Neon and FPU |
| RAM | DDR3(L)/LPDDR3/DDR4/LPDDR4/LPDDR4X, 32-bit, 4GB addressing |
| GPU | ARM Mali-450 - OpenGL ES 1.1/2.0, OpenVG 1.1 |
| VPU | 4K@60fps H.264/H.265/AVS2 decoder 1080p@60fps H.264/H.265 encoder |
Interfaces#
| I/O | Description |
|---|---|
| Wireless | Wi-Fi and Bluetooth (varies by model) |
| Ethernet | Gigabit Ethernet |
| USB | USB 3.0 and USB 2.0 ports |
| Video | HDMI 2.0 (up to 4K@60Hz) |
| Camera | MIPI CSI interfaces |
| Storage | MicroSD card slot Optional eMMC (eMMC 5.1) |
| Power | USB Type-C or DC power input |
| GPIO | GPIO Header |
