Radxa Rock 2F#

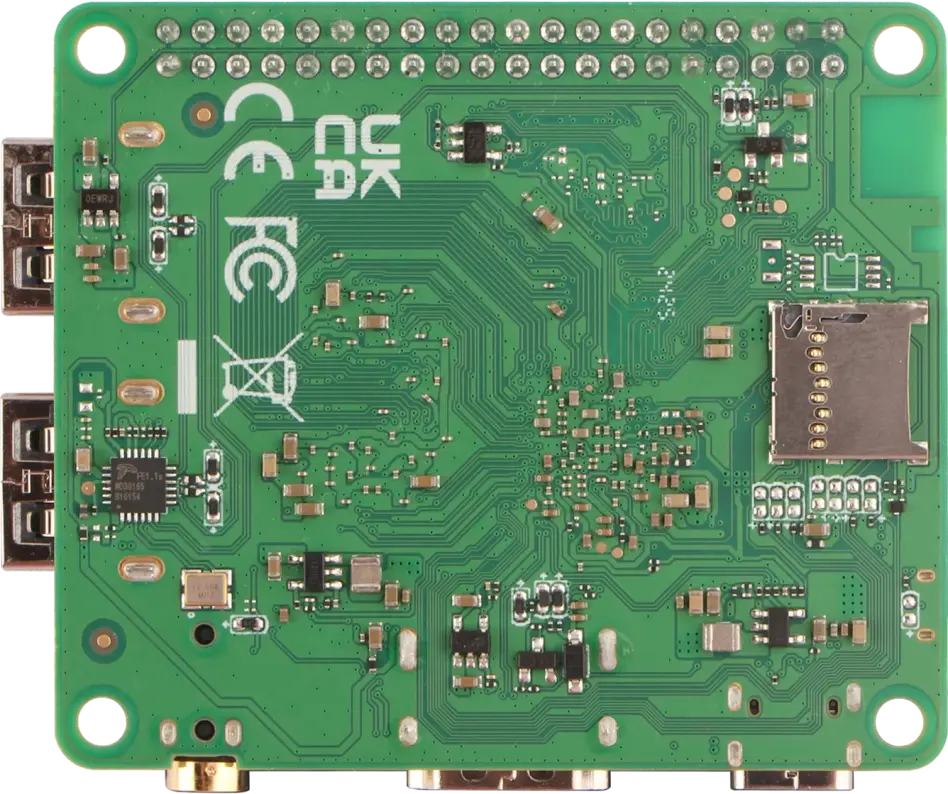

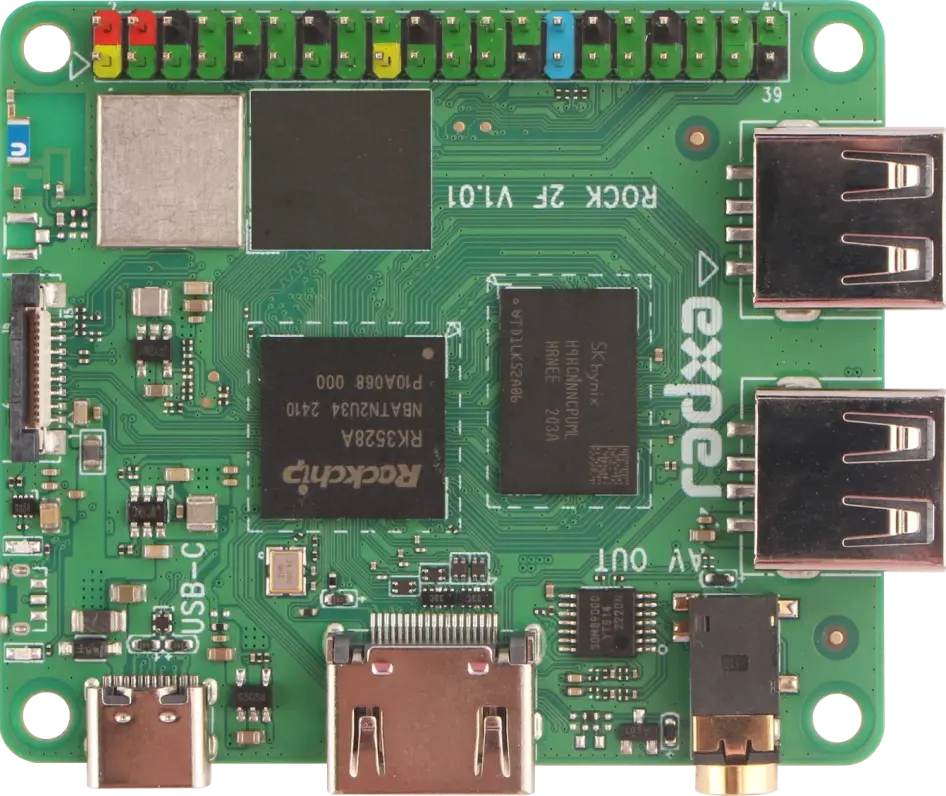

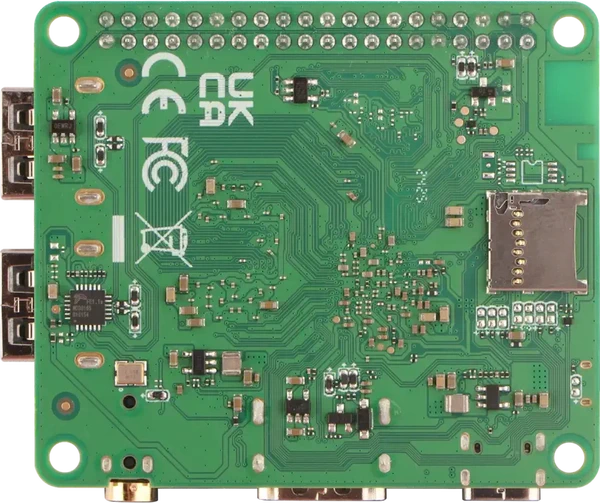

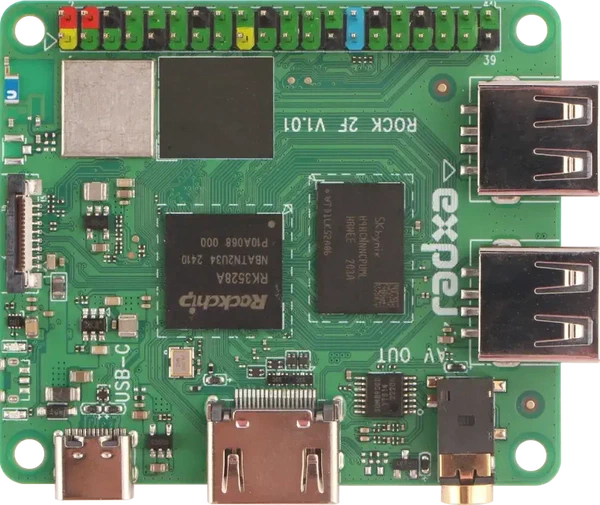

Board Pictures#
Hardware#
Specs
| SoC | Rockchip RK3528 (datasheet) |
|---|---|
| CPU | Quad-core ARM Cortex-A53 with Neon and FPU |
| RAM | LPDDR4/LPDDR4X |
| GPU | ARM Mali-450 - OpenGL ES 1.1/2.0, OpenVG 1.1 |
| VPU | 4K@60fps H.264/H.265/AVS2 decoder 1080p@60fps H.264/H.265 encoder |
Interfaces#
| I/O | Description |
|---|---|
| Wireless | Wi-Fi 6 & Bluetooth 5.4 |
| Ethernet | Dual 2.5G Ethernet (via HAT) |
| USB | USB ports |
| Video | HDMI 2.0 (up to 4K@60Hz) AV out (up to 720x576@60Hz) |
| Camera | MIPI CSI interfaces |
| Storage | MicroSD card slot Optional onboard eMMC |
| Power | Power input |
| GPIO | GPIO Header |
| PCIe | FPC connector with PCIe 2.0 x1 for HAT compatibility |
