Rockchip RK3566

General Specifications

Specs
SoCRockchip RK3566
CPU4× Cortex-A55 (Armv8.2-A) @ 1.8 GHz
MemoryLPDDR4 / LPDDR4X
32-bit
GPUMali-G52 2EE
Vendor: OpenGL ES 1.1/2.0/3.2, Vulkan 1.1, OpenCL 2.0
Mesa: OpenGL 3.1, OpenGL ES 3.1, Vulkan 1.3, OpenCL 3.0 (Panfrost, PanVK, Rusticl, Panfrost kernel)
VPUDecode: 4K@60fps H.264, H.265, VP9
Encode: 1080p@60fps H.264, H.265

Linux Support

  • Vendor BSP

    • Current Version (rkr5) based on: 6.1
    • Legacy: 5.10
      (versions do not compare to mainline)
  • Mainline kernel

    • Fully supported
    • Works but not all features are implemented.

Documentation

  • Technical Reference Manual

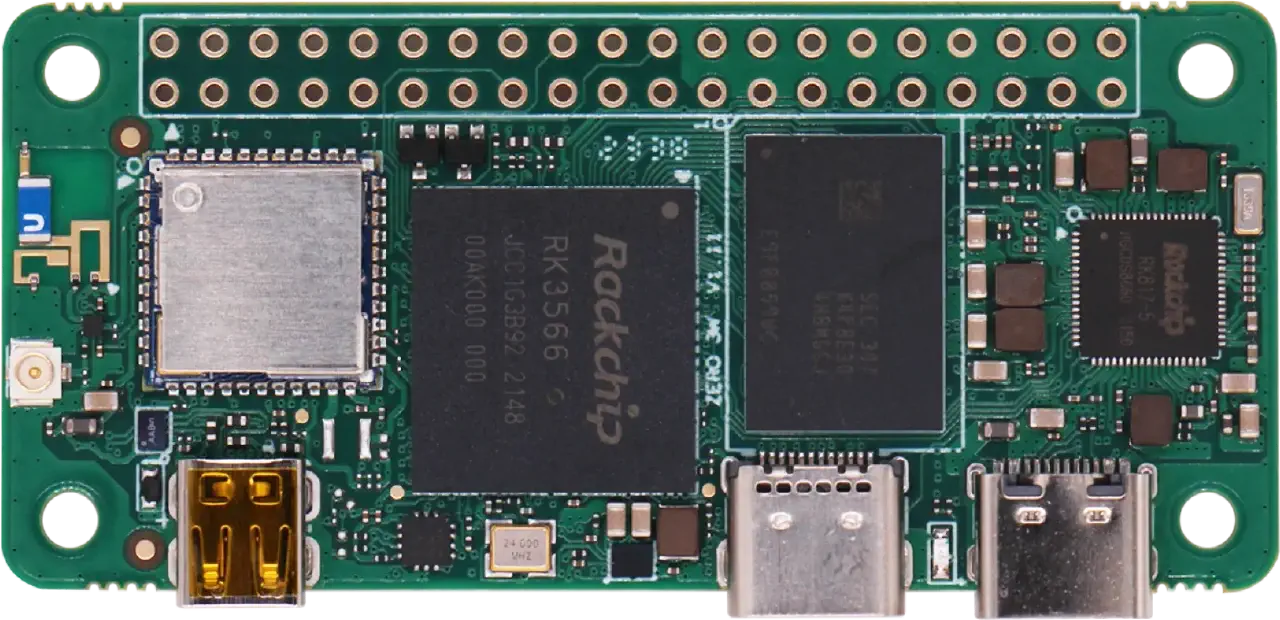

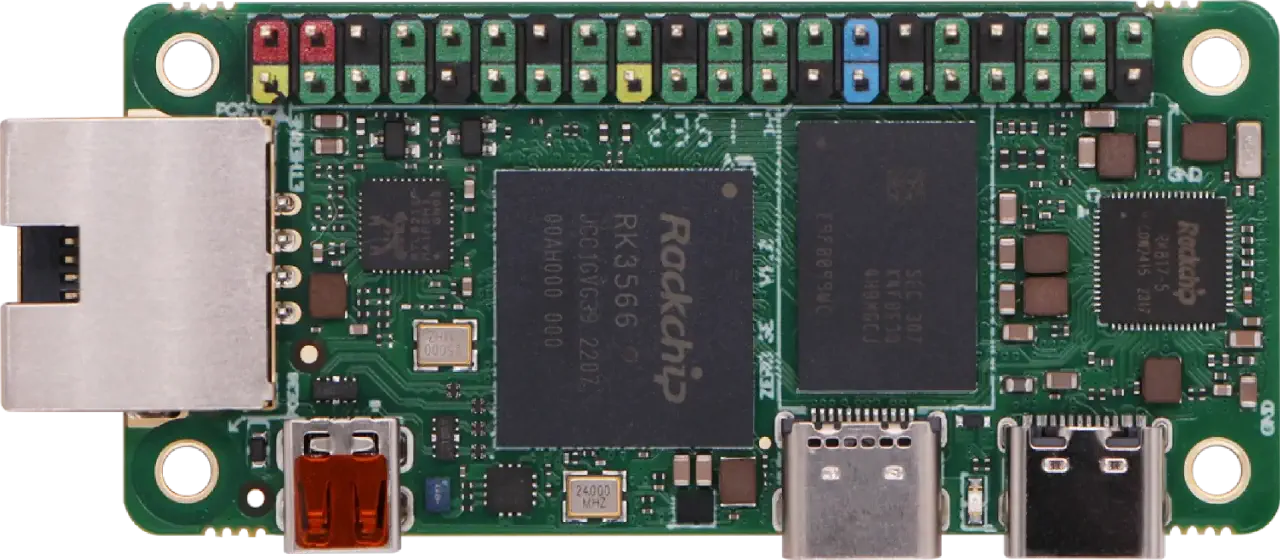

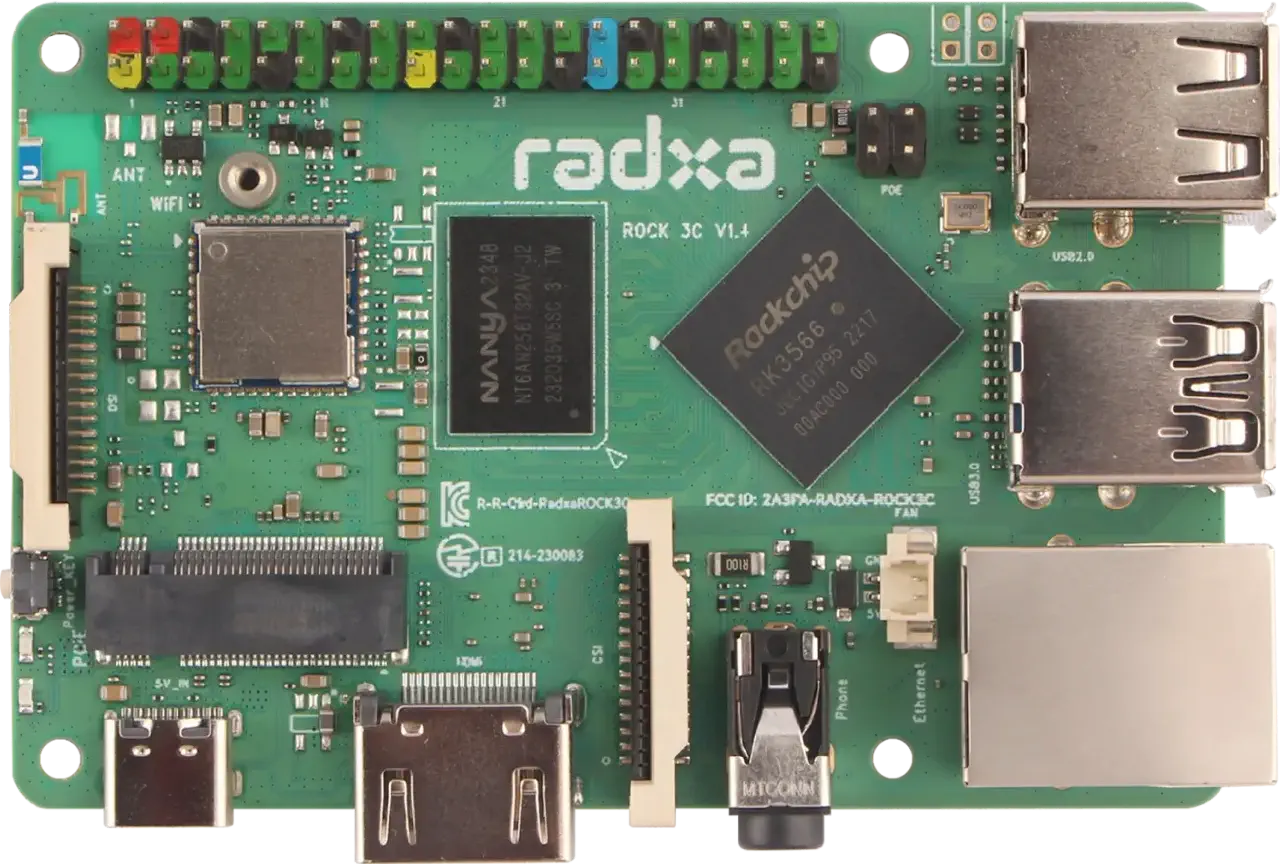

Boards with RK3566

List of boards:
