Radxa ZERO 2 Pro#

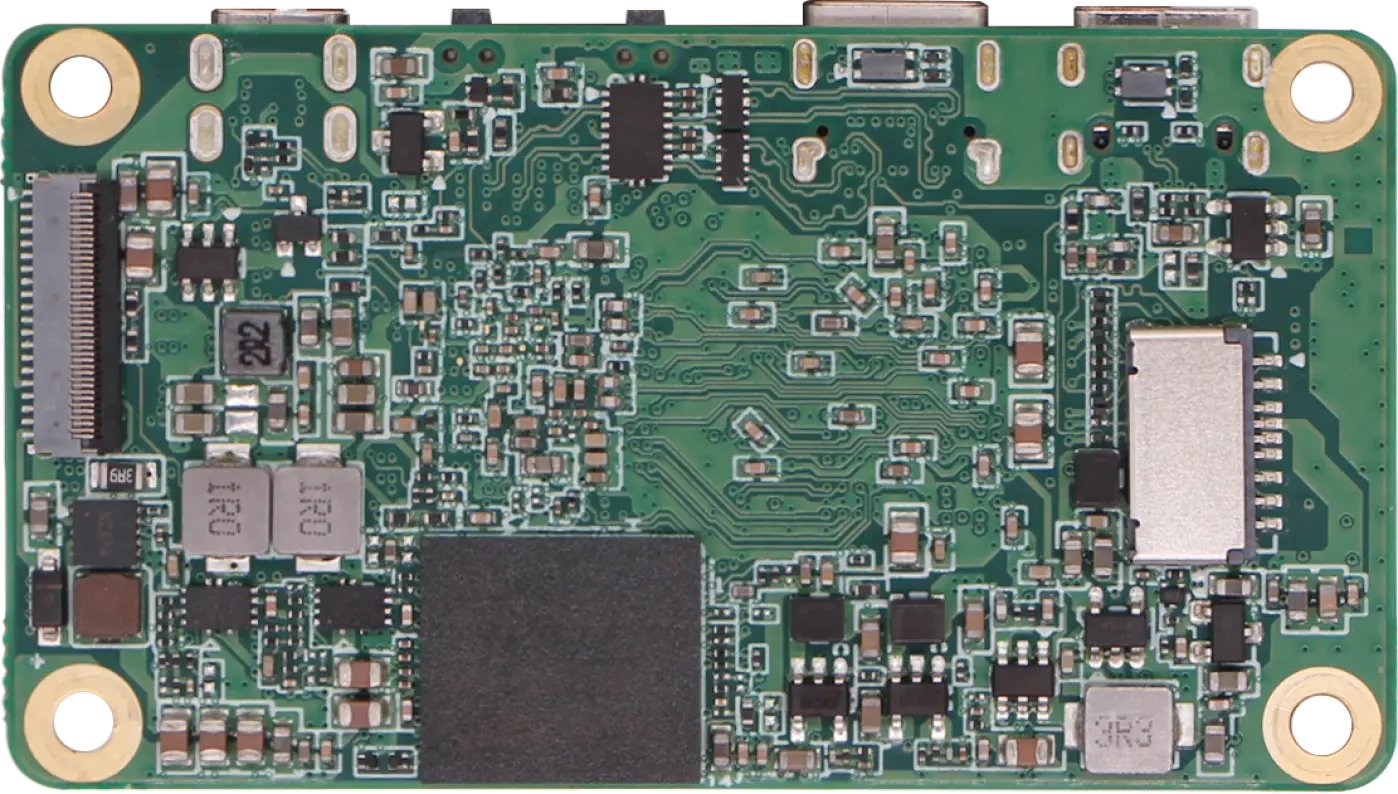

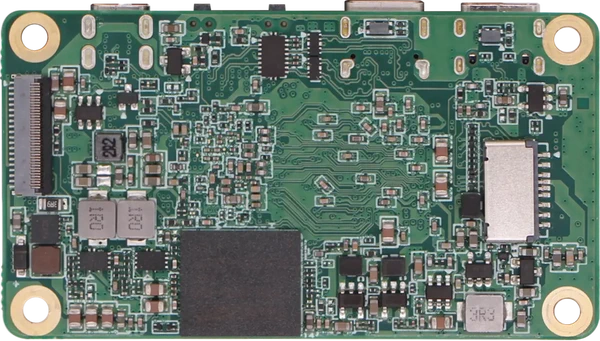

Board Pictures#
Hardware#
Specs
| SoC | Rockchip RK3566 |
|---|---|
| CPU | Quad-core ARM Cortex-A55 (up to 1.6GHz) |
| RAM | LPDDR4 - Configurations: 1GB / 2GB / 4GB / 8GB |
| GPU | Mali-G52-2EE - OpenGL ES 1.1/2.0/3.2 - Vulkan 1.1 - OpenCL 2.0 |
| VPU | 4K@60fps H.264/H.265/VP9 decoder 1080p@60fps H.264/H.265 encoder |
Interfaces#
| I/O | Description |
|---|---|
| Wireless | Wi-Fi and Bluetooth |
| Ethernet | Gigabit Ethernet via optional HAT |
| USB | 1x USB-C OTG port (power & data) USB 2.0 ports USB 3.0 port |
| Video | Micro HDMI (up to 4K@60Hz) |
| Camera | MIPI CSI interfaces |
| Storage | MicroSD card slot Optional eMMC |
| Power | USB Type-C power input (5V/2A) |
| GPIO | 40-Pin GPIO Header |
