Radxa Rock 3A#

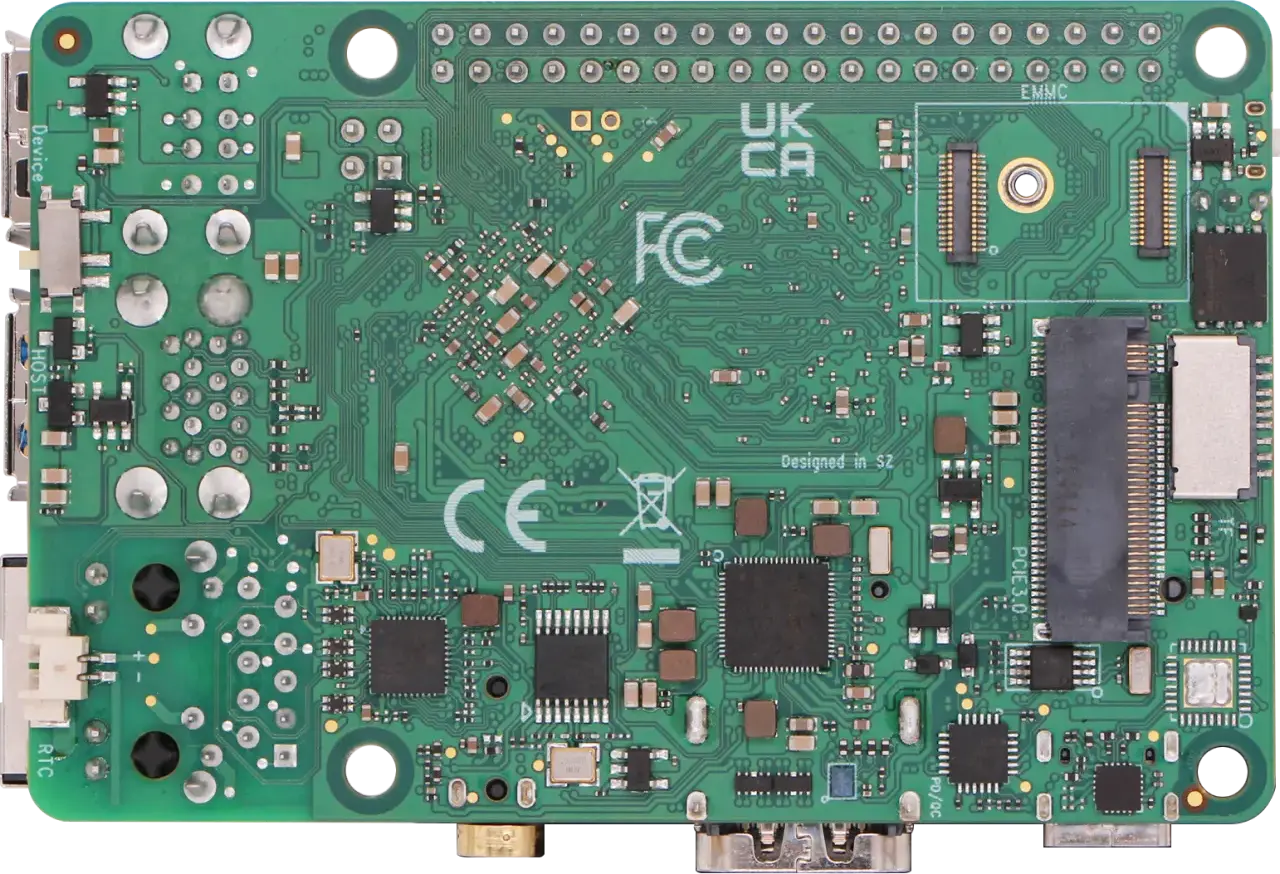

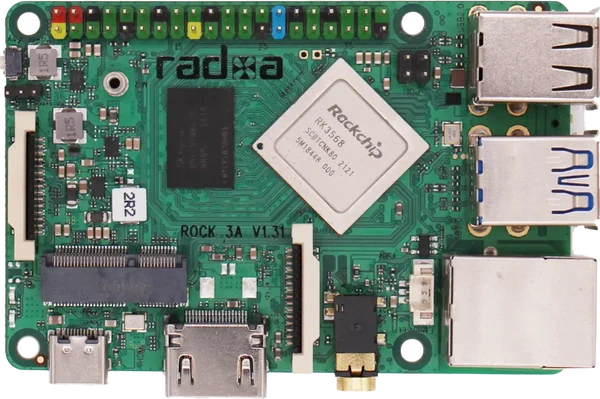

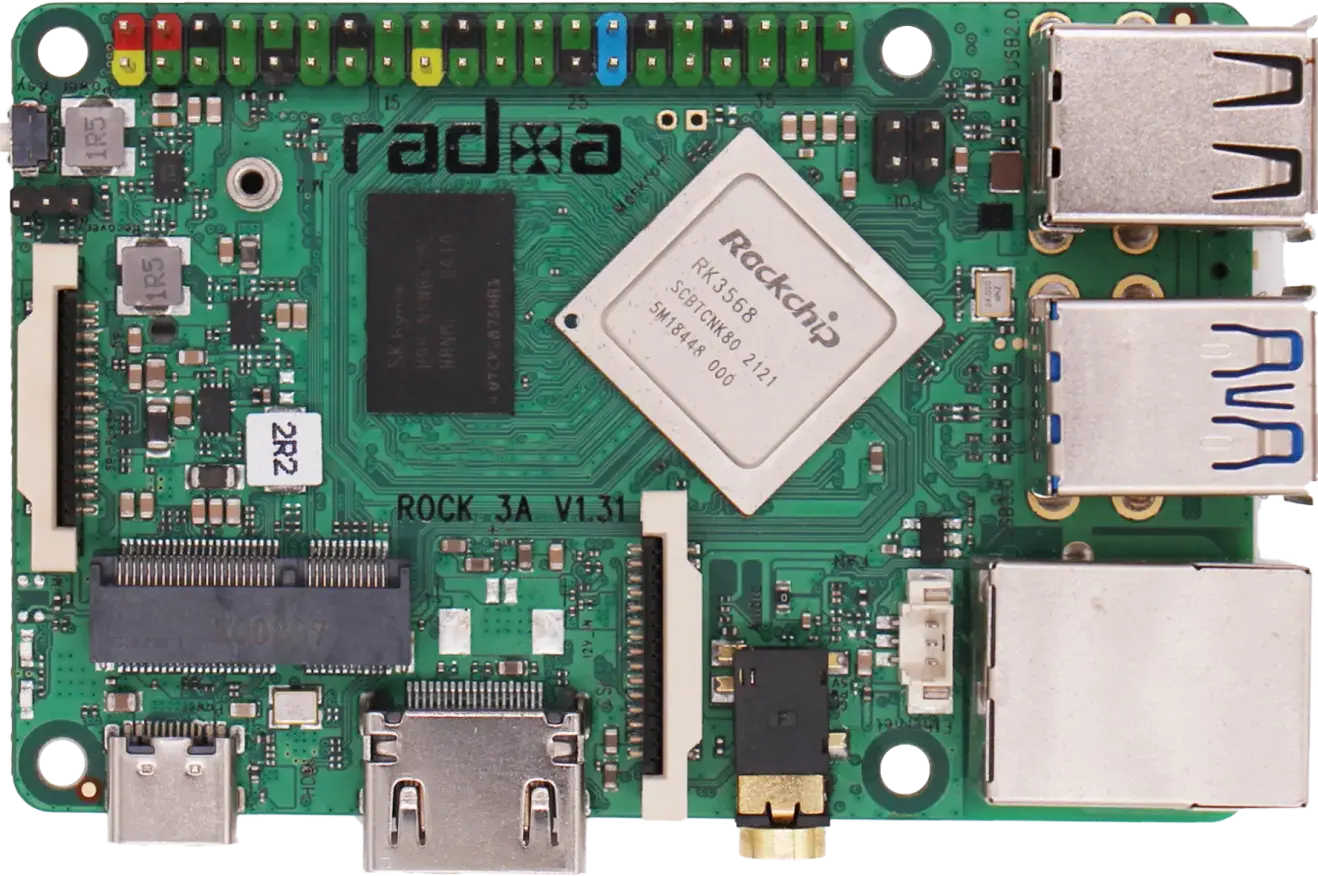

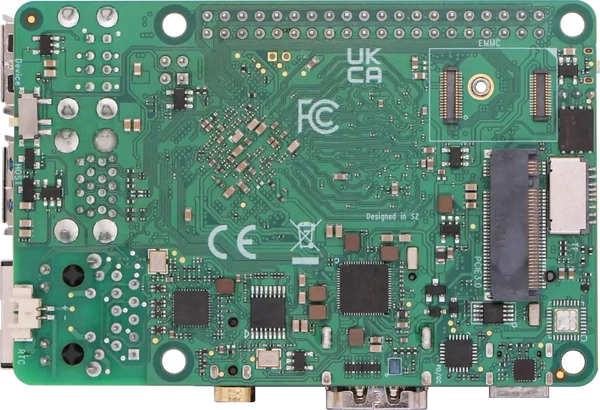

Board Pictures#

Hardware#

Specs
SoCRockchip RK3568
CPUQuad-core ARM Cortex-A55 (up to 2GHz)
RAM32bit LPDDR4/4X/3
GPUMali-G52EE
- OpenGL ES 1.1/2.0/3.2
- OpenCL 2.0
- Vulkan 1.1
VPU4Kp60 H.264/H.265/VP9 decoder
1080p60 H.264/H.265 encoder
NPU1TOPs, supports INT8/INT16/FP16/BFP16

Interfaces#

I/ODescription
WirelessWi-Fi and Bluetooth (varies by model)
EthernetGigabit Ethernet
USBUSB 3.0 and USB 2.0 ports
VideoHDMI (up to 4K@60Hz)
CameraMIPI CSI interfaces
StorageMicroSD card slot
Optional eMMC
PowerUSB Type-C power input
GPIO40-pin GPIO Header

Available OS images#

    Documentation / Links#

    Benchmarks#

    Guides#

    Articles#
