Rockchip RK3576

General Specifications

Specs
SoCRockchip RK3576
CPU4× Cortex-A72 (Armv8-A) @ 2.2 GHz
4× Cortex-A53 (Armv8-A) @ 1.8 GHz
MemoryLPDDR4 / LPDDR4X / LPDDR5
32-bit
GPUMali-G52 MC3
Vendor: OpenGL ES 1.1/2.0/3.2, Vulkan 1.2, OpenCL 2.1
Mesa: OpenGL 3.1, OpenGL ES 3.1, Vulkan 1.3, OpenCL 3.0 (Panfrost, PanVK, Rusticl, Panfrost kernel)
NPU6 TOPS
Supports INT4 / INT8 / INT16 / FP16 / BF16 / TF32
VPUDecode: 4K@120fps H.265, VP9, AV1, AVS2
Decode: 4K@60fps H.264
Encode: 4K@60fps H.264, H.265

Linux Support

  • Vendor BSP

    • Current Version (rkr5) based on: 6.1
    • Legacy: 5.10
      (versions do not compare to mainline)
  • Mainline kernel

    • Fully supported
    • Works but not all features are implemented.

Documentation

  • Technical Reference Manual

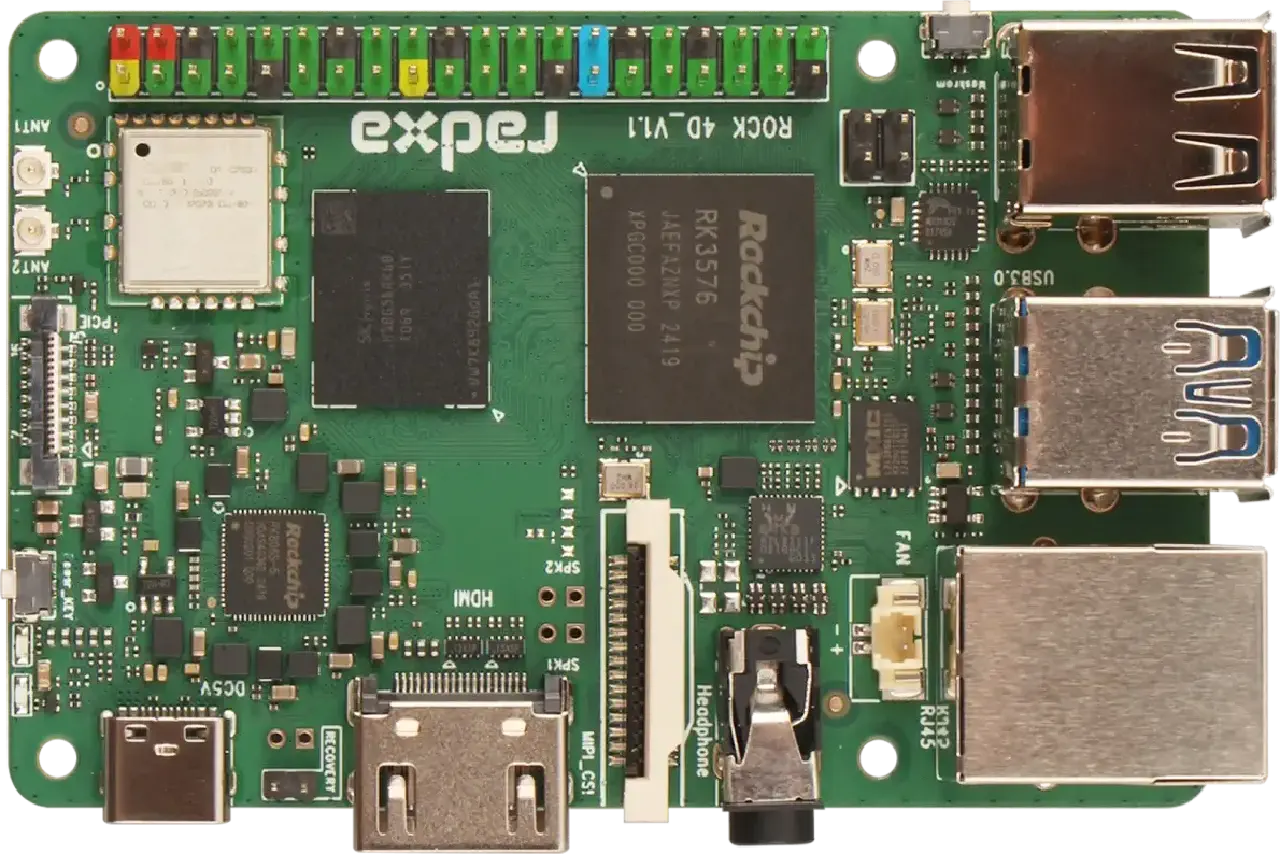

Boards with RK3576

List of boards:
