Radxa Rock 5 ITX+#

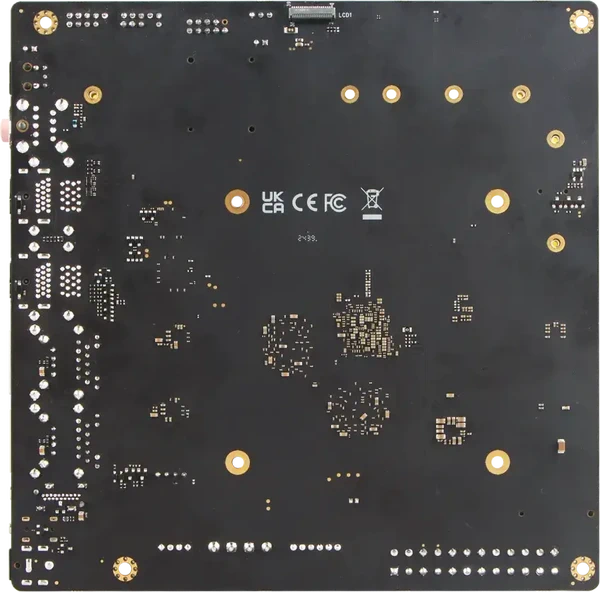

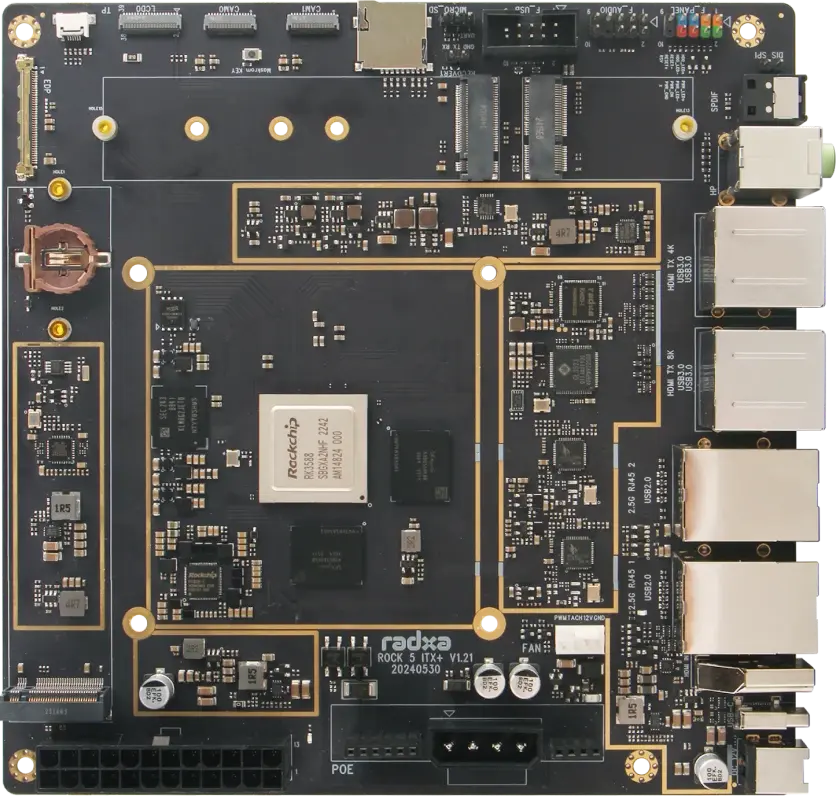

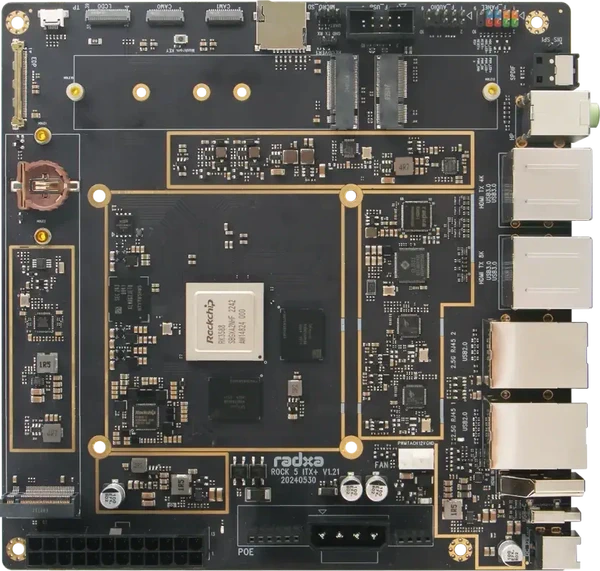

Board Pictures#
Hardware#
Specs
| SoC | Rockchip RK3588 |
|---|---|
| CPU | Quad-core ARM Cortex-A76 (up to 2.4GHz) and Quad-core ARM Cortex-A55 (up to 1.8GHz) |
| RAM | Dual Channel 64-bit 4GB/8GB/16GB/32GB LPDDR4X at 2133MT/s |
| Storage | eMMC Connector: Support high performance eMMC module up to 512GB SPI Flash: 16MB SPI Flash for Bootloader M.2 M Key for NVMe SSD |
| GPU | Mali-G610 MP4, compatible with OpenGLES 1.1, 2.0, and 3.2, OpenCL up to 2.2 and Vulkan1.2 |
| VPU | 8K@60fps H.265 and VP9 decoder 8K@30fps H.264 decoder 4K@60fps AV1 decoder 8K@30fps H.264 and H.265 encoder |
| NPU | 6TOPs | supports INT4/INT8/INT16/FP16 |
Interfaces#
| I/O | Description |
|---|---|
| Wireless | Standard M.2 E WiFi / BT modules |
| Ethernet | On-board PCIe 2.5GbE (RTL8125) controller |
| USB | Multiple USB 3.1 and USB 2.0 ports |
| Video | Output: 1x 8Kp60 HDMI2.1 1x 4Kp60 HDMI2.1 1x DP via USB Type C port Input: - 4Kp60 HDMI2.1 |
| MicroSD | support up to SDR104 mode |
| Power | 24-pin ATX power connector USB Type‑C™ PD Version 2.0 |
| GPIO | Raspberry Pi standard 40-pin header |
| PCIe | PCIe x16 slot M.2 M Key Connector: Support 2280 NVMe SSD (4x3.0) M.2 E Key Connector: 1x2.1 |
| MIPI | 1x 4 lane DSI 2x 2 lane CSI for camera up to 48M |
| RTC | powered from external battery |
