Radxa Rock 5B+

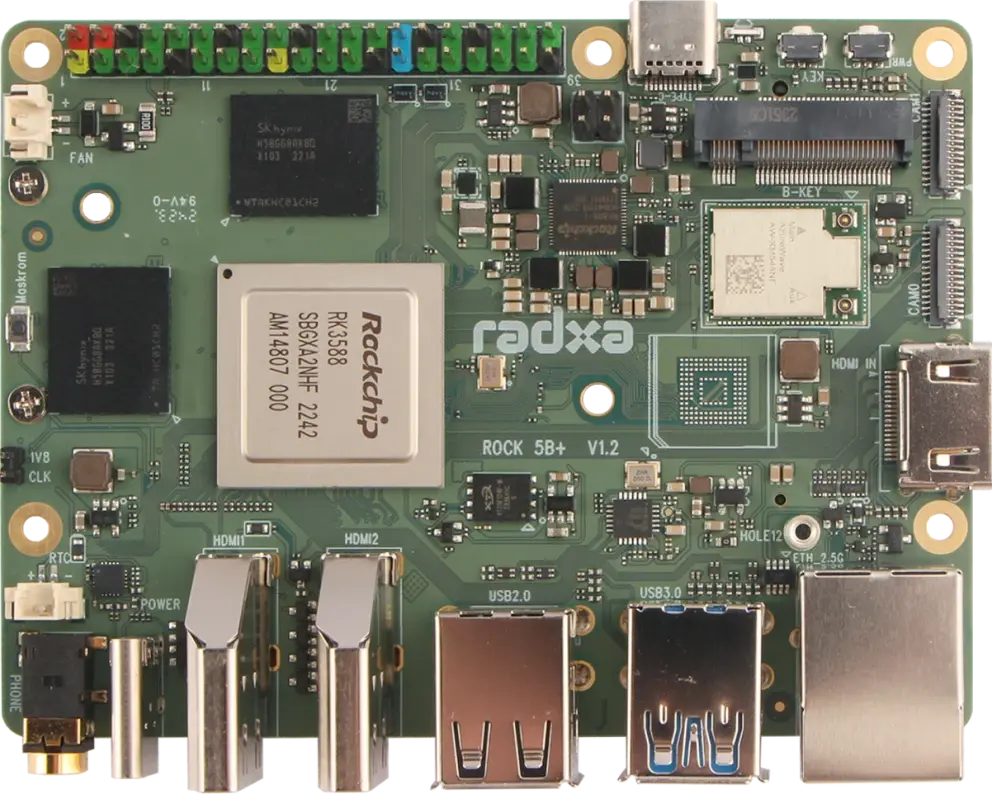

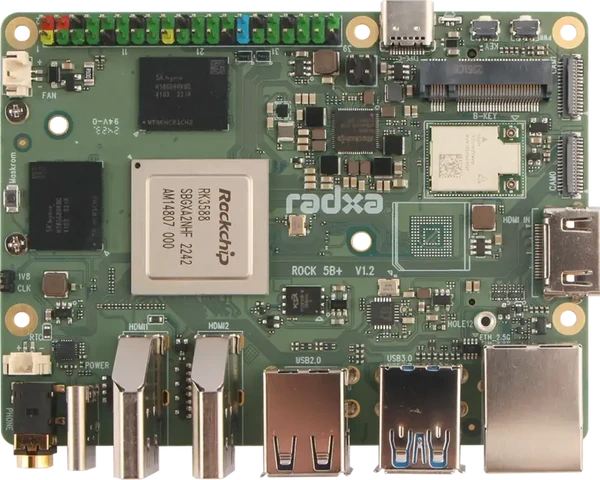

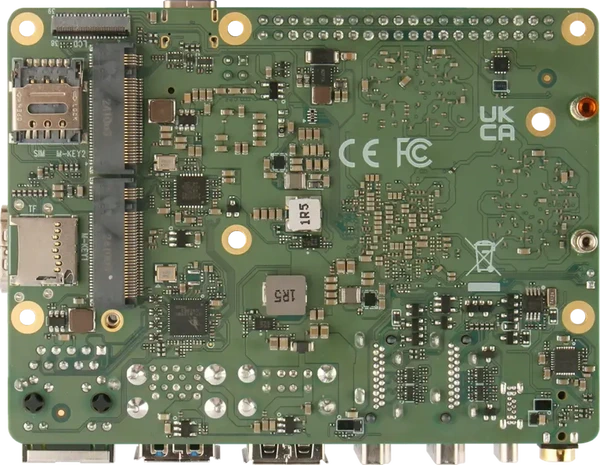

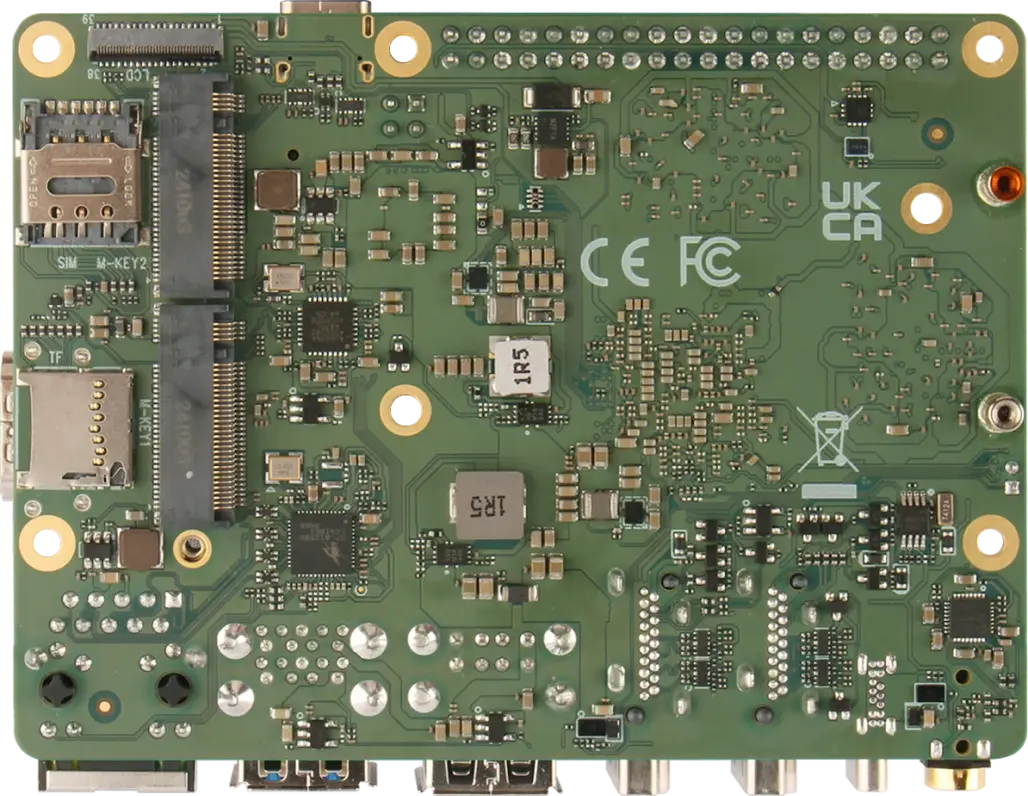

Board Pictures

Hardware

Specs
SoCRockchip RK3588
CPU4× Cortex-A76 (Armv8.2-A) @ 2.4 GHz
4× Cortex-A55 (Armv8.2-A) @ 1.8 GHz
MemoryLPDDR4X / LPDDR5
Dual channel
GPUMali-G610 MP4
Vendor: OpenGL ES 1.1/2.0/3.2, Vulkan 1.2, OpenCL 2.2
Mesa: OpenGL 3.1, OpenGL ES 3.1, Vulkan 1.4, OpenCL 3.0 (Panfrost, PanVK, Rusticl, Panthor kernel)
NPU6 TOPS
Supports INT4 / INT8 / INT16 / FP16
VPUDecode: 8K@60fps H.265, VP9
Decode: 8K@30fps H.264
Decode: 4K@60fps AV1
Encode: 8K@30fps H.264, H.265
SoC pageRockchip RK3588

Interfaces

BoardRadxa Rock 5B+
MemoryLPDDR5-4800
64-bit, 2 channels
4 / 8 / 16 / 32 GB
Camera2× camera ports (each 4-lane MIPI CSI, splittable into 2× 2-lane)
DisplayOutput: 1× HDMI 2.1 (8K@60), 1× HDMI 2.1 (4K@60), 1× DP via front USB Type-C (4K@60), 1× 4-lane MIPI DSI
Input: 1× Standard HDMI 2.1 input (4K@60)
StorageOnboard eMMC (16/32/64/128/256 GB, SKU-selected), microSD (SDR104)
PCIe2× M.2 M-Key: PCIe Gen 3 x2 (2280 NVMe SSD each; SATA SSDs not supported)
USB1× USB Type-C (Back port: power input only (USB PD 2.0))
1× USB 3.0 Type-C (Front port: USB 3.0 OTG/HOST; DP Alt Mode up to 4Kp60; no power input)
2× USB 3.0 Type-A
2× USB 2.0 Type-A
Ethernet1× 2.5 GbE (PoE with add-on PoE HAT)
Wi-FiIEEE 802.11a/b/g/n/ac/ax (Wi-Fi 6), onboard
BluetoothBT 5.2 with BLE, onboard
GPIORaspberry Pi 40-pin header
Audio4-ring 3.5 mm headphone jack (drives 32 Ω headphones) with microphone input
PowerUSB Type-C PD 2.0 (9 V, 12 V, 15 V, 20 V) on back port only; 5V on GPIO pins 2 & 4
RTCPowered from external battery
CellularM.2 B-Key socket (USB signaling) + SIM card slot for 4G modules

Available OS images

Benchmarks

Setup
Linux
higher is betterRankings
  • Single-Core Score #6 of 11 boards · 49 % of Radxa Dragon Q8B
    813
  • Multi-Core Score #6 of 11 boards · 43 % of Radxa Dragon Q8B
    2,944
Driver
Mali g24p0
higher is betterRankings
  • Vulkan Score #2 of 3 boards · 26 % of Radxa Orion O6N
    3,637
