Radxa Rock 5A

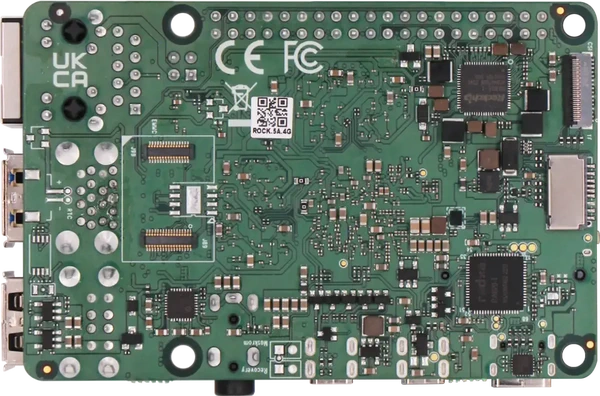

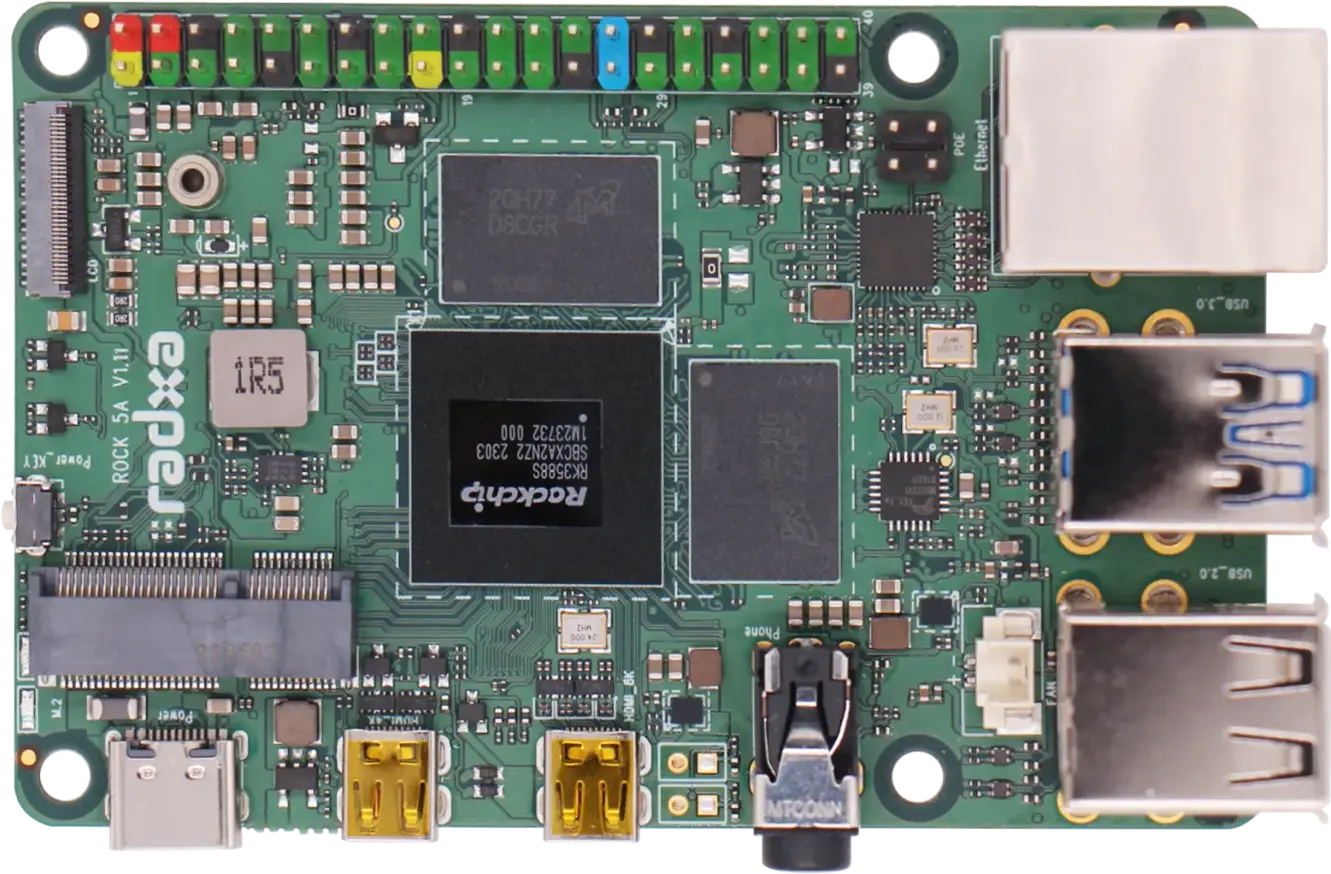

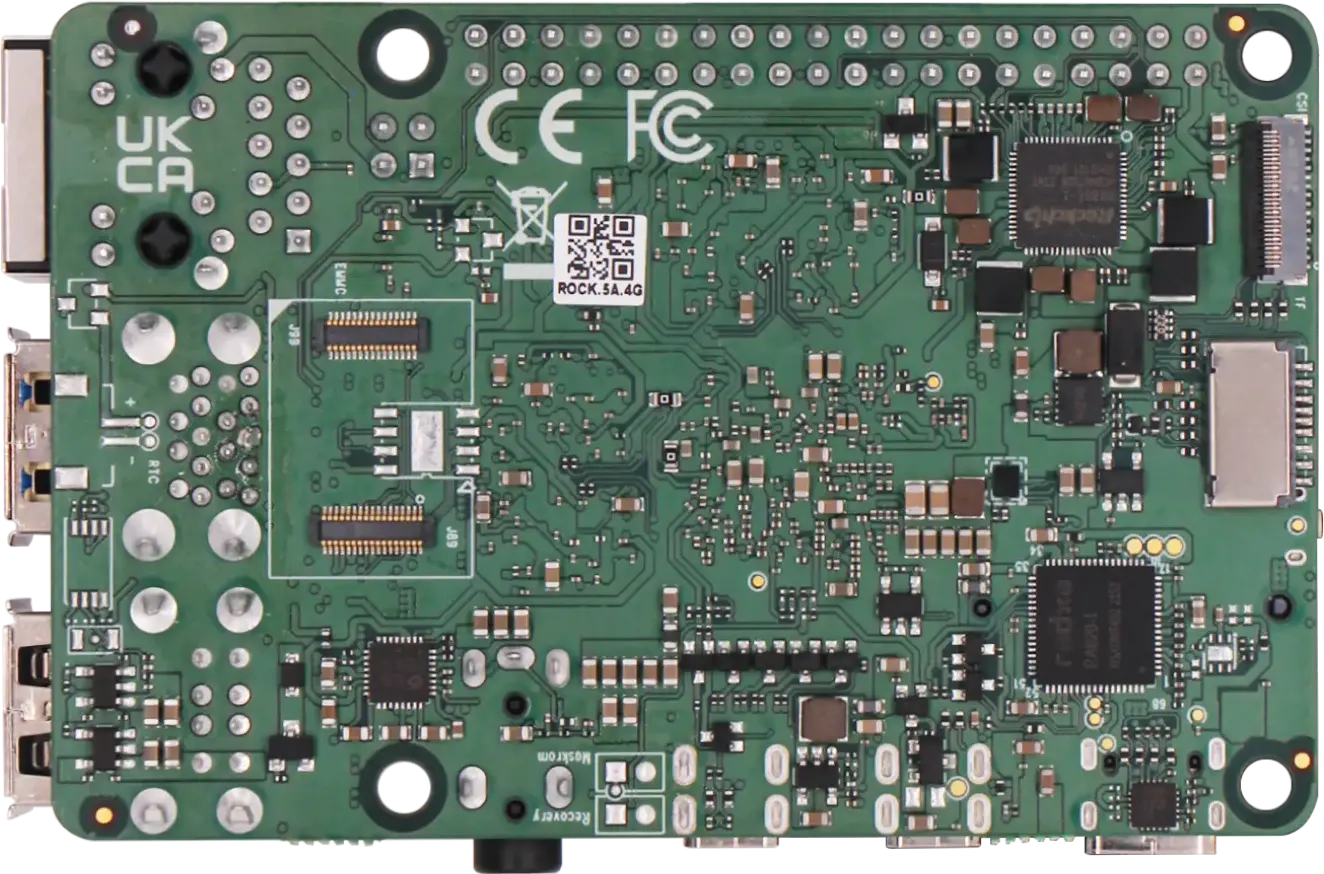

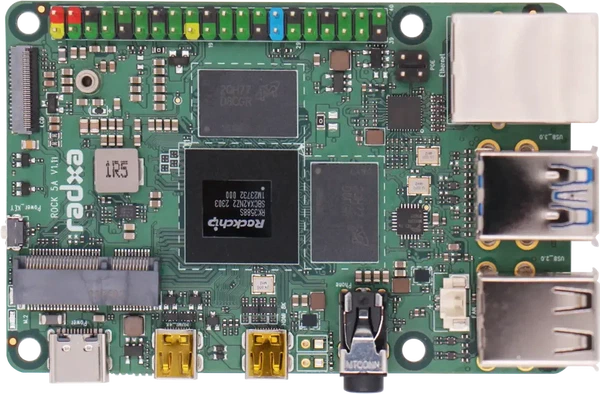

Board Pictures

Hardware

Specs
SoCRockchip RK3588S
Process8 nm (LP)
CPU4× Cortex-A76 (Armv8.2-A) @ 2.4 GHz
4× Cortex-A55 (Armv8.2-A) @ 1.8 GHz
MemoryLPDDR4 / LPDDR4X / LPDDR5
64-bit
Up to 32 GB
GPUMali-G610 MP4
Vendor: OpenGL ES 1.1/2.0/3.2, Vulkan 1.2, OpenCL 2.2
Mesa: OpenGL 3.1, OpenGL ES 3.1, Vulkan 1.4, OpenCL 3.0 (Panfrost, PanVK, Rusticl, Panthor kernel)
NPU6 TOPS
Supports INT4 / INT8 / INT16 / FP16
VPUDecode: 8K@60fps H.265, VP9, AVS2
Decode: 8K@30fps H.264
Decode: 4K@60fps AV1
Encode: 8K@30fps H.264, H.265
Camera2× MIPI D-PHY/C-PHY CSI, 4× MIPI CSI-2 (2-lane), DVP, HDMI 2.0 RX (4K@60, HDCP 2.3)
Display8K@60, up to 4 displays
HDMI 2.1 / eDP 1.3, DP 1.4a (shared with USB 3.1), MIPI DSI, BT.1120
StorageeMMC 5.1, SD 3.0, FSPI
PCIe2× PCIe Gen 2.1 x1 (combo PHYs, shared with SATA / USB 3.1; no PCIe 3.0)
SATASATA 3.0
USB1× USB 3.1 Gen1 (OTG, shared with DP)
1× USB 3.1 Gen1 (host, shared with a combo PHY)
2× USB 2.0
Ethernet1× 1 GbE (RGMII)
CAN3× CAN
I/O5× SPI, 9× I2C, 10× UART, 12-bit SARADC
Audio2× 8-channel I2S, 2× 2-channel I2S, 2× S/PDIF, 2× 8-channel PDM, VAD
PackageFCCSP1253L, 17 × 17 mm
SoC pageRockchip RK3588s

Interfaces

BoardRadxa Rock 5A
MemoryLPDDR4X-4266
64-bit, 2 channels
Camera1× 4-lane MIPI CSI camera port (splittable into 2× 2-lane)
Display1× Micro HDMI 2.1 (8K@60), 1× Micro HDMI 2.1 (4K@60), 1× 4-lane MIPI DSI
StorageeMMC module connector (eMMC 5.1, >8 GB, no max specified) — shares slot with an optional SPI NOR flash module (mutually exclusive), microSD (SDR104)
PCIe1× M.2 E-Key: PCIe Gen 2.1 x1 (PCIe 2.1 or SATA, plus USB 2.0; Wi-Fi 6 module. No M.2 M-Key / NVMe slot on this board)
USB2× USB 2.0 Type-A
1× USB 3.0 Type-A
1× USB 3.0 Type-A (OTG/HOST)
Ethernet1× 1 GbE (PoE with add-on PoE HAT)
Wi-FiVia standard M.2 E-Key Wi-Fi / BT modules
GPIORaspberry Pi 40-pin header
Audio4-ring 3.5 mm headphone jack (drives 32 Ω headphones) with microphone input
PowerUSB Type-C PD 2.0 (9 V/2 A, 12 V/2 A, 15 V/2 A, 20 V/2 A) or QC 2.0/3.0 (9 V/2 A, 12 V/2 A); 5V on GPIO pins 2 & 4
RTCPowered from external battery
Cooling2-pin 1.25 mm fan header (PWM, no tach)
Form factorRaspberry Pi-like compact SBC
Dimensions85 × 56 mm

Available OS images

Benchmarks

SBCwiki.com does not have any benchmark data for Radxa Rock 5A yet. Check sbc.compare for results.
