Radxa Rock 5C

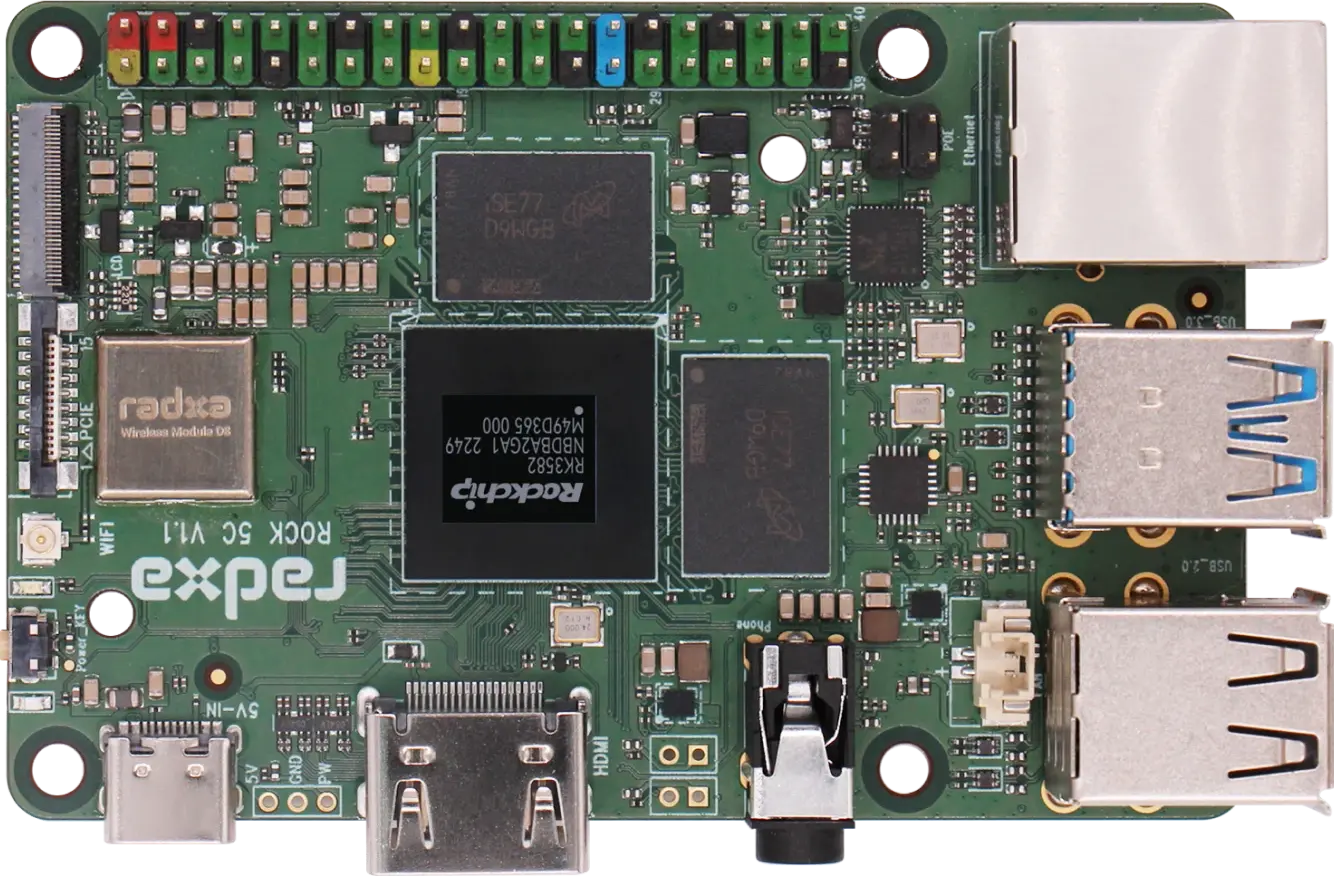

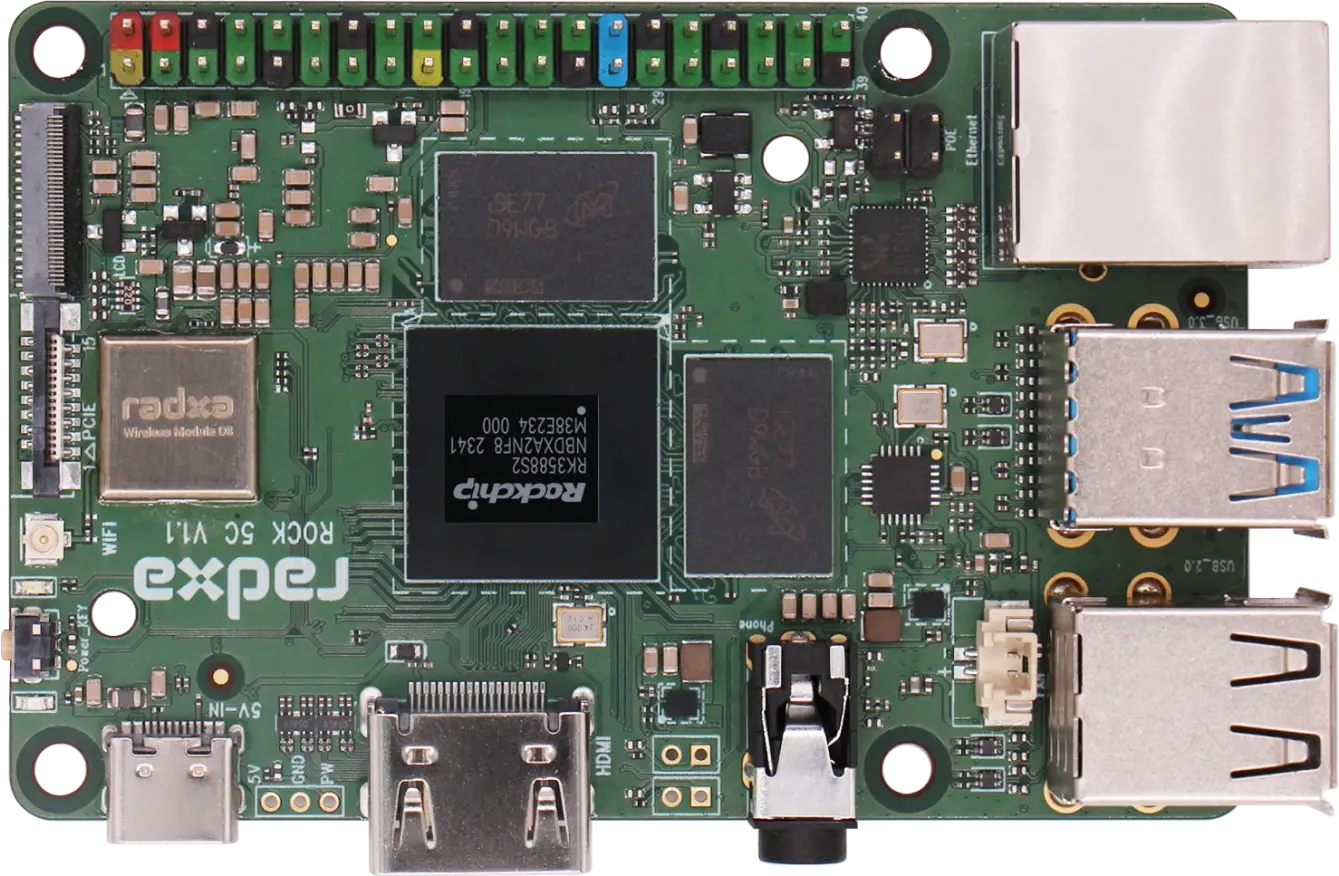

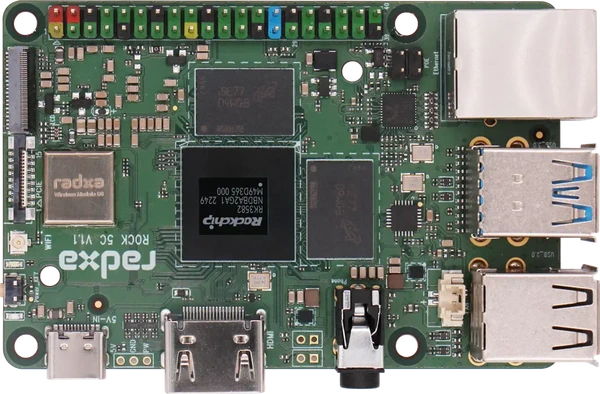

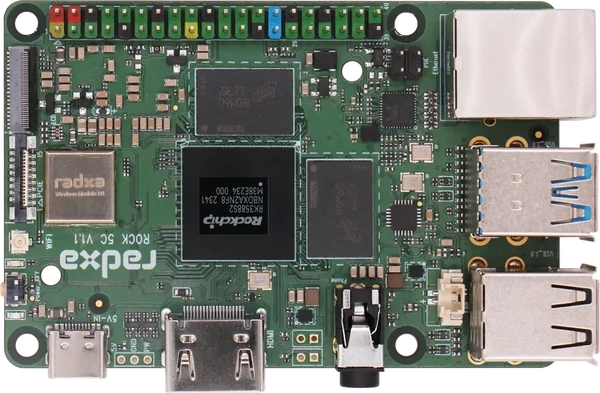

Board Pictures

Hardware

Specs
SoCRockchip RK3588S2 / RK3582
Process8 nm (LP)
CPU4× Cortex-A76 (Armv8.2-A) @ 2.4 GHz
4× Cortex-A55 (Armv8.2-A) @ 1.8 GHz
MemoryLPDDR4 / LPDDR4X / LPDDR5
64-bit
Up to 32 GB
GPUMali-G610 MP4
Vendor: OpenGL ES 1.1/2.0/3.2, Vulkan 1.2, OpenCL 2.2
Mesa: OpenGL 3.1, OpenGL ES 3.1, Vulkan 1.4, OpenCL 3.0 (Panfrost, PanVK, Rusticl, Panthor kernel)
NPU6 TOPS
Supports INT4 / INT8 / INT16 / FP16
VPUDecode: 8K@60fps H.265, VP9, AVS2
Decode: 8K@30fps H.264
Decode: 4K@60fps AV1
Encode: 8K@30fps H.264, H.265
Camera2× MIPI D-PHY/C-PHY CSI, 4× MIPI CSI-2 (2-lane), DVP, HDMI 2.0 RX (4K@60, HDCP 2.3)
Display8K@60, up to 4 displays
HDMI 2.1 / eDP 1.3, DP 1.4a (shared with USB 3.1), MIPI DSI, BT.1120
StorageeMMC 5.1, SD 3.0, FSPI
PCIe2× PCIe Gen 2.1 x1 (combo PHYs, shared with SATA / USB 3.1; no PCIe 3.0)
SATASATA 3.0
USB1× USB 3.1 Gen1 (OTG, shared with DP)
1× USB 3.1 Gen1 (host, shared with a combo PHY)
2× USB 2.0
Ethernet1× 1 GbE (RGMII)
CAN3× CAN
I/O5× SPI, 9× I2C, 10× UART, 12-bit SARADC
Audio2× 8-channel I2S, 2× 2-channel I2S, 2× S/PDIF, 2× 8-channel PDM, VAD
PackageFCCSP1253L, 17 × 17 mm
SoC pageRockchip RK3588s

Interfaces

BoardRadxa Rock 5C
MemoryLPDDR4X-4266
64-bit, 2 channels
Camera1× 4-lane MIPI CSI camera port (splittable into 2× 2-lane)
Display1× HDMI 2.1 (8K@60), 1× MIPI DSI (up to 2K)
StorageeMMC module connector (eMMC 5.1, >8 GB, no max specified) — shares slot with an optional SPI NOR flash module (mutually exclusive), microSD
PCIe1× FPC connector: PCIe Gen 2.1 x1 (Requires add-on expansion board/HAT for SSD, SATA, or 2.5GbE. No M.2 slots on this board)
USB2× USB 2.0 Type-A
1× USB 3.0 Type-A
1× USB 3.0 Type-A (OTG/HOST)
Ethernet1× 1 GbE (PoE with add-on PoE HAT; 2.5GbE possible via FPC expansion HAT)
Wi-FiIEEE 802.11a/b/g/n/ac/ax (Wi-Fi 6), onboard, external antenna connector
BluetoothBT 5.4 with BLE, onboard
GPIORaspberry Pi 40-pin header
Audio4-ring 3.5 mm headphone jack (drives 32 Ω headphones) with microphone input
PowerUSB Type-C, fixed 5V input; 5V on GPIO pins 2 & 4 (no USB PD / multi-voltage support)
RTCPowered from external battery
Cooling2-pin 1.25 mm fan header (PWM, no tach)
Form factorRaspberry Pi-like compact SBC
Dimensions85 × 56 mm

Available OS images

Benchmarks

SBCwiki.com does not have any benchmark data for Radxa Rock 5C yet. Check sbc.compare for results.
