Broadcom BCM2712 | RaspberryPi 5 #

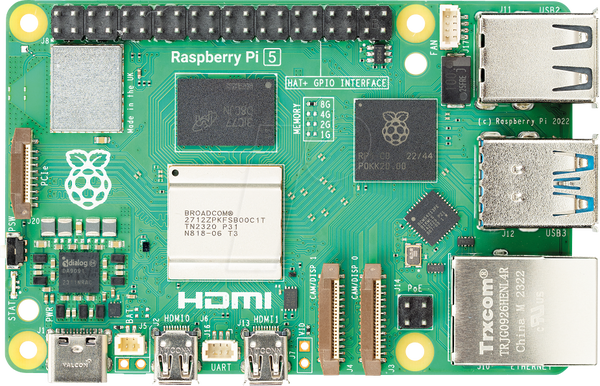

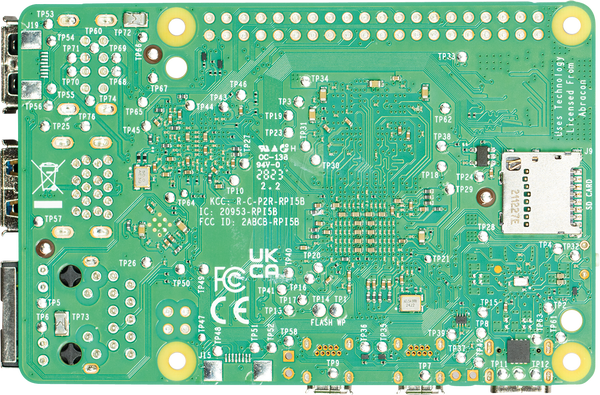

Board Pictures #
Hardware #
Specs
| SoC | Broadcom BCM2712 |
|---|---|
| CPU | Quad-core ARM Cortex-A76(up to 2.4GHz) with cryptography extensions, 512KB per-core L2 caches and a 2MB shared L3 cache |
| RAM | 4GB/8GB LPDDR4X-4267 SDRAM |
| Storage | N/a |
| GPU | VideoCore VII GPU, supporting OpenGL ES 3.1, Vulkan 1.2 |
| VPU | 4Kp60 HEVC decoder |
| NPU | N/a |
| I/O | Description |
|---|---|
| Wireless | Dual-band 802.11ac Wi-Fi® Bluetooth 5.0 / Bluetooth Low Energy (BLE) |
| Ethernet | On-board Gigabit Ethernet, with PoE+ support (requires separate PoE+ HAT) |
| USB | 2x USB-A 3.0, 2x USB-A 2.0 |
| Video | Output: Dual 4Kp60 HDMI® with HDR support |
| MicroSD | support up to SDR104 mode |
| Power | 5V/5A DC power via USB-C, with Power Delivery support |
| GPIO | Raspberry Pi standard 40-pin header |
| PCIe | 2.0x1 (3.0 mode possible) interface for fast peripherals (requires separate M.2 HAT or other adapter) |
| MIPI | 4-lane MIPI camera/display transceivers |
| RTC | powered from external battery |
