Radxa Orion O6

Radxa Orion O6 #

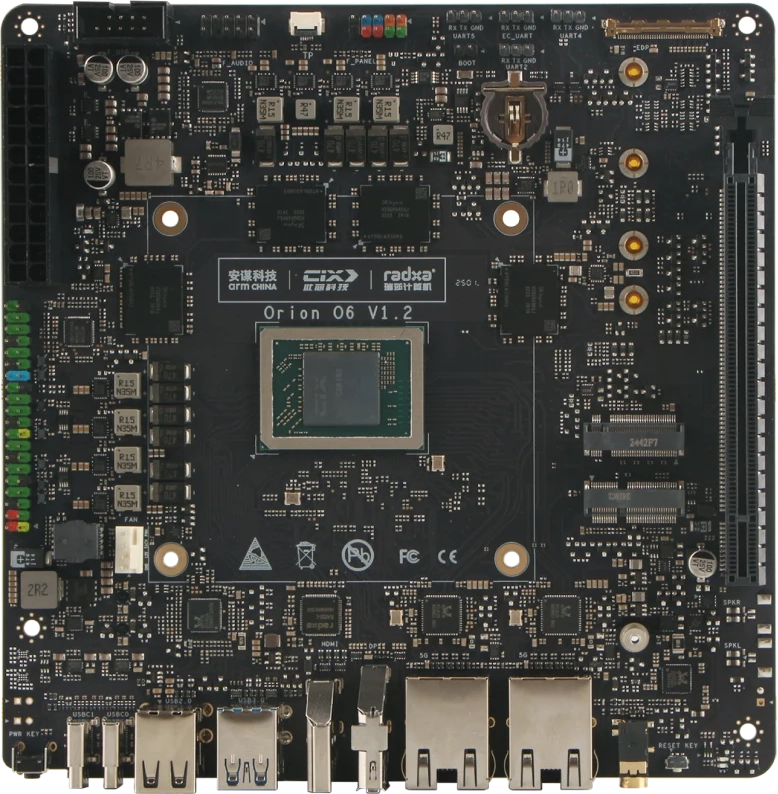

Board Pictures #

Hardware #

Specs
SoCCD8180 / P1
CPU4x Cortex®-A720 (Big cores) up to 2.8GHz
4x Cortex®‑A720 (Medium cores) up to 2.4GHz
4x Cortex®‑A520 (LITTLE cores) 1.8GHz
RAMLPDDR5 RAM
- 128bit memory bus
- 5500MT/s transfer speed
- Configurations: 4GB / 8GB / 16GB / 32GB / 64GB
GPUArm® Immortalis™ G720 MC10
- Hardware Ray‑Tracing enabled
- Vulkan® 1.3
- OpenGL® ES 3.2
- OpenCL® 3.0
VPU– 8K@60fps decoder AV1, H.265, H.264, VP9, VP8, H.263, MPEG‑4, MPEG‑2
- 8K@30fps encoder H.265, H.264, VP9, VP8
NPUNeural Processing Unit (NPU)
- Computing Power: 30 TOPs
- Precision Support: INT4 / INT8 / INT16 / FP16 / TF32

Interfaces #

I/ODescription
Wireless1x M.2 E Key Connector with PCIe Gen4 2-lane and USB support for Wi-Fi7 & BT Module
Ethernet2x 5 Gigabit Ethernet Ports
- Speeds: 10 / 100 / 1000 / 2500 / 5000Mbps
USB2x USB Type-C Ports
– Port 1: USB 3.2 Gen 2 (10Gbps) + Power Delivery
– Port 2: USB 3.2 Gen 2 (10Gbps) + DP Alt Mode (4K@60Hz) + Power Delivery
2x USB 3.2 HOST Type-A Ports(10Gbps)
2x USB 2.0 HOST Type-A Ports
2x USB 2.0 HOST via Front Panel Header
Video2x USB Type-C Ports
– Port 1: USB 3.2 Gen 2 (10Gbps) + Power Delivery
– Port 2: USB 3.2 Gen 2 (10Gbps) + DP Alt Mode (4K@60Hz) + Power Delivery
2x USB 3.2 HOST Type-A Ports(10Gbps)
2x USB 2.0 HOST Type-A Ports
2x USB 2.0 HOST via Front Panel Header
MicroSDn/a
Storage1x M.2 M Key Connector with PCIe Gen4 4-lane support for M.2 M Key 2280 NVMe SSD
Power1x 24-Pin ATX Power Supply Connector
- Standard Motherboard Power Input
- Compatible with ATX Power Supplies
1x USB Type-C Port with Power Delivery
GPIO40-pin header
PCIePCIe x16 Physical Slot with PCIe Gen4 8-lane support
- Supports graphics cards, AI accelerator and other PCIe devices
MIPI2x MIPI Camera Interfaces
– Configurable as 4-lane or 2-lane MIPI CSI each
RTCpowered from CR1220 battery

Available OS images #

  • Radxa official images
  • All UEFI based ARM images (with Kernel 6.6 and above)
