Radxa Dragon Q6A #

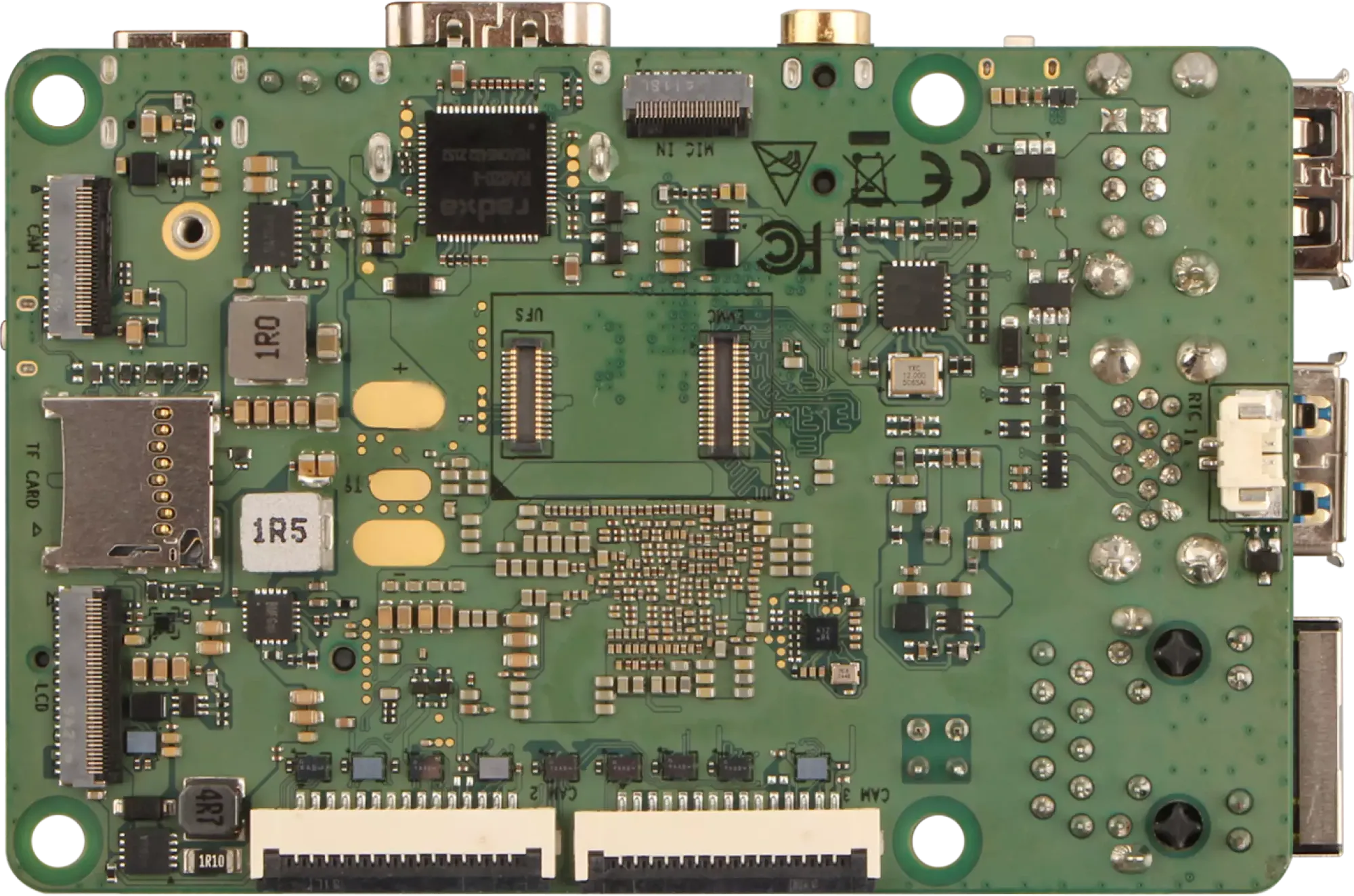

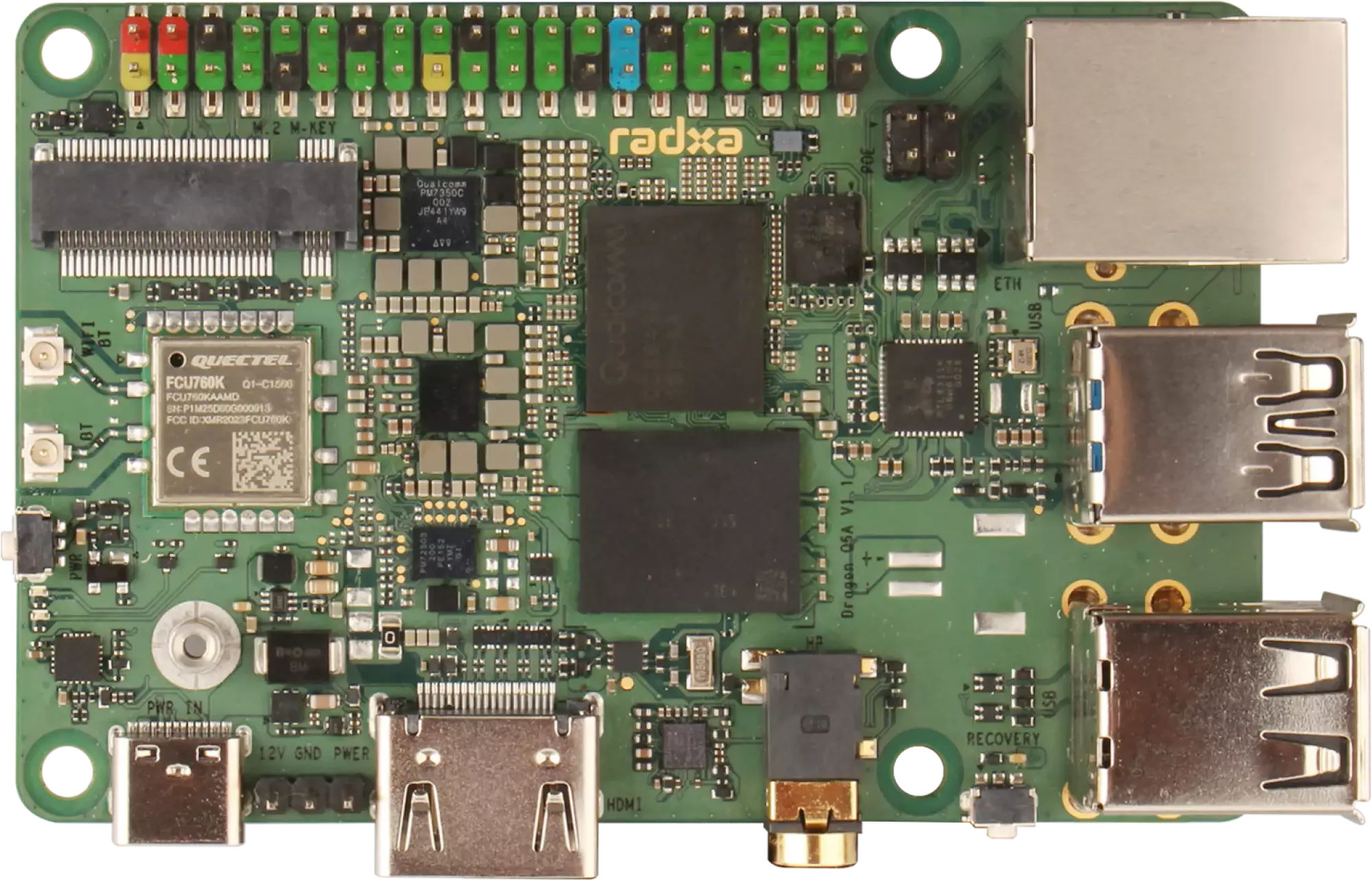

Board Pictures #
Hardware #
Specs
| SoC | Qualcomm QCS6490 |
|---|---|
| CPU | 1x Kryo Gold Plus @2.7GHz 3x Kryo Gold @2.4GHz 4x Kryo Silver @1.9GHz |
| RAM | LPDDR5 - Configurations: 4GB / 6GB / 8GB / 12GB / 16GB |
| GPU | Qualcomm® Adreno 643 - OpenGL ES 3.2 - Vulkan 1.3 - OpenCL 2.2 - DirectX 12 |
| AI | Hexagon DSP + Hexagon Tensor Accelerator - Combined AI computing power: up to 12 TOPS |
| VPU | 4K@60fps decoding (H.264/H.265/VP9) 4K@30fps encoding (H.264/H.265) |
Interfaces #
| I/O | Description |
|---|---|
| Wireless | Wi-Fi 6, Bluetooth 5.4 (requires external antenna) |
| Ethernet | 1x Gigabit Ethernet port (PoE support requires external PoE HAT) |
| USB | 1x USB 3.1 Type-A HOST / OTG 3x USB 2.0 Type-A HOST |
| Video | 1x HDMI port (up to 4K@60Hz) 1x 4-lane MIPI DSI |
| Camera | 1x 4-lane MIPI CSI 2x 2-lane MIPI CSI |
| Audio | 3.5mm 4-segment headphone jack (supports microphone input) Stereo output, can drive 32Ω headphones |
| Storage | Boot: 32MB QSPI Nor Flash Expandable: MicroSD card / eMMC module / UFS module / M.2 M Key 2230 NVMe SSD |
| Power | USB Type-C 12V power input External 12V pin power input PoE power supply (requires external PoE HAT) |
| GPIO | 40-Pin GPIO Header (UART, SPI, I2C, etc.) |
| Other | 1x 2-pin 1.25mm Fan Connector Power button, EDL button |
Available OS images #
- Radxa official images
- Armbian
Documentation / Links #
Benchmarks #
- GeekBench 6.4.0 Preview for Linux AArch64:
Single Core 1194, Multi Core 3334 - Tkaiser’s SBC-Bench
- sbc.compare results
