Rockchip RK3568

Rockchip RK3568 #

General Specifications #

Specs
SoCRockchip RK3568
CPUQuad-core ARM Cortex-A55 (up to 2GHz)
RAM32bit LPDDR4/4X/3
GPUMali-G52EE, compatible with OpenGL® ES 1.1/2.0/3.2, OpenCL™ 2.0 and Vulkan® 1.1
VPU4Kp60 H.264/H.265/VP9 decoder
1080p60 H.264/H.265 encoder
NPU1TOPs, supports INT8/INT16/FP16/BFP16

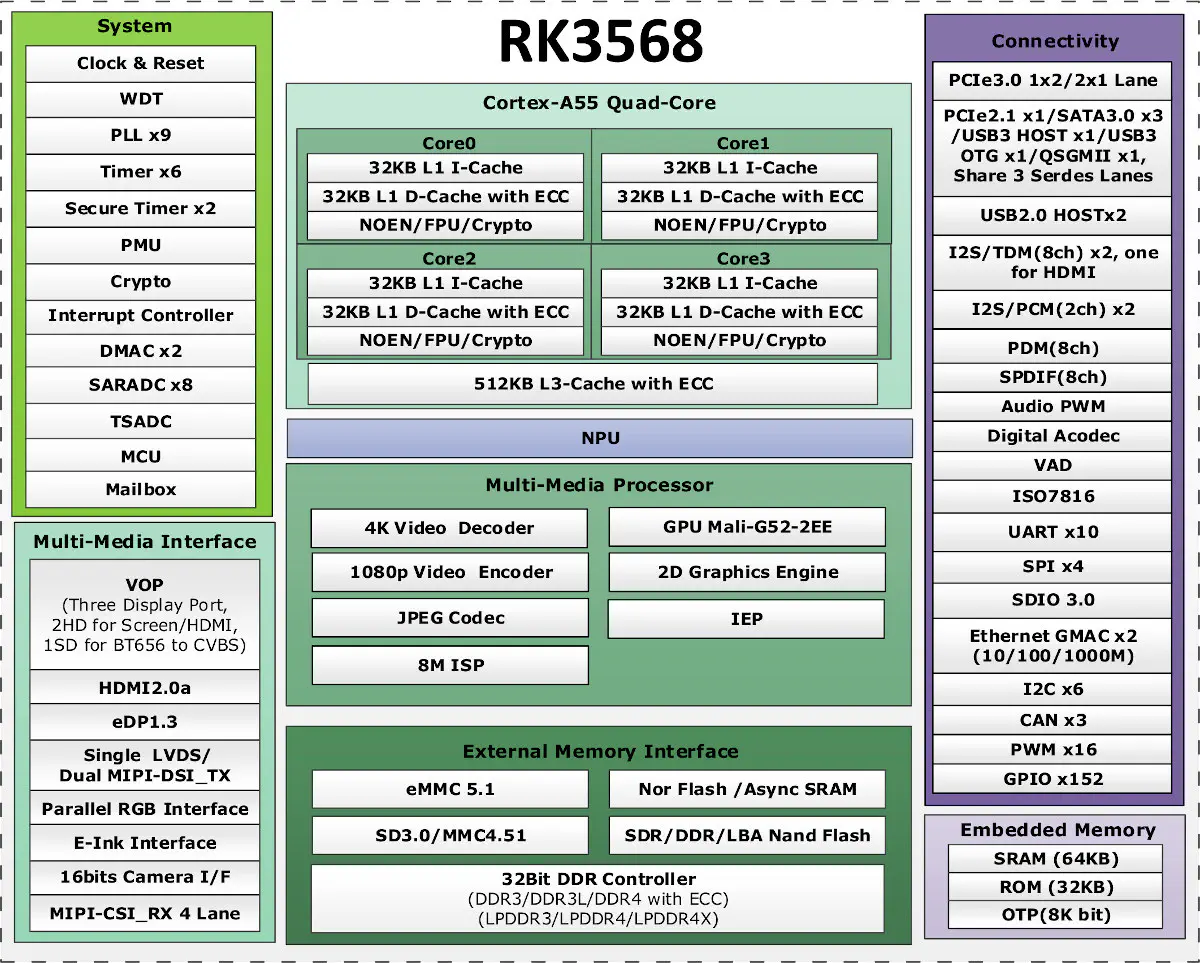

Block Diagram

RK3568 Block Diagram

Linux Support #

Vendor BSP #

  • Current Version (rkr5) based on: 6.1

  • Legacy: 5.10
    (versions do not compare to mainline)

Mainline kernel #

  • Fully supported

  • Works but not all features are implemented.

Variants #

  • RK3568J | Industrial Grade Version

Documentation #

  • Technical Reference Manual

Boards with RK3568 #

List of boards:
