Rockchip RK3588 #

General Specifications #

Specs
SoCRockchip RK3588
CPUOcta-core:
Quad-core ARM Cortex-A76(up to 2.4GHz)
Quad-core ARM Cortex-A55 (up to 1.8GHz)
RAMDual Channel LPDDR4X/5
GPUMali-G610 MP4, compatible with OpenGLES 1.1, 2.0, and 3.2, OpenCL up to 2.2 and Vulkan1.2
VPU8K@60fps H.265 and VP9 decoder
8K@30fps H.264 decoder
4K@60fps AV1 decoder
8K@30fps H.264 and H.265 encoder
NPU6TOPs, supports INT4/INT8/INT16/FP16

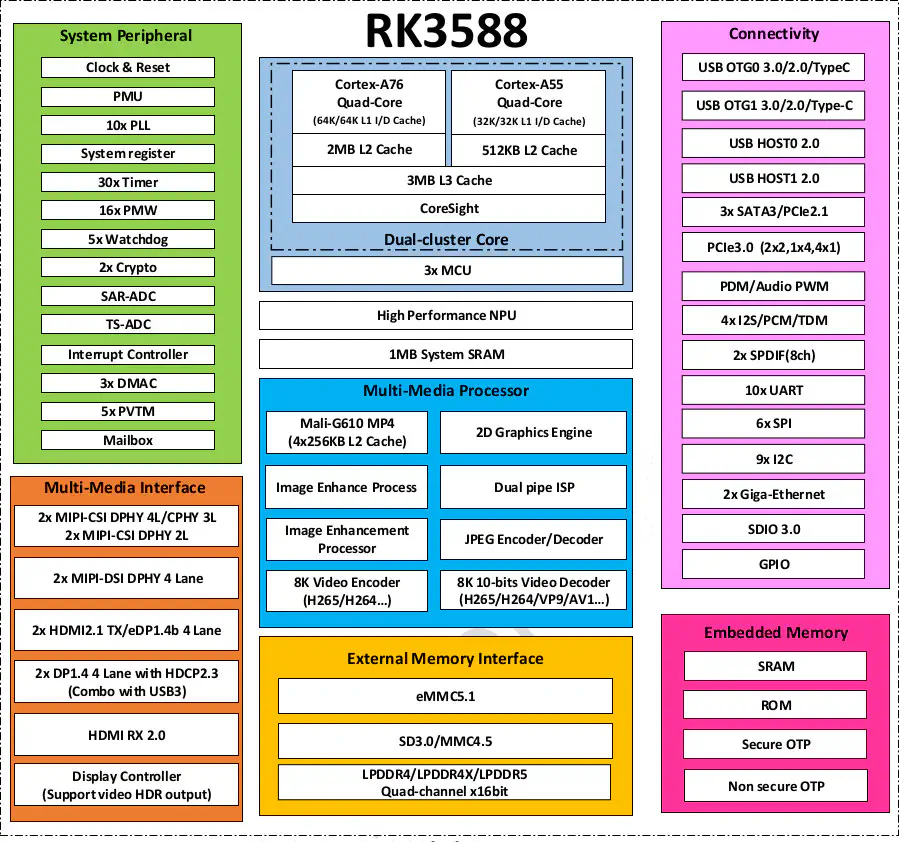

Block Diagram

RK3588 Block Diagram

Linux Support #

Vendor BSP #

  • Current Version (rkr5) based on: 6.1

  • Legacy: 5.10
    (versions do not compare to mainline)

Mainline kernel #

  • Fully supported
  • Works but not all features are implemented.

See Mainline Status

Variants #

Documentation #

  • Technical Reference Manual

Boards with RK3588 #

List of boards:
